PSM200

The PSM200 series of AC/DC medical power supplies provides 200 Watts of continuous output power in an open frame constructed design. All models have a single output, 90~264VAC full range input, and active PFC.  These supplies are designed to comply with UL60601-1, CSA C22.2-No. 60601-1, EN60601-1, and IEC EN60601-1 3.1 Edition requirements. All models are protected against short circuit, over load, and over voltage conditions. This series is 100% hi-pot and burn-in tested.

● Active PFC ● Single Output ● High Reliability ● RoHS Compliant ● Medical Approved ● 100% Hi-pot Tested ● 100% Burn-in Tested ● 90~264VAC Input Range ● Safety Approvals, EMC Compliance ● Short Circuit, Over Load, and Over Voltage Protected
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSM200A3-1Y12 Input Voltage: 90~264 Output Voltage: 12 Output Current: 16.66 A Output Power (W): 200 No. Outputs: S Case: U-Chassis Size: 6.94" x 3.74" x 1.97" Get a Quote
PSM200A3-1Y16 Input Voltage: 90~264 Output Voltage: 16 Output Current: 12.5 A Output Power (W): 200 No. Outputs: S Case: U-Chassis Size: 6.94" x 3.74" x 1.97" Get a Quote
PSM200A3-1Y19 Input Voltage: 90~264 Output Voltage: 19 Output Current: 10.53 A Output Power (W): 200 No. Outputs: S Case: U-Chassis Size: 6.94" x 3.74" x 1.97" Get a Quote
PSM200A3-1Y20 Input Voltage: 90~264 Output Voltage: 20 Output Current: 10A Output Power (W): 200 No. Outputs: S Case: U-Chassis Size: 6.94" x 3.74" x 1.97" Get a Quote
PSM200A3-1Y24 Input Voltage: 90~264 Output Voltage: 24 Output Current: 8.33 A Output Power (W): 200 No. Outputs: S Case: U-Chassis Size: 6.94" x 3.74" x 1.97" Get a Quote
PSM200A3-1Y36 Input Voltage: 90~264 Output Voltage: 36 Output Current: 5.555 A Output Power (W): 200 No. Outputs: S Case: U-Chassis Size: 6.94" x 3.74" x 1.97" Get a Quote
PSM200A3-1Y48 Input Voltage: 90~264 Output Voltage: 48 Output Current: 4.166 A Output Power (W): 200 No. Outputs: S Case: U-Chassis Size: 6.94" x 3.74" x 1.97" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: Yes
Input Frequency: 47-63 Hz
Output
Output Voltage: 12, 16, 19, 20, 24, 36, 48
Output Current: 4.166A, 5.555A, 8.33A, 10A, 10.53A, 12.5.A, 16.66A
Output Power (Watts): 200
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: latch, AC recycle
General
Efficiency: 87%
Environmental
Operating Temperature: 0 to 40°C
Storage Temperature: -10 to 85°C
Physical
Weight: 1.28 lbs

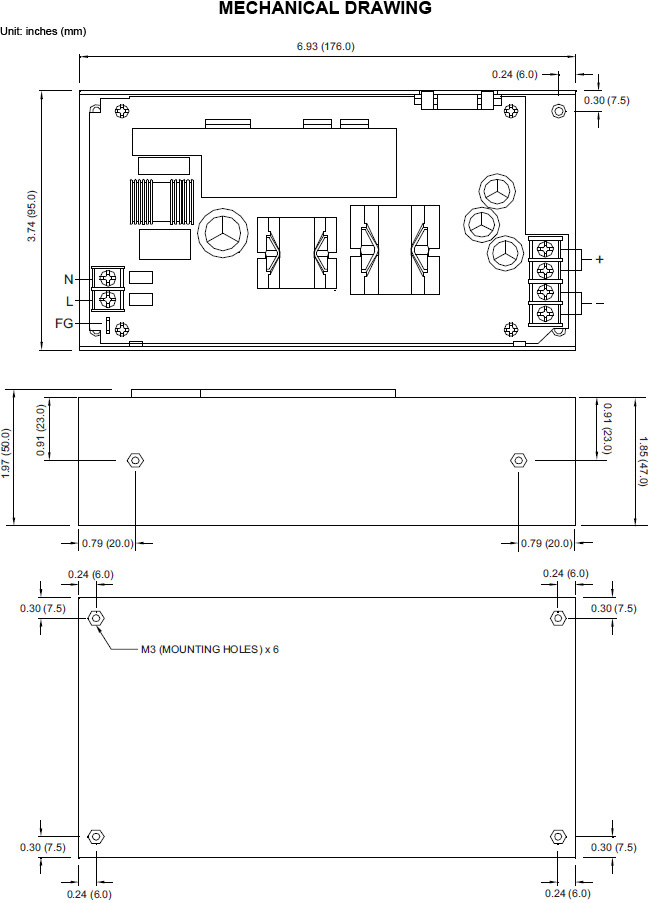

Dimensions: 6.94" x 3.74" x 1.97" (176 x 95 x 50 mm)
Notes & safety
Notes: 1. Ripple & Noise is measured at 20MHz bandwidth with a tantalum 10µF in parallel with a 0.1µF ceramic capacitor.
2. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60601-1 3.1 Edition, CSA C22.2-No. 60601-1 3.1 Edition, EN60601-1 3.1 Edition, IEC EN60601-1 3.1 Edition
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60601-1
