PSLS10
This PSLS10 series of AC/DC converters offers up to 10 watts of output power in either a SIP model or SIP model with a 90º bend. This series consists of single output models with an ultra-wide input voltage range of 85~305VAC/100~430VDC. Each model in this series has low power consumption, high efficiency and high power density, as well as over current, over voltage, and short circuit protection. This series is designed to meet IEC/EN/UL60335 standards and has IEC/EN/UL62368 safety approvals.
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLS10-03S (-F) | Input Voltage: 85~305 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 6.6 | No. Outputs: S | Case: Through Hole | Size: 1.75" x 0.87" x 0.59" | Get a Quote |
| PSLS10-05S (-F) | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.75" x 0.87" x 0.59" | Get a Quote |
| PSLS10-09S (-F) | Input Voltage: 85~305 | Output Voltage: 9 | Output Current: 1100mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.75" x 0.87" x 0.59" | Get a Quote |
| PSLS10-12S (-F) | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.75" x 0.87" x 0.59" | Get a Quote |
| PSLS10-15S (-F) | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 670mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.75" x 0.87" x 0.59" | Get a Quote |
| PSLS10-24S (-F) | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 420mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole | Size: 1.75" x 0.87" x 0.59" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| Input Frequency: | 47~63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | 3.3V Models: ±1.5% Typ. Other Models: ±1% Typ. |
| Output Current: | 420mA, 670mA, 830mA, 1100mA, 2000mA |
| Output Power (Watts): | 6.6, 10 |
| Short Circuit Protection: | Continuous, Self-Recovery |
| Over Voltage Protection: | 3.3VDC/5VDC Output: ≤9VDC 9VDC Output: ≤15VDC 12VDC/15VDC Output: ≤25VDC 24VDC Output: ≤35VDC |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to +85ºC |
| Storage Temperature: | -40 to +105°C |
| Physical | |
| Weight: | 0.39oz (11g) |

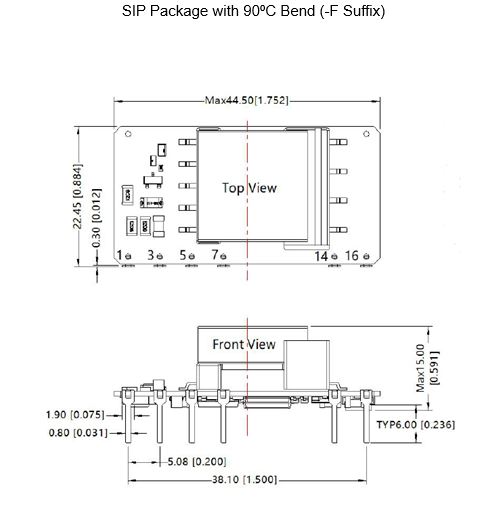

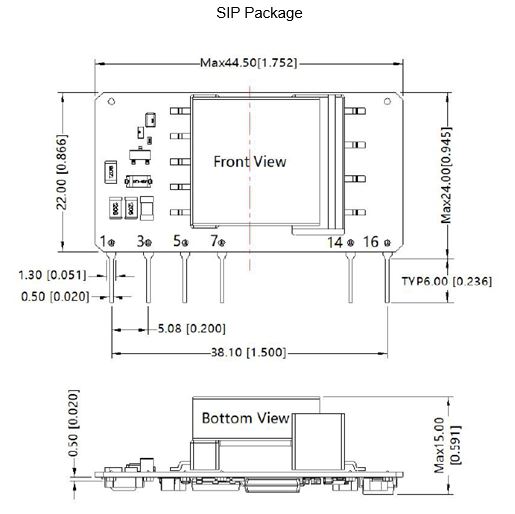

| Dimensions: | SIP Model: 1.75" x 0.87" x 0.59" (44.5mm x 24mm x 15mm) SIP Model with 90º Bend: 1.75" x 0.88" x 0.59" (44.5mm x 22.45mm x 15mm) |
| Notes & safety | |
| Notes: | 1. Add -F to model name to indicate 90º corner model. 2. If product is being used in a severe vibration application, it needs to be glued and fixed. 3. Ripple & Noise are measured by “parallel cable” method. 4. This product is Listed to applicable standards and requirements by UL. 5. External electrolytic capacitors are required to modules. For more details, refer to typical applications. 6. This part is open frame, at least 6.4mm safety distance between the primary and secondary external components of the module is needed to meet safety requirement. 7. In order to improve efficiency at light load, audible noise will be generated, but it will not affect the product’s reliability and performance. 8. Product customization available. 9. Products shall be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL62368, IEC/EN/UL60335 |
| RoHS Compliance: | Yes |
