PSLRB6

The PSLRB6 series of AC/DC power supplies offers up to 6 watts of output power in a compact 2.07” x 1.08” x 0.91” through hole package. This series consists of single output models with a wide 85~530VAC (120~750VDC) input voltage range. Each model features low leakage current, low standby power, and over voltage, over load, and short circuit protection. The PSLRB6 series is RoHS and REACH compliant and has EN/UL 61010-1 and IEC/EN/UL 62368-1 (OVC III) pending safety approvals.

• 85~530VAC (120~750VDC) Input Range • Low Leakage Current • Low Standby Power • RoHS & REACH Compliant • Over Voltage, Over Load, and Short Circuit Protection • 4000VAC Reinforced Insulation • EN/UL 61010-1 and IEC/EN/UL 62368-1 (OVC III) Safety Approvals (Pending)
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSLRB6-5S Input Voltage: 85-530 Output Voltage: 5 Output Current: 1200mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 2.07" x 1.08" x 0.91" Get a Quote
PSLRB6-12S Input Voltage: 85-530 Output Voltage: 12 Output Current: 500mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 2.07" x 1.08" x 0.91" Get a Quote
PSLRB6-15S Input Voltage: 85-530 Output Voltage: 15 Output Current: 400mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 2.07" x 1.08" x 0.91" Get a Quote
PSLRB6-24S Input Voltage: 85-530 Output Voltage: 24 Output Current: 250mA Output Power (W): 6 No. Outputs: S Case: Through Hole Size: 2.07" x 1.08" x 0.91" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100/480
Input Voltage Range: 85~530
Input Frequency: 47 - 63Hz
Output
Output Voltage: 5, 12, 15, 24
Voltage Accuracy: ±1%
Output Current: 250mA, 400mA, 500mA, 1200mA
Output Power (Watts): 6
Short Circuit Protection: Continuous, Automatic Recovery
Over Voltage Protection: 115~140%
General
Efficiency: Up to 75%
Isolation: 4000VAC
Environmental
Operating Temperature: -40 to +85°C
Storage Temperature: -40 to 85°C
Physical
Weight: 2.12oz (60g)

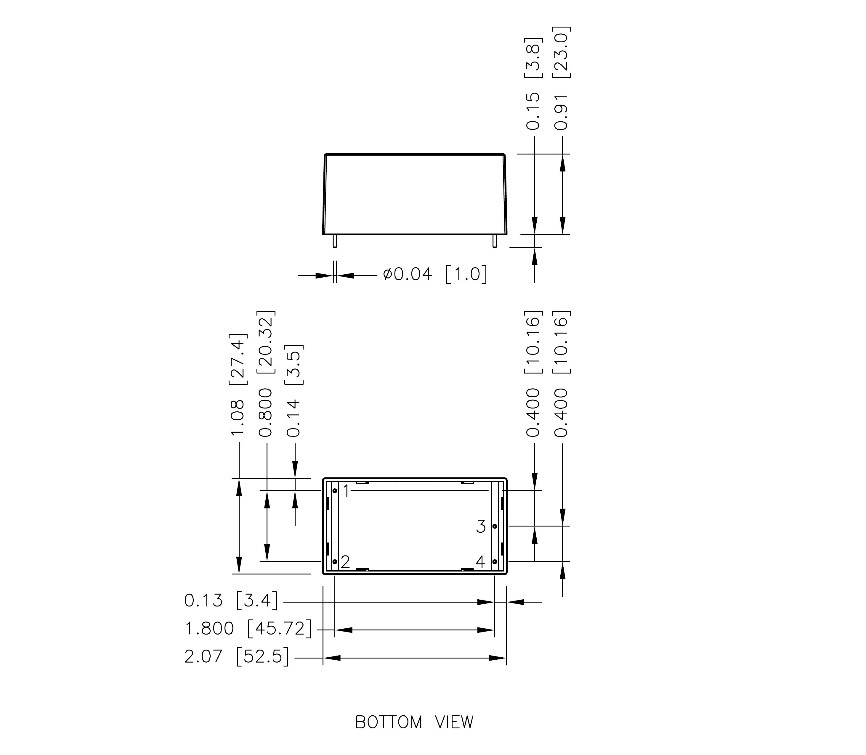

Dimensions: 2.07in x 1.08in x 0.91in (52.5mm x 27.4mm x 23mm)
Notes & safety
Notes: Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN/UL 61010-1, IEC/EN/UL 62368-1 (OVC III)
RoHS Compliance: Yes
