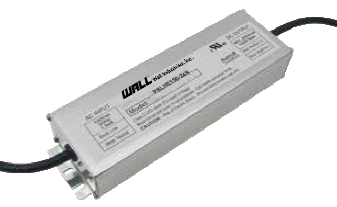

PSLHE150
The PSLHE150 series of constant voltage LED drivers offers up to 150 watts of output power in an 8.98” x 2.68” x 1.52” package. This series consists of single output models with an input voltage range of 120~277VAC. Each model features IP67 design, ultra-high efficiency, as well as over voltage, over current, over temperature, and short circuit protection. This series is RoHS compliant and has UL8750 and UL879 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLHE150-12S | Input Voltage: 120~277 | Output Voltage: 12 | Output Current: 12.5A | Output Power (W): 150 | No. Outputs: S | Case: LED Driver | Size: 8.98" x 2.68" x 1.52" | Get a Quote |
| PSLHE150-15S | Input Voltage: 120~277 | Output Voltage: 15 | Output Current: 10A | Output Power (W): 150 | No. Outputs: S | Case: LED Driver | Size: 8.98" x 2.68" x 1.52" | Get a Quote |
| PSLHE150-18S | Input Voltage: 120~277 | Output Voltage: 18 | Output Current: 8.33A | Output Power (W): 150 | No. Outputs: S | Case: LED Driver | Size: 8.98" x 2.68" x 1.52" | Get a Quote |
| PSLHE150-24S | Input Voltage: 120~277 | Output Voltage: 24 | Output Current: 6.25A | Output Power (W): 150 | No. Outputs: S | Case: LED Driver | Size: 8.98" x 2.68" x 1.52" | Get a Quote |
| PSLHE150-30S | Input Voltage: 120~277 | Output Voltage: 30 | Output Current: 5A | Output Power (W): 150 | No. Outputs: S | Case: LED Driver | Size: 8.98" x 2.68" x 1.52" | Get a Quote |
| PSLHE150-36S | Input Voltage: 120~277 | Output Voltage: 36 | Output Current: 4.15A | Output Power (W): 150 | No. Outputs: S | Case: LED Driver | Size: 8.98" x 2.68" x 1.52" | Get a Quote |
| PSLHE150-48S | Input Voltage: 120~277 | Output Voltage: 48 | Output Current: 3.12A | Output Power (W): 150 | No. Outputs: S | Case: LED Driver | Size: 8.98" x 2.68" x 1.52" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 240 |
| Input Voltage Range: | 120~277 |
| PFC: | 0.9 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 12, 15, 18, 24, 30, 36, 48 |
| Voltage Accuracy: | ±3% |
| Output Current: | 3.12A, 4.15A, 5A, 6.25A, 8.33A, 10A, 12.5A |
| Output Power (Watts): | 150 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 92% |
| Environmental | |
| Operating Temperature: | -40 to 60ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 2.2lbs (1kg) |
| Dimensions: | 8.98in x 2.68in x 1.52in (228.1mm x 68mm x 38.7mm) |
| Case Material: | Aluminum |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL8750 UL879 (For PSLHE150-24S) |
| RoHS Compliance: | Yes |
