PSLHE100
The PSLHE100 series of constant voltage LED drivers offers up to 100 watts of output power in a 9.65” x 1.90” x 1.50” package. This series consists of single output models with an input voltage range of 120~277VAC. Each model features IP67 design for wet locations, high efficiency, and over voltage, over current, over temperature, and short circuit protections. This model also has pending UL8750 approvals and is RoHS compliant.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSLHE100-12S | Input Voltage: 120~277 | Output Voltage: 12 | Output Current: 8.33A | Output Power (W): 100 | No. Outputs: S | Case: LED Driver | Size: 9.65" x 1.9" x 1.5" | Get a Quote |
| PSLHE100-15S | Input Voltage: 120~277 | Output Voltage: 15 | Output Current: 6.60A | Output Power (W): 100 | No. Outputs: S | Case: LED Driver | Size: 9.65" x 1.9" x 1.5" | Get a Quote |
| PSLHE100-24S | Input Voltage: 120~277 | Output Voltage: 24 | Output Current: 4.15A | Output Power (W): 100 | No. Outputs: S | Case: LED Driver | Size: 9.65" x 1.9" x 1.5" | Get a Quote |
| PSLHE100-36S | Input Voltage: 120~277 | Output Voltage: 36 | Output Current: 2.75A | Output Power (W): 100 | No. Outputs: S | Case: LED Driver | Size: 9.65" x 1.9" x 1.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 240 |
| Input Voltage Range: | 120~277 |
| PFC: | 0.9 |
| Input Frequency: | 50/60Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 36 |
| Voltage Accuracy: | ±5% |
| Output Current: | 2.75A, 4.15A, 6.60A, 8.33A |
| Output Power (Watts): | 100 |
| Short Circuit Protection: | Hiccup, Automatic Recovery |
| Over Voltage Protection: | Hiccup, Automatic Recovery |
| Thermal Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 88% |
| Environmental | |
| Operating Temperature: | -40 to 60ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 24.69oz (700g) |

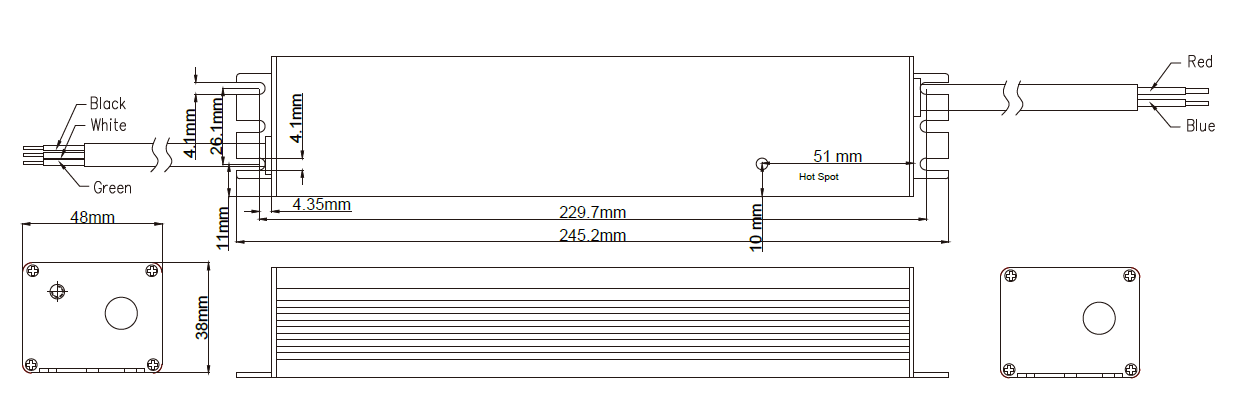

| Dimensions: | 9.65in x 1.90in x 1.50in (245.2mm x 48mm x 38mm) |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL 8750 (Pending for 15V), EN61347-1, EN61347-2-13, ANSI C63.4: 2009 |
| RoHS Compliance: | Yes |
