PSLHA40

The PSLHA40 series if AC/DC converters offers up to 40 watts of output power in either a PCB mount, chassis mount, or DIN rail mount package. This series consists of regulated single output models with a wide input voltage range of 85~264VAC (100~370VDC). Features of this series include high reliability, high efficiency, and low ripple and noise. This series also has short circuit, over current, and over voltage protection, is RoHS compliant, and meets IEC62368, EN62368, and UL62368 safety standards.

• Wide Universal 85~264VAC Input or 100-370VDC Input Range • High I/O Isolation Test Voltage up to 4000VAC • Regulated Output • Low Ripple and Noise • High Efficiency & Reliability • Short Circuit, Over Current, and Over Voltage Protection • Plastic Case meets UL94V-0 Flammability • RoHS Compliant • Meets EMI CISPR32/EN55032 Class B • IEC62368, EN62368, and UL62368 Safety Standards
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSLHA40-03SA1 Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 8000mA Output Power (W): 26.4 No. Outputs: S Case: PCB Mount Size: 3.5" x 2.5" x 0.98" Get a Quote
PSLHA40-03SA2 Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 8000mA Output Power (W): 26.4 No. Outputs: S Case: Chassis Mount Size: 5.32" x 2.76" x 1.32" Get a Quote
PSLHA40-03SA4 Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 8000mA Output Power (W): 26.4 No. Outputs: S Case: DIN Rail Size: 5.39" x 2.76" x 1.36" Get a Quote
PSLHA40-05SA1 Input Voltage: 85~264 Output Voltage: 5 Output Current: 8000mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Size: 3.5" x 2.5" x 0.98" Get a Quote
PSLHA40-12SA1 Input Voltage: 85~264 Output Voltage: 12 Output Current: 3330mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Size: 3.5" x 2.5" x 0.98" Get a Quote
PSLHA40-15SA1 Input Voltage: 85~264 Output Voltage: 15 Output Current: 2660mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Size: 3.5" x 2.5" x 0.98" Get a Quote
PSLHA40-24SA1 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1670mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Size: 3.5" x 2.5" x 0.98" Get a Quote
PSLHA40-48SA1 Input Voltage: 85~264 Output Voltage: 48 Output Current: 830mA Output Power (W): 40 No. Outputs: S Case: PCB Mount Size: 3.5" x 2.5" x 0.98" Get a Quote
PSLHA40-05SA2 Input Voltage: 85~264 Output Voltage: 5 Output Current: 8000mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Size: 5.32" x 2.76" x 1.32" Get a Quote
PSLHA40-12SA2 Input Voltage: 85~264 Output Voltage: 12 Output Current: 3330mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Size: 5.32" x 2.76" x 1.32" Get a Quote
PSLHA40-15SA2 Input Voltage: 85~264 Output Voltage: 15 Output Current: 2660mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Size: 5.32" x 2.76" x 1.32" Get a Quote
PSLHA40-24SA2 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1670mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Size: 5.32" x 2.76" x 1.32" Get a Quote
PSLHA40-48SA2 Input Voltage: 85~264 Output Voltage: 48 Output Current: 830mA Output Power (W): 40 No. Outputs: S Case: Chassis Mount Size: 5.32" x 2.76" x 1.32" Get a Quote
PSLHA40-05SA4 Input Voltage: 85~264 Output Voltage: 5 Output Current: 8000mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Size: 5.39" x 2.76" x 1.36" Get a Quote
PSLHA40-12SA4 Input Voltage: 85~264 Output Voltage: 12 Output Current: 3330mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Size: 5.39" x 2.76" x 1.36" Get a Quote
PSLHA40-15SA4 Input Voltage: 85~264 Output Voltage: 15 Output Current: 2660mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Size: 5.39" x 2.76" x 1.36" Get a Quote
PSLHA40-24SA4 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1670mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Size: 5.39" x 2.76" x 1.36" Get a Quote
PSLHA40-48SA4 Input Voltage: 85~264 Output Voltage: 48 Output Current: 830mA Output Power (W): 40 No. Outputs: S Case: DIN Rail Size: 5.39" x 2.76" x 1.36" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47~63
Output
Output Voltage: 3.3, 5, 12, 15, 24, 48
Voltage Accuracy: ±2%
Output Current: 830mA, 1670mA, 2660mA, 3330mA, 8000mA
Output Power (Watts): 26.4, 40
Short Circuit Protection: Hiccup, Continuous, Self-Recovery
Over Voltage Protection: 3.3V Output: 5.5V
5V Output: 9V
12V Output: 16V
15V Output: 24V
24V Output: 35V
48V Output: 56V
General
Efficiency: Up to 84%
Isolation: 4000VAC
Environmental
Operating Temperature: -40 to +70°C
Storage Temperature: -40 to +85°C
Physical
Weight: PCB Mount: 8.46oz (215g)
Chassis Mount: 11.81oz (300g)
DIN Rail: 14.17oz (360g)

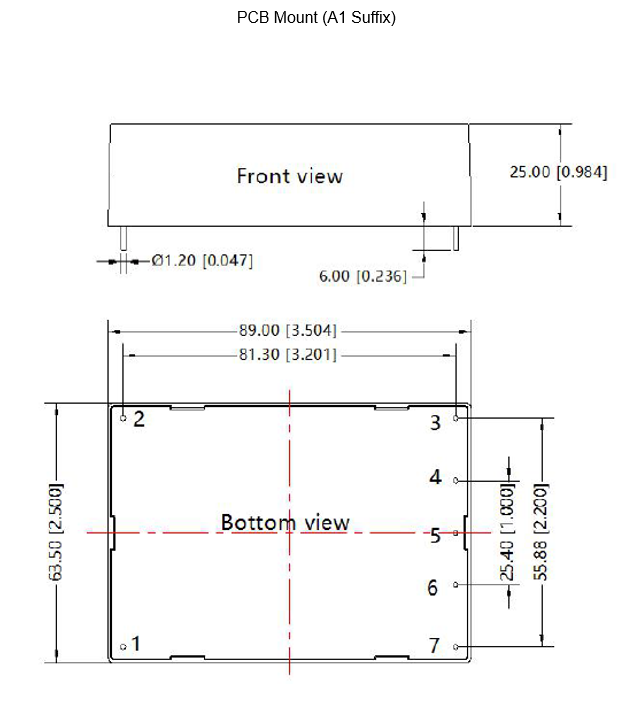

Dimensions: PCB Mount: 3.5in x 2.5in x 0.98in (89mm x 63.5mm x 25mm)

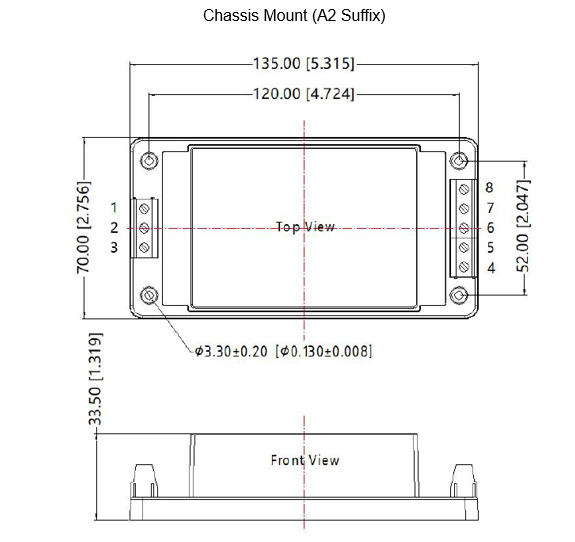

Chassis Mount: 5.32in x 2.76in x 1.32in (135mm x 70mm x 33.5mm)

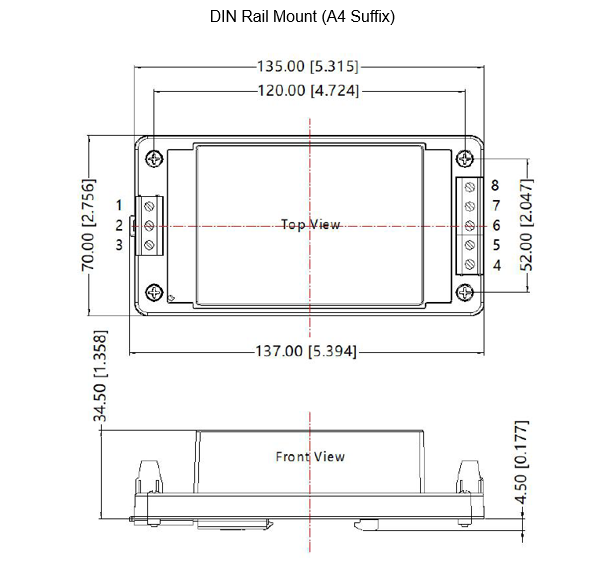

DIN Rail: 5.39in x 2.76in x 1.36in (137mm x 70mm x 39mm)
Case Material: Flame and Heat Resistant Black Plastic
Notes & safety
Notes: 1. “X” in model number indicates package mount type. “X” can be “A1” for PCB Mount, “A2” for Chassis Mount, or “A4” for DIN Rail Mount.
2. Ripple and noise are measured by “parallel cable” method. Contact factory for more information.
3. Product customization is available, please contact factory for more information
4. Our products shall be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
5. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC62368/EN62368/UL62368
RoHS Compliance: Yes
