PSHF40W

The PSHF40W series of AC/DC power supplies offers 40W of output power in a 5.08” x 3.86” x 1.57” enclosed case. This series consists of 5, 12, 15, 24, and 48VDC single output models with a universal input voltage range of 85~264VAC (120~370VDC). These supplies have a ±10% output adjustment range and are protected against short circuit, over load, and over voltage conditions. This series is RoHS compliant and has UL60950, GB4943, and EN60950 safety approvals.

• RoHS Compliant • ±10% Voltage Adjustment Range • Free Air Convection • 85~264VAC (120~370VDC) Input Voltage Range • High Reliability • Single Outputs • 5.08” x 3.86” x 1.57” Enclosed Case • 40W Output Power • 100% Full Load Burn-in Tested • Short Circuit, Over Load, Over Voltage Protection • UL60950, GB4943, and EN60950 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSHF40W-SL-5 Input Voltage: 85~264 Output Voltage: 5 Output Current: 8.0A Output Power (W): 40 No. Outputs: S Case: Enclosed Case Size: 5.08" x 3.86" x 1.57" Get a Quote
PSHF40W-SL-12 Input Voltage: 85~264 Output Voltage: 12 Output Current: 3.5A Output Power (W): 42 No. Outputs: S Case: Enclosed Case Size: 5.08" x 3.86" x 1.57" Get a Quote
PSHF40W-SL-15 Input Voltage: 85~264 Output Voltage: 15 Output Current: 2.8A Output Power (W): 42 No. Outputs: S Case: Enclosed Case Size: 5.08" x 3.86" x 1.57" Get a Quote
PSHF40W-SL-24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1.8A Output Power (W): 43.2 No. Outputs: S Case: Enclosed Case Size: 5.08" x 3.86" x 1.57" Get a Quote
PSHF40W-SL-48 Input Voltage: 85~264 Output Voltage: 48 Output Current: 0.9A Output Power (W): 43.2 No. Outputs: S Case: Enclosed Case Size: 5.08" x 3.86" x 1.57" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47 - 63Hz
Output
Output Voltage: 5, 12, 15, 24, 48
Output Current: 8.0A, 3.5A, 2.8A, 1.8A, 0.9A
Output Power (Watts): 40, 42, 43.2
Output Trim/Adjustability: ±10%
Short Circuit Protection: Yes
Over Voltage Protection: 115-150%
General
Efficiency: Up to 80%
Isolation: 3000VAC
Environmental
Operating Temperature: -10 to 50°C
Storage Temperature: -20 to 85°C
Physical
Weight: 12.7oz (360g)

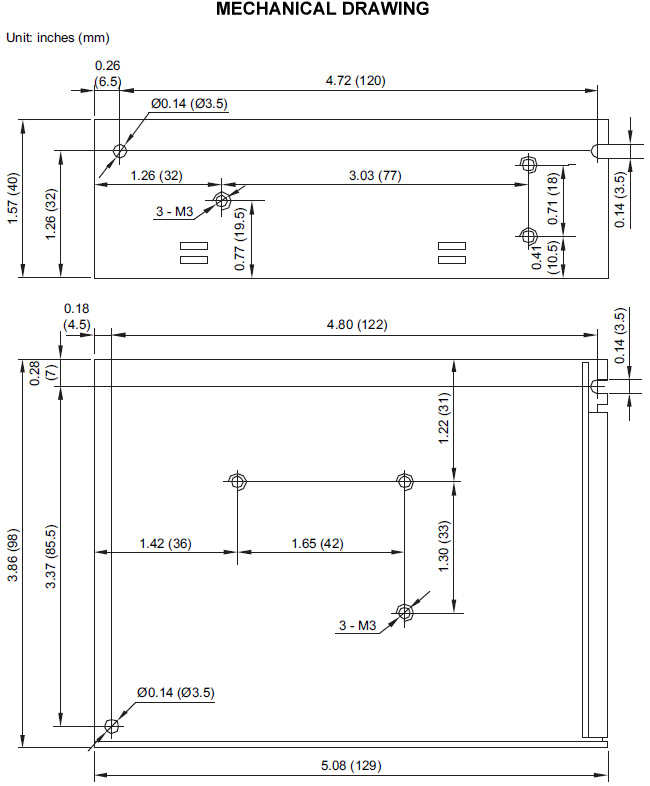

Dimensions: 5.08" x 3.86" x 1.57" (120 x 98 x 40 mm)
Notes & safety
Notes: (1) This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950, EN60950, GB4943
RoHS Compliance: Yes
