PSHF320W
The PSHF320W series of AC/DC power supplies offers up to 322W of output power in a 8.46” x 4.53” x 1.97” enclosed case. This series consists of single output models with a universal input voltage range of 85~264VAC (120~370VDC). Some features include built-in fan speed control, power factor > 0.98 at 115VAC, and ±10% output adjustment range. These supplies are also protected against short circuit, over current, over voltage, and over temperature conditions. This series is RoHS compliant and has UL60950, EN60950, GB4943, and CE approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHF320W-SC-13.5 | Input Voltage: 85~264 | Output Voltage: 13.5 | Output Current: 22A | Output Power (W): 297 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| PSHF320W-SC-5 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 60A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| PSHF320W-SC-7.5 | Input Voltage: 85~264 | Output Voltage: 7.5 | Output Current: 40A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| PSHF320W-SC-12 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 25A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| PSHF320W-SC-15 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 20A | Output Power (W): 300 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| PSHF320W-SC-24 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 13A | Output Power (W): 312 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| PSHF320W-SC-27 | Input Voltage: 85~264 | Output Voltage: 27 | Output Current: 11.7A | Output Power (W): 316 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| PSHF320W-SC-48 | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 6.7A | Output Power (W): 321.6 | No. Outputs: S | Case: Enclosed with Fan | Size: 8.46" x 4.53" x 1.97" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| PFC: | PF > 0.98 at 115VACPF > 0.95 at 230VAC |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5, 7.5, 12, 13.5, 15, 24, 27, 48 |
| Output Current: | 60A, 40A, 25A, 22A, 20A, 20A, 13A, 11.7A, 6.7A |
| Output Power (Watts): | 297, 300, 312, 316, 321.6 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 2.34 lbs (1060g) |

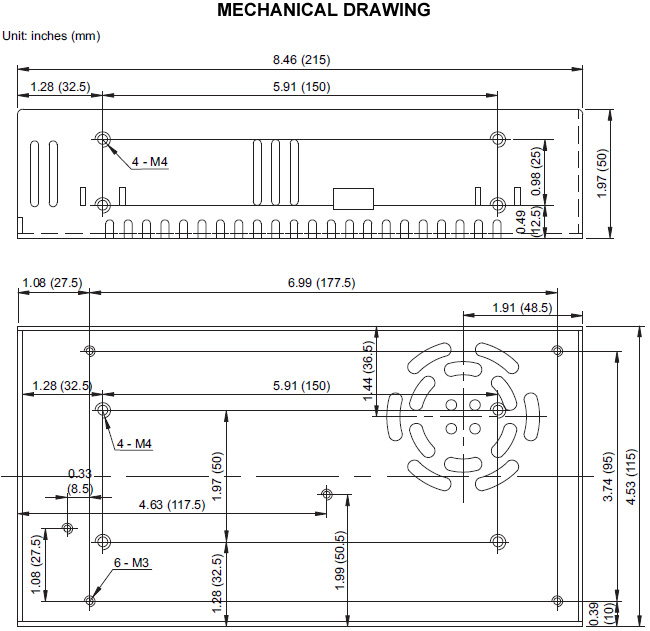

| Dimensions: | 8.46" x 4.53" x 1.97" (215 x 115 x 50) |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950, EN60950, GB4943, CE |
| RoHS Compliance: | Yes |
