PSHF25W

The PSHF25W series of AC/DC power supplies offers 25W of output power in a 3.88” x 3.23” x 1.38” enclosed case. This series consists of 3.3, 5, 12, 15, 24, and 48VDC single output models with a universal input voltage range of 85~264VAC (120~370VDC). These supplies have a ±10% output adjustment range and are protected against short circuit, over load, and over voltage conditions. This series is RoHS compliant and has UL60950, GB4943, and EN60950 safety approvals.

• RoHS Compliant • ±10% Voltage Adjustment Range • Free Air Convection • 85~264VAC (120~370VDC) Input Voltage Range • High Reliability • Single Outputs • 3.88” x 3.23” x 1.38” Enclosed Case • 25W Output Power • 100% Full Load Burn-in Tested • Short Circuit, Over Load, Over Voltage Protection • UL60950, GB4943, and EN60950 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSHF25W-SL-3.3 Input Voltage: 85~264 Output Voltage: 3.3 Output Current: 6A Output Power (W): 20 No. Outputs: S Case: Enclosed Case Get a Quote
PSHF25W-SL-5 Input Voltage: 85~264 Output Voltage: 5 Output Current: 5A Output Power (W): 25 No. Outputs: S Case: Enclosed Case Get a Quote
PSHF25W-SL-12 Input Voltage: 85~264 Output Voltage: 12 Output Current: 2.1A Output Power (W): 25.2 No. Outputs: S Case: Enclosed Case Get a Quote
PSHF25W-SL-15 Input Voltage: 85~264 Output Voltage: 15 Output Current: 1.7A Output Power (W): 25.5 No. Outputs: S Case: Enclosed Case Get a Quote
PSHF25W-SL-24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 1.1A Output Power (W): 26.4 No. Outputs: S Case: Enclosed Case Get a Quote
PSHF25W-SL-48 Input Voltage: 85~264 Output Voltage: 48 Output Current: 0.57A Output Power (W): 27.4 No. Outputs: S Case: Enclosed Case Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
Input Frequency: 47 - 63Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, 48
Output Current: 6A, 5A, 2.1A, 1.7A, 1.1A, 0.57A
Output Power (Watts): 20, 25, 25.2, 25.5, 26.4, 27.4
Output Trim/Adjustability: ±10%
Short Circuit Protection: Yes
Over Voltage Protection: 115-150%
General
Efficiency: Up to 82%
Isolation: 3000VAC
Environmental
Operating Temperature: -10 to 50°C
Storage Temperature: -20 to 85°C
Physical
Weight: 8.5oz (240g)

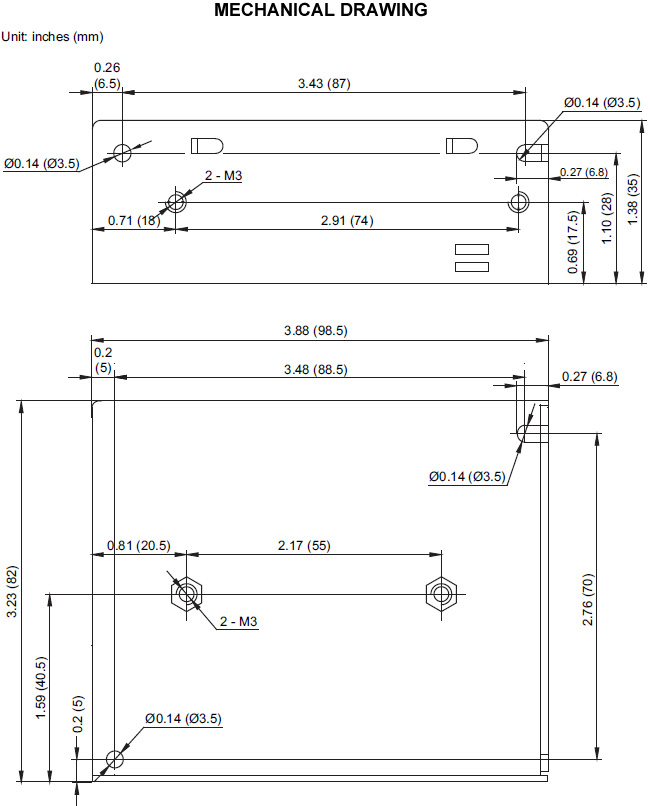

Dimensions: 3.88" x 3.23" x 1.38" (98.5 x 82 x 35 mm)
Notes & safety
Notes: Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950, GB4943, EN60950
RoHS Compliance: Yes
