PSHF15W
The PSHF15W series of AC/DC power supplies offers 15W of output power in a 3.94” x 1.82” x 0.87” miniature open frame package. This series consists of 5, 12, 24, and 48VDC single output models with a universal input voltage range of 85~264VAC (120~370VDC). These supplies have a ±10% output adjustment range and are protected against short circuit, over load, over voltage, and over temperature conditions. This series is RoHS compliant and has UL60950, GB4943, and EN60950 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHF15W-SPL-5 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Open Frame | Size: 3.94" x 1.82" x 0.87" | Get a Quote |
| PSHF15W-SPL-15 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: Open Frame | Size: 3.94" x 1.82" x 0.87" | Get a Quote |
| PSHF15W-SPL-48 | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 0.32A | Output Power (W): 15.4 | No. Outputs: S | Case: Open Frame | Size: 3.94" x 1.82" x 0.87" | Get a Quote |
| PSHF15W-SPL-12 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 1.3A | Output Power (W): 15.6 | No. Outputs: S | Case: Open Frame | Size: 3.94" x 1.82" x 0.87" | Get a Quote |
| PSHF15W-SPL-24 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 0.65A | Output Power (W): 15.6 | No. Outputs: S | Case: Open Frame | Size: 3.94" x 1.82" x 0.87" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Output Current: | 3A, 1.3A, 1A, 0.65A, 0.32A |
| Output Power (Watts): | 15, 15.4, 15.6 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | 115-150% |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -10 to 50°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.98 lbs. |

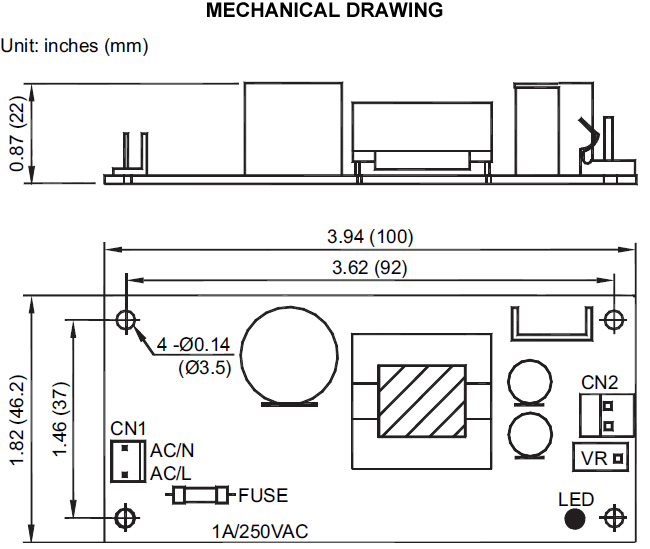

| Dimensions: | 3.94" x 1.82" x 0.87" (100 x 46.2 x 22 mm) |
| Notes & safety | |
| Notes: | (1) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950, GB4943, EN 60950 |
| RoHS Compliance: | Yes |
