PSHF150W-SMF
The PSHF150W-SMF series of AC/DC power supplies offers up to 156W of output power in a 7.83” x 3.86” x 1.54” enclosed case. This series consists of 5, 12, 13.5, 15, 24, and 48VDC single output models with an input voltage range of 85~132/170~264VAC selectable by switch. These supplies have a ±10% output adjustment range and are protected against short circuit, over load, and over voltage conditions. This series is RoHS compliant and has UL60950, EN60950, GB4943, and CE approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHF150W-SMF-5 | Input Voltage: 85~132 / 170~264 | Output Voltage: 5 | Output Current: 25.0 A | Output Power (W): 125 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| PSHF150W-SMF-48 | Input Voltage: 85~132 / 170~264 | Output Voltage: 48 | Output Current: 3.1 A | Output Power (W): 149 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| PSHF150W-SMF-12 | Input Voltage: 85~132 / 170~264 | Output Voltage: 12 | Output Current: 12.5 A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| PSHF150W-SMF-13.5 | Input Voltage: 85~132 / 170~264 | Output Voltage: 13.5 | Output Current: 11.1 A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| PSHF150W-SMF-15 | Input Voltage: 85~132 / 170~264 | Output Voltage: 15 | Output Current: 10.0 A | Output Power (W): 150 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| PSHF150W-SMF-24 | Input Voltage: 85~132 / 170~264 | Output Voltage: 24 | Output Current: 6.5 A | Output Power (W): 156 | No. Outputs: S | Case: Enclosed Case | Size: 7.83" x 3.86" x 1.54" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~132/170~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 5, 12, 13.5, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 25.0A, 12.5A, 11.1A, 10.0A, 6.5A, 3.1A |
| Output Power (Watts): | 125, 149, 150, 156 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Shut off, re-power on to recover |
| Over Voltage Protection: | 115-150% |
| General | |
| Efficiency: | Up to 87% |
| Isolation: | 3000VAC |
| Environmental | |

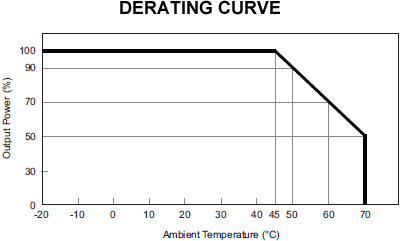

| Operating Temperature: | -20 to 70°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 1.5 lb. |

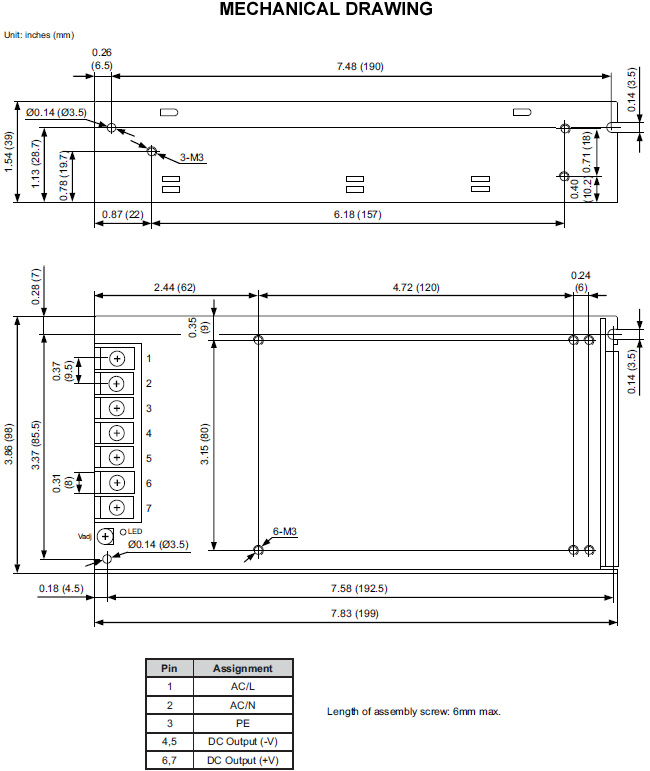

| Dimensions: | 7.83" x 3.86" x 1.54" (199 x 98 x 39 mm) |
| Notes & safety | |
| Notes: | 1. Ripple & noise is measured at 20MHz using a 12" twisted pair-wire terminated with 0.1µF and 47µF capacitors in parallel. 2. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950, EN60950, GB4943, CE |
| RoHS Compliance: | Yes |
