PSHBU50

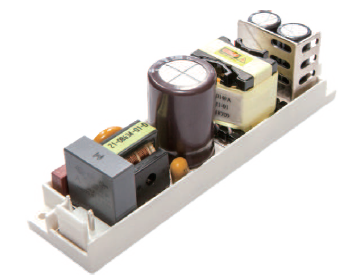

The PSHBU50 series of medical AC/DC open frame power supplies offers up to 50 watts of output power in a 4” x 1” x 1.28” package. This series consists of single output models with a wide operating input voltage range of 80-275VAC. Each model in this series has high ESD immunity, cooling by free air convection, and over load and short circuit protection. This series has IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSA C22.2 No. 60601-1:14, and EN60601-1: 2006/A1: 2013 safety approvals.

• Wide Operating Input Voltage Range of 80 to 275VAC • Single Output • Support Risk Management Process • Input to Output: 2MOPP • RoHS II Compliant • Over Load and Short Circuit Protection • High ESD Immunity • Cooling by Free Air Convection • IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSA C22.2 No. 60601-1:14, and EN60601-1: 2006/A1: 2013 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSHBU50-102 Input Voltage: 80~275 Output Voltage: 5~6 Output Current: 5.83~7A Output Power (W): 35 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-103 Input Voltage: 80~275 Output Voltage: 6.8~8 Output Current: 5~6.66A Output Power (W): 40 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-104 Input Voltage: 80~275 Output Voltage: 8~11 Output Current: 4.09~5.62A Output Power (W): 40 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-105 Input Voltage: 80~275 Output Voltage: 11~13 Output Current: 3.84~4.55A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-106 Input Voltage: 80~275 Output Voltage: 13~16 Output Current: 3.13~3.85A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-107 Input Voltage: 80~275 Output Voltage: 16~21 Output Current: 2.38~3.13A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-108 Input Voltage: 80~275 Output Voltage: 21~27 Output Current: 1.85~2.38A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-109 Input Voltage: 80~275 Output Voltage: 27~33 Output Current: 1.51~1.85A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-110 Input Voltage: 80~275 Output Voltage: 33~40 Output Current: 1.25~1.51A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-111 Input Voltage: 80~275 Output Voltage: 40~50 Output Current: 1~1.25A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
PSHBU50-112 Input Voltage: 80~275 Output Voltage: 50~59 Output Current: 0.84~1A Output Power (W): 50 No. Outputs: S Case: Open Frame Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100/240
Input Voltage Range: 80~275
Input Frequency: 47 to 63
Output
Output Voltage: 5~6, 6.8~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 50~59
Output Current: 1A, 1.25A, 1.51A, 1.85A, 2.38A, 3.13A, 3.85A, 4.55A, 5.62A, 6.66A, 7A
Output Power (Watts): 35, 40, 45, 50
Short Circuit Protection: Free Air Convection
General
Efficiency: 88%
Environmental
Operating Temperature: -10 to 70ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 2.65oz (75g)
Dimensions: 4in x 1in x 1.28in (101.6mm x 25.4mm x 32.6mm)
Notes & safety
Notes: 1. Output can provide up to peak load when the power supply starts up. Staying in more than rated load continually is not allowed.
3. At factory, in 60% rated load condition, each output is checked to be within voltage accuracy.
4. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
5. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
6. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line.
7. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSA C22.2 No.60601-1:14, EN60601-1:2006/A1:2013
RoHS Compliance: Yes

Get a Quote

Request information for from Wall Industries.
