PSHBU100
The PSHBU100 series of AC/DC medical open frame power supplies offers up to 100 watts of output power in a 4” x 2” x 1.02” package. This series consists of single output models with a wide operating voltage range of 90-260VAC. Each model in this series has high ESD immunity, RoHS 2 compliance, and short circuit, over voltage, and over load protection. This series has IEC60601-1 Edition 3.1, ES60601-1:2005(R2012), CSA C22.2 No. 60601-1:14, and EN60601-1:2006/A1:2013 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSHBU100-105 | Input Voltage: 90~260 | Output Voltage: 11~13 | Output Current: 8.33A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| PSHBU100-106 | Input Voltage: 90~260 | Output Voltage: 13~16 | Output Current: 7.69A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| PSHBU100-107 | Input Voltage: 90~260 | Output Voltage: 16~21 | Output Current: 6.25A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| PSHBU100-108 | Input Voltage: 90~260 | Output Voltage: 21~27 | Output Current: 4.76A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| PSHBU100-109 | Input Voltage: 90~260 | Output Voltage: 27~33 | Output Current: 3.70A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| PSHBU100-110 | Input Voltage: 90~260 | Output Voltage: 33~40 | Output Current: 3.03A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| PSHBU100-111 | Input Voltage: 90~260 | Output Voltage: 40~50 | Output Current: 2.50A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| PSHBU100-112 | Input Voltage: 90~260 | Output Voltage: 50~55 | Output Current: 2A | Output Power (W): 100 | No. Outputs: S | Case: Open Frame | Size: 4" x 2" x 1.02" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~260 |
| PFC: | 0.90-1 |
| Input Frequency: | 47-63 |
| Output | |
| Output Voltage: | 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 50~55 |
| Output Current: | 2A, 2.5A, 3.03A, 3.70A, 4.76A, 6.25A, 7.69A, 8.33A |
| Output Power (Watts): | 100 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 89% |
| Environmental | |
| Operating Temperature: | -10 to 70ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 6.35~8.82oz (180~250g) |

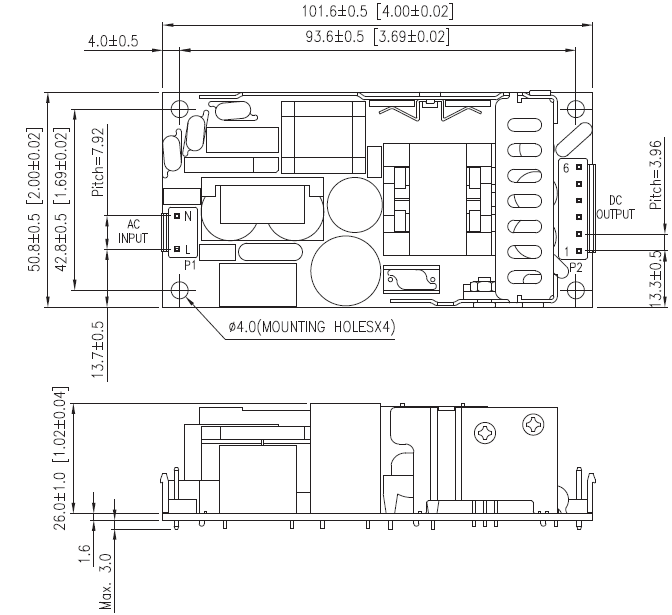

| Dimensions: | 4in x 2in x 1.02in (101.6mm x 50.8mm x 26mm) |
| Notes & safety | |
| Notes: | 1. Output can provide up to peak load when the power supply starts up. Staying in more than rated load continually is not allowed. 2. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. *Due to advances in technology, specifications subject to change without notice |
| Safety Approvals: | IEC60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSA C22.2 No. 60601-1:14, EN60601-1:2006/A1:2013 |
| RoHS Compliance: | Yes |
