PSGKF-200

The PSGKF-200 series of AC/DC switching power supplies provides 200 Watts of output power in a 7.83” x 3.90” x 1.97” enclosed case with built-in cooling fan speed control. This series consists of 5V, 12V, 24V, and 48VDC single output models with an input voltage range of 85~264VAC (120~370VDC). Some features include high efficiency up to 87.5%, built-in active PFC, and -25°C to +70°C operating temperature range. This series also has short circuit, over load, and over power protection. All models are RoHS compliant and have UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), and EN60950-1:2006 safety approvals.

• RoHS Compliant • 200 Watts Output Power • 3000VAC I/O Isolation • High Efficiency up to 87.5% • Operating Altitude up to 5000M • 100% Full Load Burn-in Test • Built-in Cooling Fan Speed Control • Built-in Active PFC, PF > 0.95 • Adjustable Output Voltage • Conformal Coating on Both Sides of PCB • -25°C to +70°C Wide Operating Temperature Range • All Using 105°C Long Life Electrolytic Capacitors • Withstand 300VAC Surge Input for 5 Sec. • Universal Input Voltage Range: 85-264VAC (120-370VDC) • Over Load, Over Power, and Short Circuit Protection • 5V, 12V, 24V, and 48VDC Single Output Models • UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), EN60950-1:2006 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSGKF-200-5 Input Voltage: 85~264 Output Voltage: 5 Output Current: 40A Output Power (W): 200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSGKF-200-12 Input Voltage: 85~264 Output Voltage: 12 Output Current: 16.7A Output Power (W): 200 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSGKF-200-24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 8.4A Output Power (W): 201.6 No. Outputs: S Case: Enclosed with Fan Get a Quote
PSGKF-200-48 Input Voltage: 85~264 Output Voltage: 48 Output Current: 4.2A Output Power (W): 201.6 No. Outputs: S Case: Enclosed with Fan Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 85~264
PFC: 0.98 at 115VAC0.95 at 230VAC
Input Frequency: 47 - 63Hz
Output
Output Voltage: 5, 12, 24, 48
Voltage Accuracy: ±1%
Output Current: 40A, 16.7A, 8.4A, 4.2A
Output Power (Watts): 200, 201.6
Output Trim/Adjustability: -5%, +10%
Short Circuit Protection: Long Term Mode, Automatic Recovery
General
Efficiency: Up to 87.50%
Isolation: 3000VAC
Environmental

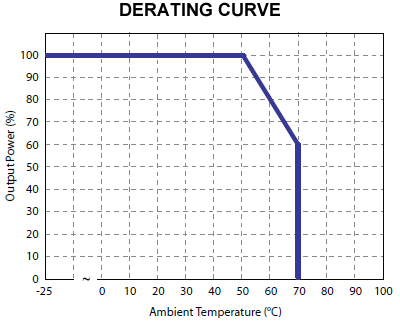

Operating Temperature: -25 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 2.1 lbs (950g)

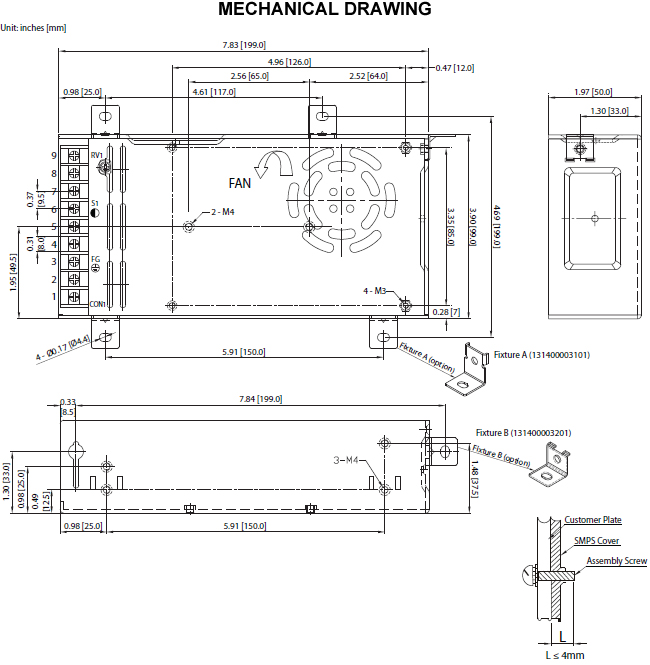

Dimensions: 7.83" x 3.90" x 1.97" (199.0 x 99.0 x 50.0 mm)
Notes & safety
Notes: 1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel.
2. The power supply is considered a component which will be installed into final equipment. The final equipment must be re- confirmed that it still meets EMC directives.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60950-1 (2nd edition), IEC60950-1:2005 (2nd edition), EN60950-1:2006
RoHS Compliance: Yes
