PSEW75

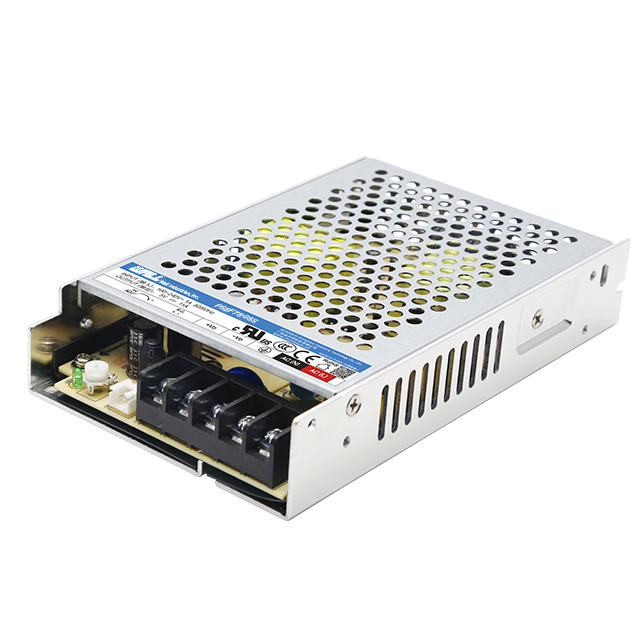

The PSEW75 series of AC/DC switching power supplies offers up to 76.8 watts of output power in an enclosed 6.26” x 4.53” x 1.81” package. This series consists of single output models with an input voltage range of 85~264VAC or 120~370VDC as this series accepts AC or DC input. Each model features built-in active PFC function, high isolation test voltage. These converters offer excellent EMC performance and meet CISPR32/EN55032 Class B without extra components, as well as short circuit, over current, over voltage, and over temperature protection. It also has safety according to IEC/EN/UL62368, EN60335, EN61558, and GB4943.

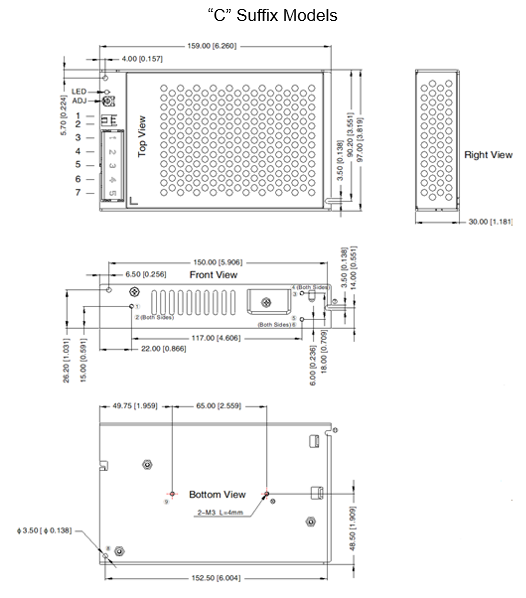

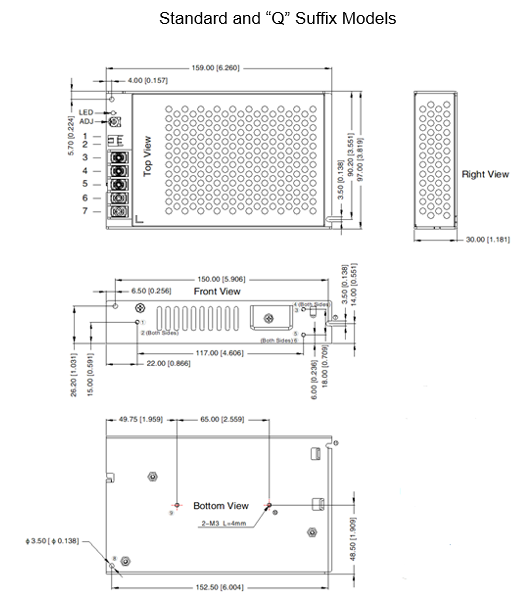

| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSEW75-05S | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 15A | Output Power (W): 75 | No. Outputs: S | Case: Enclosed Case | Size: 6.26" x 4.53" x 1.81" | Get a Quote |
| PSEW75-15S | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 5A | Output Power (W): 75 | No. Outputs: S | Case: Enclosed Case | Size: 6.26" x 4.53" x 1.81" | Get a Quote |
| PSEW75-12S | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 6.3A | Output Power (W): 75.6 | No. Outputs: S | Case: Enclosed Case | Size: 6.26" x 4.53" x 1.81" | Get a Quote |
| PSEW75-24S | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 3.2A | Output Power (W): 76.8 | No. Outputs: S | Case: Enclosed Case | Size: 6.26" x 4.53" x 1.81" | Get a Quote |
| PSEW75-48S | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 1.6A | Output Power (W): 76.8 | No. Outputs: S | Case: Enclosed Case | Size: 6.26" x 4.53" x 1.81" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 85~264 |
| Input Voltage Range: | 115/230 |
| Remote ON/OFF: | Yes |
| PFC: | 115VAC: 0.98 230VAC: 0.93 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 15A, 6.3A, 5A, 3.2A, 1.6A |
| Output Power (Watts): | 75, 75.6, 76.8 |
| Short Circuit Protection: | Constant current, continuous, self-recovery |
| Over Voltage Protection: | See Data Sheet |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 89% |
| Isolation: | Up to 4000VAC |
| Environmental | |
| Operating Temperature: | 5V: -25 to +60°C Others: -25 to +70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 0.84lbs (380g) |
| Dimensions: | 6.26in x 4.53in x 1.81in (159mm x 97mm x 30mm) |
| Case Material: | Metal (AL1100, SGCC) |
| Notes & safety | |
| Notes: | 1. Add “C” to model number to indicate terminal with protective cover, and “Q” to model number for conformal coating. 2. Tip and barrel method is used for ripple and noise test. Output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, contact factory for more information. 3. Over-Temperature Protection needs to be tested under rated full load conditions. 4. This product is Listed to applicable standards and requirements by UL. 5. The power supply is considered a component which will be installed into terminal equipment. All EMC tests should be confirmed with final equipment. Consult factory for more information. 6. In order to improve the efficiency at high input voltage, there will be audible noise generated, but does not affect product performance and reliability. 7. Product customization service is available, please contact factory for more details. 8. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL62368/EN60335/EN61558 /GB4943 |
