PSEW500

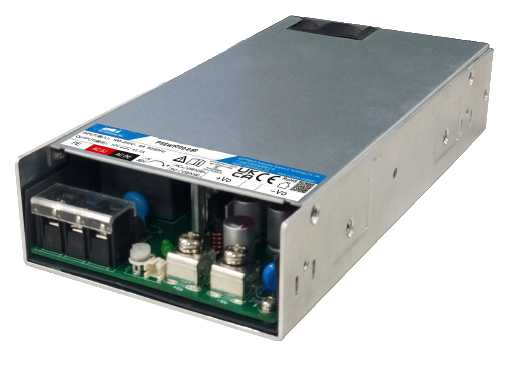

The PSEW500 series of AC/DC switching power supplies offers 500 watts of output power in an enclosed 8” x 4” x 1.6” package. This series consists of single output models with an input voltage range of 80~264VAC or 110~370VAC as this series accepts AC or DC input. Each model features active PFC function, low standby power consumption, remote sense compensation, and remote ON/OFF. This series has short circuit constant current, over current, over voltage, and over temperature protection, and is RoHS compliant.
• Universal 80-264VAC or 110~370VDC Input Voltage Range
• Accepts AC or DC Input (Dual-Use of Same Terminal)
• Low Standby Power Consumption
• High Efficiency
• Remote Sense Compensation
• Remote ON/OFF Function
• Active PFC
• Output Short Circuit Constant Current, Over Current, Over Voltage, and Over Temperature Protection
• Over Voltage Class III (Designed to meet EN61558)
• High I/O Isolation Test Voltage Up to 4000VAC
• Safety Varies by Model, See Data Sheet for Further Details
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSEW500-03S | Input Voltage: 80~264 | Output Voltage: 3.3 | Output Current: 90A | Output Power (W): 297 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-05S | Input Voltage: 80~264 | Output Voltage: 5 | Output Current: 90A | Output Power (W): 450 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-48S | Input Voltage: 80~264 | Output Voltage: 48 | Output Current: 10.4A | Output Power (W): 499.2 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-12S | Input Voltage: 80~264 | Output Voltage: 12 | Output Current: 14.7A | Output Power (W): 500.4 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-36S | Input Voltage: 80~264 | Output Voltage: 36 | Output Current: 13.9A | Output Power (W): 500.4 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-15S | Input Voltage: 80~264 | Output Voltage: 15 | Output Current: 33.4A | Output Power (W): 501 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-24S | Input Voltage: 80~264 | Output Voltage: 24 | Output Current: 20.9A | Output Power (W): 501.6 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-27S | Input Voltage: 80~264 | Output Voltage: 27 | Output Current: 18.6A | Output Power (W): 502.2 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| PSEW500-54S | Input Voltage: 80~264 | Output Voltage: 54 | Output Current: 9.3A | Output Power (W): 502.2 | No. Outputs: S | Case: Enclosed Case | Size: 8" x 4" x 1.6" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 80~264 |
| PFC: | 115VAC: 0.98 230VAC: 0.95 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, 27, 36, 48, 54 |
| Voltage Accuracy: | 3.3V/5V: ±2% 12V/15V/24V/27V/36V/48V/54V: ±1% |
| Output Current: | 90A, 41.7A, 33.4A, 20.9A, 18.6A, 13.9A, 10.4A, 9.3A |
| Output Power (Watts): | 297, 450, 499.2, 500.4, 501, 501.6, 502.2 |
| Short Circuit Protection: | Constant current protection, continuous, self-recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | Up to 4000VAC |
| Environmental | |
| Operating Temperature: | -30 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 29.98oz (850g) |

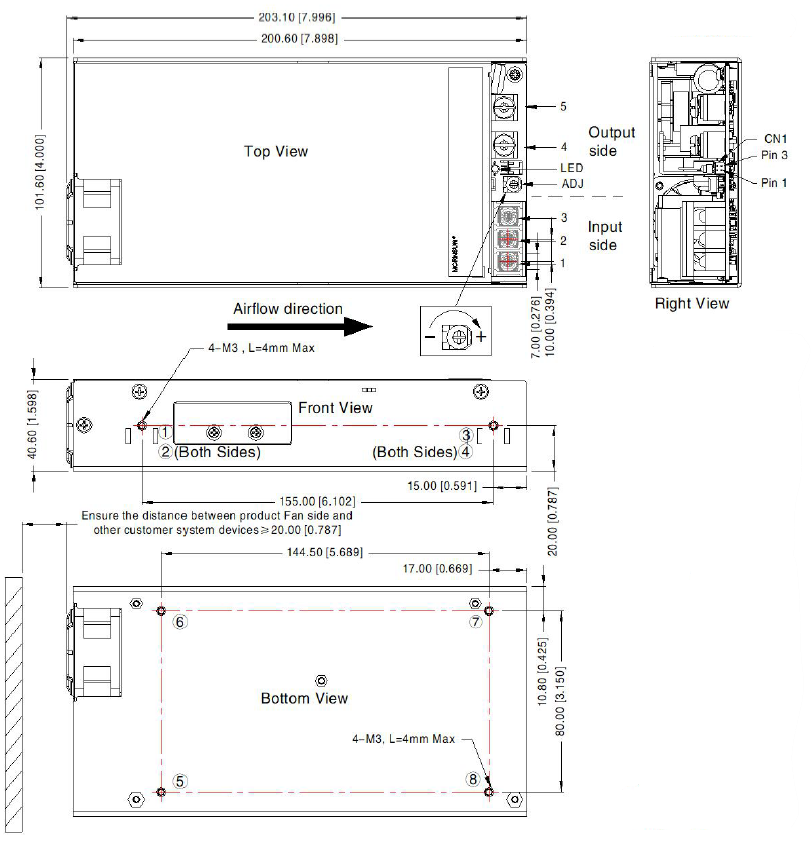

| Dimensions: | 8in x 4in x 1.6in (203.1mm x 101.6mm x 40.6mm) |
| Case Material: | Metal (AL1100. SGCC) |
| Notes & safety | |
| Notes: | 1. Under any conditions, the total power of the product should not exceed rated power, and the output current should not exceed the rated output current. 2. Tip and barrel method is used for ripple and noise test. Output parallel 47uF electrolytic capacitor and 0.1uF ceramic capacitor, contact factory for more information. 3. This product is Listed to applicable standards and requirements by UL. 4. Room temperature derating of 5°C/1000m is needed for operating altitude greater than 2000m 5. In order to improve the efficiency at high input voltage, there will be audible noise generated, but does not affect product performance and reliability 6. Product customization service is available, please contact factory for more details. 7. Output voltage can be adjusted by the ADJ, clockwise to decrease. 8. CAUTION: Double pole, neutral fusing. Disconnect mains before servicing. 9. Products should be classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units. 10. Power supply is considered a component which will be installed into final equipment. All EMC tests should be confirmed with final equipment. Consult factory for EMC test operation instructions. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | See Data Sheet; Varies by Model |
| RoHS Compliance: | Yes |
