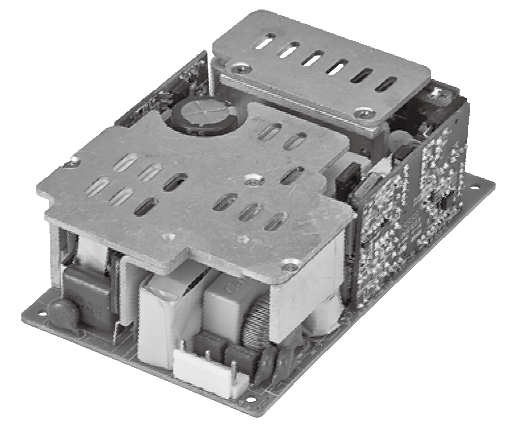

PSEPM1200

The PSEPM1200 series of medial AC/DC power supplies offers 100-200 watts of output power in a 5in x 3in x 1.5in open frame package. This series consists of single, dual, triple, and quad output models with a wide input voltage range of 90~264VAC. Features of this series include high efficiency, 100% burn-in and hi-pot testing, and protection against short circuit, over voltage, and over current conditions. This series is RoHS and CEC compliant and has UL/CUL, CB, CE, & FCC safety approvals.

• Wide Input Range of 90~264VAC • Single, Dual, Triple, and Quad Outputs • High Efficiency • RoHS Compliant • Short Circuit, Over Voltage, and Over Current Protection • 100% Burn-In and Hi-Pot Tested • CEC Compliance • UL/CUL, CB, CE, & FCC Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSEPM210005A0 Input Voltage: 90~264 Output Voltage: 5, 5 Output Current: 18A, 2A Output Power (W): 100 No. Outputs: D Case: Open Frame Get a Quote
PSEPM212015A0 Input Voltage: 90~264 Output Voltage: 15, 5 Output Current: 7.33A, 2A Output Power (W): 120 No. Outputs: D Case: Open Frame Get a Quote
PSEPM312015C0 Input Voltage: 90~264 Output Voltage: 15, 5, -12 Output Current: 6.93A, 2A, 0.5A Output Power (W): 120 No. Outputs: T Case: Open Frame Get a Quote
PSEPM312215AA Input Voltage: 90~264 Output Voltage: 15, 5, 5 Output Current: 5.80A, 2A, 5A Output Power (W): 122 No. Outputs: T Case: Open Frame Get a Quote
PSEPM11251600 Input Voltage: 90~264 Output Voltage: 16 Output Current: 7.81A Output Power (W): 125 No. Outputs: S Case: Open Frame Get a Quote
PSEPM211509A0 Input Voltage: 90~264 Output Voltage: 9, 5 Output Current: 11.67A, 2A Output Power (W): 125 No. Outputs: D Case: Open Frame Get a Quote
PSEPM312510C0 Input Voltage: 90~264 Output Voltage: 10, 5, -12 Output Current: 10.90A, 2A, 0.5A Output Power (W): 125 No. Outputs: T Case: Open Frame Get a Quote
PSEPM312516C0 Input Voltage: 90~264 Output Voltage: 16, 5, -12 Output Current: 6.81A, 2A, 0.5A Output Power (W): 125 No. Outputs: T Case: Open Frame Get a Quote
PSEPM212716A0 Input Voltage: 90~264 Output Voltage: 16, 5 Output Current: 7.32A, 2A Output Power (W): 127 No. Outputs: D Case: Open Frame Get a Quote
PSEPM412715CA Input Voltage: 90~264 Output Voltage: 15, 5, -12, 5 Output Current: 5.73A, 2A, 0.5A, 5A Output Power (W): 127 No. Outputs: M Case: Open Frame Get a Quote
PSEPM312816AA Input Voltage: 90~264 Output Voltage: 16, 5, 5 Output Current: 5.81A, 2A, 5A Output Power (W): 128 No. Outputs: T Case: Open Frame Get a Quote
PSEPM313010AA Input Voltage: 90~264 Output Voltage: 10, 5, 5 Output Current: 9.50A, 2A, 5A Output Power (W): 130 No. Outputs: T Case: Open Frame Get a Quote
PSEPM413010CA Input Voltage: 90~264 Output Voltage: 10, 5, -12, 5 Output Current: 8.90A, 2A, 0.5A, 5A Output Power (W): 130 No. Outputs: M Case: Open Frame Get a Quote
PSEPM413216CA Input Voltage: 90~264 Output Voltage: 16, 5, -12, 5 Output Current: 5.68A, 2A, 0.5A, 5A Output Power (W): 132 No. Outputs: M Case: Open Frame Get a Quote
PSEPM11351800 Input Voltage: 90~264 Output Voltage: 18 Output Current: 7.50A Output Power (W): 135 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11352200 Input Voltage: 90~264 Output Voltage: 22 Output Current: 6.13A Output Power (W): 135 No. Outputs: S Case: Open Frame Get a Quote
PSEPM213517A0 Input Voltage: 90~264 Output Voltage: 17, 5 Output Current: 7.35A, 2A Output Power (W): 135 No. Outputs: D Case: Open Frame Get a Quote
PSEPM313517AA Input Voltage: 90~264 Output Voltage: 17, 5, 5 Output Current: 5.88A, 2A, 5A Output Power (W): 135 No. Outputs: T Case: Open Frame Get a Quote
PSEPM313511C0 Input Voltage: 90~264 Output Voltage: 11, 5, -12 Output Current: 10.81A, 2A, 0.5A Output Power (W): 135 No. Outputs: T Case: Open Frame Get a Quote
PSEPM313517C0 Input Voltage: 90~264 Output Voltage: 17, 5, -12 Output Current: 7A, 2A, 0.5A Output Power (W): 135 No. Outputs: T Case: Open Frame Get a Quote
PSEPM313522C0 Input Voltage: 90~264 Output Voltage: 22, 5, -12 Output Current: 5.40A, 2A, 0.5A Output Power (W): 135 No. Outputs: T Case: Open Frame Get a Quote
PSEPM212610A0 Input Voltage: 90~264 Output Voltage: 10, 5 Output Current: 11.60A, 2A Output Power (W): 136 No. Outputs: D Case: Open Frame Get a Quote
PSEPM213809A0 Input Voltage: 90~264 Output Voltage: 9, 5 Output Current: 14.17A, 2A Output Power (W): 138 No. Outputs: D Case: Open Frame Get a Quote
PSEPM213811A0 Input Voltage: 90~264 Output Voltage: 11, 5 Output Current: 11.63A, 2A Output Power (W): 138 No. Outputs: D Case: Open Frame Get a Quote
PSEPM213822A0 Input Voltage: 90~264 Output Voltage: 22, 5 Output Current: 5.81A, 2A Output Power (W): 138 No. Outputs: D Case: Open Frame Get a Quote
PSEPM11402300 Input Voltage: 90~264 Output Voltage: 23 Output Current: 6.08A Output Power (W): 140 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11403400 Input Voltage: 90~264 Output Voltage: 34 Output Current: 4.11A Output Power (W): 140 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11403500 Input Voltage: 90~264 Output Voltage: 35 Output Current: 4.00A Output Power (W): 140 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11404600 Input Voltage: 90~264 Output Voltage: 46 Output Current: 3.04A Output Power (W): 140 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11404700 Input Voltage: 90~264 Output Voltage: 47 Output Current: 2.97A Output Power (W): 140 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11405400 Input Voltage: 90~264 Output Voltage: 54 Output Current: 2.59A Output Power (W): 140 No. Outputs: S Case: Open Frame Get a Quote
PSEPM315011AA Input Voltage: 90~264 Output Voltage: 11, 5, 5 Output Current: 9.54A, 2A, 5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314022AA Input Voltage: 90~264 Output Voltage: 22, 5, 5 Output Current: 4.77A, 2A, 5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314023C0 Input Voltage: 90~264 Output Voltage: 23, 5, -12 Output Current: 5.39A, 2A, 0.5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314034C0 Input Voltage: 90~264 Output Voltage: 34, 5, -12 Output Current: 3.64A, 2A, 0.5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314035C0 Input Voltage: 90~264 Output Voltage: 35, 5, -12 Output Current: 3.54A, 2A, 0.5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314046C0 Input Voltage: 90~264 Output Voltage: 46, 5, -12 Output Current: 2.69A, 2A, 0.5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314047C0 Input Voltage: 90~264 Output Voltage: 47, 5, -12 Output Current: 2.63A, 2A, 0.5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314054C0 Input Voltage: 90~264 Output Voltage: 54, 5, -12 Output Current: 3.82A, 2A, 0.5A Output Power (W): 140 No. Outputs: T Case: Open Frame Get a Quote
PSEPM414011CA Input Voltage: 90~264 Output Voltage: 11, 5, -12, 5 Output Current: 9A, 2A, 0.5A, 5A Output Power (W): 140 No. Outputs: M Case: Open Frame Get a Quote
PSEPM414022CA Input Voltage: 90~264 Output Voltage: 22, 5, -12, 5 Output Current: 4.50A, 2A, 0.5A, 5A Output Power (W): 140 No. Outputs: M Case: Open Frame Get a Quote
PSEPM314122AB Input Voltage: 90~264 Output Voltage: 22, 5, 12 Output Current: 3.22A, 2A, 5A Output Power (W): 141 No. Outputs: T Case: Open Frame Get a Quote
PSEPM214218A0 Input Voltage: 90~264 Output Voltage: 18, 5 Output Current: 7.33A. 2A Output Power (W): 142 No. Outputs: D Case: Open Frame Get a Quote
PSEPM214234A0 Input Voltage: 90~264 Output Voltage: 34, 5 Output Current: 3.88A, 2A Output Power (W): 142 No. Outputs: D Case: Open Frame Get a Quote
PSEPM314218AA Input Voltage: 90~264 Output Voltage: 18, 5, 5 Output Current: 5.94A, 2A, 5A Output Power (W): 142 No. Outputs: T Case: Open Frame Get a Quote
PSPEPM314215C0 Input Voltage: 90~264 Output Voltage: 15, 5, -12 Output Current: 8.40A, 2A, 0.5A Output Power (W): 142 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314218C0 Input Voltage: 90~264 Output Voltage: 18, 5, -12 Output Current: 7A, 2A, 0.5A Output Power (W): 142 No. Outputs: T Case: Open Frame Get a Quote
PSEPM214346A0 Input Voltage: 90~264 Output Voltage: 46, 5 Output Current: 2.89A, 2A Output Power (W): 143 No. Outputs: D Case: Open Frame Get a Quote
PSEPM414322CA Input Voltage: 90~264 Output Voltage: 22, 5, -12, 12 Output Current: 3.04A, 2A, 0.5A, 5A Output Power (W): 143 No. Outputs: M Case: Open Frame Get a Quote
PSEPM214415A0 Input Voltage: 90~264 Output Voltage: 15, 5 Output Current: 8.95A, 2A Output Power (W): 144 No. Outputs: D Case: Open Frame Get a Quote
PSEPM214423A0 Input Voltage: 90~264 Output Voltage: 23, 5 Output Current: 5.82A, 2A Output Power (W): 144 No. Outputs: D Case: Open Frame Get a Quote
PSEPM214454A0 Input Voltage: 90~264 Output Voltage: 54, 5 Output Current: 2.48A, 2A Output Power (W): 144 No. Outputs: D Case: Open Frame Get a Quote
PSEPM414418CA Input Voltage: 90~264 Output Voltage: 18, 5, -12, 5 Output Current: 5.72A, 2A, 0.5A, 5A Output Power (W): 144 No. Outputs: M Case: Open Frame Get a Quote
PSEPM11455500 Input Voltage: 90~264 Output Voltage: 55 Output Current: 2.63A Output Power (W): 145 No. Outputs: S Case: Open Frame Get a Quote
PSEPM214535A0 Input Voltage: 90~264 Output Voltage: 35, 5 Output Current: 3.85A, 2A Output Power (W): 145 No. Outputs: D Case: Open Frame Get a Quote
PSEPM214547A0 Input Voltage: 90~264 Output Voltage: 47, 5 Output Current: 2.87A, 2A Output Power (W): 145 No. Outputs: D Case: Open Frame Get a Quote
PSEPM314518AB Input Voltage: 90~264 Output Voltage: 18, 5, 5 Output Current: 4.16A, 2A, 5A Output Power (W): 145 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314523AA Input Voltage: 90~264 Output Voltage: 23, 5, 5 Output Current: 4.78A, 2A, 5A Output Power (W): 145 No. Outputs: T Case: Open Frame Get a Quote
PSEPM314523AB Input Voltage: 90~264 Output Voltage: 23, 5, 12 Output Current: 3.26A, 2A, 5A Output Power (W): 145 No. Outputs: T Case: Open Frame Get a Quote
PSPEM314555C0 Input Voltage: 90~264 Output Voltage: 55, 5, -12 Output Current: 4.41A, 2A, 0.5A Output Power (W): 145 No. Outputs: T Case: Open Frame Get a Quote
PSEPM414523CA Input Voltage: 90~264 Output Voltage: 23, 5, -12, 5 Output Current: 4.52A, 2A, 0.5A, 5A Output Power (W): 145 No. Outputs: M Case: Open Frame Get a Quote
PSEPM414523CA Input Voltage: 90~264 Output Voltage: 23, 5, -12, 12 Output Current: 3A, 2A, 0.5A, 5A Output Power (W): 145 No. Outputs: M Case: Open Frame Get a Quote
PSEPM314615AA Input Voltage: 90~264 Output Voltage: 15, 5, 5 Output Current: 7.40A, 2A, 5A Output Power (W): 146 No. Outputs: T Case: Open Frame Get a Quote
PSEPM414615CA Input Voltage: 90~264 Output Voltage: 15, 5, -12, 5 Output Current: 7A, 2A, 0.5A, 5A Output Power (W): 146 No. Outputs: M Case: Open Frame Get a Quote
PSEPM414618CA Input Voltage: 90~264 Output Voltage: 18, 5, -12, 12 Output Current: 3.88A, 2A, 0.5A, 5A Output Power (W): 146 No. Outputs: M Case: Open Frame Get a Quote
PSEPM214755A0 Input Voltage: 90~264 Output Voltage: 55, 5 Output Current: 2.49A, 2A Output Power (W): 147 No. Outputs: D Case: Open Frame Get a Quote
PSEPM314910C0 Input Voltage: 90~264 Output Voltage: 10, 5, -12 Output Current: 13.30A, 2A, 0.5A Output Power (W): 149 No. Outputs: T Case: Open Frame Get a Quote
PSEPM11501600 Input Voltage: 90~264 Output Voltage: 16 Output Current: 9.37A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11501700 Input Voltage: 90~264 Output Voltage: 17 Output Current: 8.23A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11501800 Input Voltage: 90~264 Output Voltage: 18 Output Current: 8.33A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11501900 Input Voltage: 90~264 Output Voltage: 19 Output Current: 7.89A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11502200 Input Voltage: 90~264 Output Voltage: 22 Output Current: 6.81A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11502300 Input Voltage: 90~264 Output Voltage: 23 Output Current: 6.52A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11502400 Input Voltage: 90~264 Output Voltage: 24 Output Current: 6.25A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11503400 Input Voltage: 90~264 Output Voltage: 34 Output Current: 4.41A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11503500 Input Voltage: 90~264 Output Voltage: 35 Output Current: 4.28A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11503600 Input Voltage: 90~264 Output Voltage: 36 Output Current: 4.16A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11504600 Input Voltage: 90~264 Output Voltage: 46 Output Current: 3.26A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11504700 Input Voltage: 90~264 Output Voltage: 47 Output Current: 3.19A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11504800 Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.12A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11505400 Input Voltage: 90~264 Output Voltage: 54 Output Current: 2.77A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11505500 Input Voltage: 90~264 Output Voltage: 55 Output Current: 2.72A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11505600 Input Voltage: 90~264 Output Voltage: 56 Output Current: 2.67A Output Power (W): 150 No. Outputs: S Case: Open Frame Get a Quote
PSEPM215012A0 Input Voltage: 90~264 Output Voltage: 12, 5 Output Current: 11.67A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215019A0 Input Voltage: 90~264 Output Voltage: 19, 5 Output Current: 7.36A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215024A0 Input Voltage: 90~264 Output Voltage: 24, 5 Output Current: 5.83A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215036A0 Input Voltage: 90~264 Output Voltage: 36, 5 Output Current: 3.88, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215048A0 Input Voltage: 90~264 Output Voltage: 48, 5 Output Current: 2.91A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215056A0 Input Voltage: 90~264 Output Voltage: 56, 5 Output Current: 2.50A, 2A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215012B0 Input Voltage: 90~264 Output Voltage: 12, -12 Output Current: 12A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215019B0 Input Voltage: 90~264 Output Voltage: 19, -12 Output Current: 7.57A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215024B0 Input Voltage: 90~264 Output Voltage: 24, -12 Output Current: 6A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215036B0 Input Voltage: 90~264 Output Voltage: 36, -12 Output Current: 4A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215048B0 Input Voltage: 90~264 Output Voltage: 48, -12 Output Current: 3A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215056B0 Input Voltage: 90~264 Output Voltage: 56, -12 Output Current: 2.57A, 0.5A Output Power (W): 150 No. Outputs: D Case: Open Frame Get a Quote
PSEPM315010AA Input Voltage: 90~264 Output Voltage: 10, 5, 5 Output Current: 11.50A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315011AA Input Voltage: 90~264 Output Voltage: 11, 5, 5 Output Current: 10.45A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315012AA Input Voltage: 90~264 Output Voltage: 12, 5, 5 Output Current: 9.58A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315019AA Input Voltage: 90~264 Output Voltage: 19, 5, 5 Output Current: 6.05A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315019AB Input Voltage: 90~264 Output Voltage: 19, 5, 12 Output Current: 4.21A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315022AA Input Voltage: 90~264 Output Voltage: 22, 5, 5 Output Current: 5.22A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315024AA Input Voltage: 90~264 Output Voltage: 24, 5, 5 Output Current: 4.79A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315024AB Input Voltage: 90~264 Output Voltage: 24, 5, 5 Output Current: 3.33A, 2A, 5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315012C0 Input Voltage: 90~264 Output Voltage: 12, 5, -12 Output Current: 11.16A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315016C0 Input Voltage: 90~264 Output Voltage: 16, 5, -12 Output Current: 8.37A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315019C0 Input Voltage: 90~264 Output Voltage: 19, 5, -12 Output Current: 7.05A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315024C0 Input Voltage: 90~264 Output Voltage: 24, 5, -12 Output Current: 5.58A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315034C0 Input Voltage: 90~264 Output Voltage: 34, 5, -12 Output Current: 3.94A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315035C0 Input Voltage: 90~264 Output Voltage: 35, 5, -12 Output Current: 3.82A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315036C0 Input Voltage: 90~264 Output Voltage: 36, 5, -12 Output Current: 3.72A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315046C0 Input Voltage: 90~264 Output Voltage: 46, 5, -12 Output Current: 2.91A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315047C0 Input Voltage: 90~264 Output Voltage: 47, 5, -12 Output Current: 2.85A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315048C0 Input Voltage: 90~264 Output Voltage: 48, 5, -12 Output Current: 2.79A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM315056C0 Input Voltage: 90~264 Output Voltage: 56, 5, -12 Output Current: 2.91A, 2A, 0.5A Output Power (W): 150 No. Outputs: T Case: Open Frame Get a Quote
PSEPM415010CA Input Voltage: 90~264 Output Voltage: 10, 5, -12, 5 Output Current: 10.90A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM415011CA Input Voltage: 90~264 Output Voltage: 11, 5, -12, 5 Output Current: 9.90A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM415012CA Input Voltage: 90~264 Output Voltage: 12, 5, -12, 5 Output Current: 9.08A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM415017CA Input Voltage: 90~264 Output Voltage: 17, 5, -12, 5 Output Current: 6.41A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM415019CA Input Voltage: 90~264 Output Voltage: 19, 5, -12, 5 Output Current: 5.73A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM415019CB Input Voltage: 90~264 Output Voltage: 19, 5, -12, 12 Output Current: 4.36A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM415024CA Input Voltage: 90~264 Output Voltage: 24, 5, -12, 5 Output Current: 4.54A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM415024CB Input Voltage: 90~264 Output Voltage: 24, 5, -12, 12 Output Current: 3.08A, 2A, 0.5A, 5A Output Power (W): 150 No. Outputs: M Case: Open Frame Get a Quote
PSEPM215210A0 Input Voltage: 90~264 Output Voltage: 10, 5 Output Current: 14.17A, 2A Output Power (W): 152 No. Outputs: D Case: Open Frame Get a Quote
PSEPM215316A0 Input Voltage: 90~264 Output Voltage: 16, 5 Output Current: 8.95A, 2A Output Power (W): 153 No. Outputs: D Case: Open Frame Get a Quote
PSEPM315316AA Input Voltage: 90~264 Output Voltage: 16, 5, 5 Output Current: 7.37A, 2A, 5A Output Power (W): 153 No. Outputs: T Case: Open Frame Get a Quote
PSEPM415316CA Input Voltage: 90~264 Output Voltage: 16, 5, -12, 5 Output Current: 7A, 2A, 0.5A, 5A Output Power (W): 153 No. Outputs: M Case: Open Frame Get a Quote
PSEPM315817C0 Input Voltage: 90~264 Output Voltage: 17, 5, -12 Output Current: 8.37A, 2A, 0.5A Output Power (W): 158 No. Outputs: T Case: Open Frame Get a Quote
PSEPM316017AA Input Voltage: 90~264 Output Voltage: 17, 5, 5 Output Current: 7.37A, 2A, 5A Output Power (W): 160 No. Outputs: T Case: Open Frame Get a Quote
PSEPM416017CA Input Voltage: 90~264 Output Voltage: 17, 5, -12, 5 Output Current: 7A, 2A, 0.5A, 5A Output Power (W): 160 No. Outputs: M Case: Open Frame Get a Quote
PSEPM216317A0 Input Voltage: 90~264 Output Voltage: 17, 5 Output Current: 8.95A, 2A Output Power (W): 162 No. Outputs: D Case: Open Frame Get a Quote
PSEPM316211C0 Input Voltage: 90~264 Output Voltage: 11, 5, -12 Output Current: 13.27A, 2A, 0.5A Output Power (W): 162 No. Outputs: T Case: Open Frame Get a Quote
PSEPM316222C0 Input Voltage: 90~264 Output Voltage: 22, 5, -12 Output Current: 6.63A, 2A, 0.5A Output Power (W): 162 No. Outputs: T Case: Open Frame Get a Quote
PSEPM416222CA Input Voltage: 90~264 Output Voltage: 22, 5, -12, 5 Output Current: 5.50A, 2A, 0.5A, 5A Output Power (W): 162 No. Outputs: M Case: Open Frame Get a Quote
PSEPM316522AB Input Voltage: 90~264 Output Voltage: 22, 5, 12 Output Current: 4.31A, 2A, 5A Output Power (W): 165 No. Outputs: T Case: Open Frame Get a Quote
PSEPM216611A0 Input Voltage: 90~264 Output Voltage: 11, 5 Output Current: 14.17A, 2A Output Power (W): 166 No. Outputs: D Case: Open Frame Get a Quote
PSEPM216622A0 Input Voltage: 90~264 Output Voltage: 22, 5 Output Current: 7.08A, 2A Output Power (W): 166 No. Outputs: D Case: Open Frame Get a Quote
PSEPM416622CA Input Voltage: 90~264 Output Voltage: 22, 5, -12, 12 Output Current: 4.09A, 2A, 0.5A, 5A Output Power (W): 166 No. Outputs: M Case: Open Frame Get a Quote
PSEPM316718C0 Input Voltage: 90~264 Output Voltage: 18, 5, -12 Output Current: 8.38A, 2A, 0.5A Output Power (W): 167 No. Outputs: T Case: Open Frame Get a Quote
PSEPM416718CA Input Voltage: 90~264 Output Voltage: 18, 5, -12, 5 Output Current: 7A, 2A, 0.5A, 5A Output Power (W): 167 No. Outputs: M Case: Open Frame Get a Quote
PSEPM316818AA Input Voltage: 90~264 Output Voltage: 18, 5, 5 Output Current: 7.38A, 2A, 5A Output Power (W): 168 No. Outputs: T Case: Open Frame Get a Quote
PSEPM316818AB Input Voltage: 90~264 Output Voltage: 18, 5, 12 Output Current: 5.44A, 2A, 5A Output Power (W): 168 No. Outputs: T Case: Open Frame Get a Quote
PSEPM316823AA Input Voltage: 90~264 Output Voltage: 23, 5, 5 Output Current: 5.78A, 2A, 5A Output Power (W): 168 No. Outputs: T Case: Open Frame Get a Quote
PSEPM316823C0 Input Voltage: 90~264 Output Voltage: 23, 5, -12 Output Current: 6.63A, 2A, 0.5A Output Power (W): 168 No. Outputs: T Case: Open Frame Get a Quote
PSEPM416818CA Input Voltage: 90~264 Output Voltage: 18, 5, -12, 12 Output Current: 5.11A, 2A, 0.5A, 5A Output Power (W): 168 No. Outputs: M Case: Open Frame Get a Quote
PSEPM416823CA Input Voltage: 90~264 Output Voltage: 23, 5, -12, 5 Output Current: 5.52A, 2A, 0.5A, 5A Output Power (W): 168 No. Outputs: M Case: Open Frame Get a Quote
PSEPM316954C0 Input Voltage: 90~264 Output Voltage: 54, 5, -12 Output Current: 3.72A, 2A, 0.5A Output Power (W): 169 No. Outputs: T Case: Open Frame Get a Quote
PSEPM217034A0 Input Voltage: 90~264 Output Voltage: 34, 5 Output Current: 4.72A, 2A Output Power (W): 170 No. Outputs: D Case: Open Frame Get a Quote
PSEPM317023AB Input Voltage: 90~264 Output Voltage: 23, 5, 12 Output Current: 4.34A, 2A, 5A Output Power (W): 170 No. Outputs: T Case: Open Frame Get a Quote
PSEPM217118A0 Input Voltage: 90~264 Output Voltage: 18, 5 Output Current: 8.95A, 2A Output Power (W): 171 No. Outputs: D Case: Open Frame Get a Quote
PSEPM417123CA Input Voltage: 90~264 Output Voltage: 23, 5, -12, 12 Output Current: 4.13A, 2A, 0.5A, 5A Output Power (W): 171 No. Outputs: M Case: Open Frame Get a Quote
PSEPM317255C0 Input Voltage: 90~264 Output Voltage: 55, 5, -12 Output Current: 2.69A, 2A, 0.5A Output Power (W): 172 No. Outputs: T Case: Open Frame Get a Quote
PSEPM217323A0 Input Voltage: 90~264 Output Voltage: 23, 5 Output Current: 7.08A, 2A Output Power (W): 173 No. Outputs: D Case: Open Frame Get a Quote
PSEPM217346A0 Input Voltage: 90~264 Output Voltage: 46, 5 Output Current: 3.54A, 2A Output Power (W): 173 No. Outputs: D Case: Open Frame Get a Quote
PSEPM217454A0 Input Voltage: 90~264 Output Voltage: 54, 5 Output Current: 3.04A, 2A Output Power (W): 174 No. Outputs: D Case: Open Frame Get a Quote
PSEPM1751700 Input Voltage: 90~264 Output Voltage: 17 Output Current: 10A Output Power (W): 175 No. Outputs: S Case: Open Frame Get a Quote
PSEPM317512AA Input Voltage: 90~264 Output Voltage: 12, 5, 5 Output Current: 11.66A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317519AA Input Voltage: 90~264 Output Voltage: 19, 5, 5 Output Current: 7.36A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317519AB Input Voltage: 90~264 Output Voltage: 19, 5, 12 Output Current: 5.52A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317524AA Input Voltage: 90~264 Output Voltage: 24, 5, 5 Output Current: 5.83A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317524AB Input Voltage: 90~264 Output Voltage: 24, 5, 12 Output Current: 4.37A, 2A, 5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317512C0 Input Voltage: 90~264 Output Voltage: 12, 5, -12 Output Current: 13.25A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317519C0 Input Voltage: 90~264 Output Voltage: 19, 5, -12 Output Current: 8.36A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317524C0 Input Voltage: 90~264 Output Voltage: 24, 5, -12 Output Current: 6.62A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317536C0 Input Voltage: 90~264 Output Voltage: 36, 5, -12 Output Current: 4.41A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317548C0 Input Voltage: 90~264 Output Voltage: 48, 5, -12 Output Current: 3.54A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM317556C0 Input Voltage: 90~264 Output Voltage: 56, 5, -12 Output Current: 2.63A, 2A, 0.5A Output Power (W): 175 No. Outputs: T Case: Open Frame Get a Quote
PSEPM417512CA Input Voltage: 90~264 Output Voltage: 12, 5, -12, 5 Output Current: 11.60A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEPM417519CA Input Voltage: 90~264 Output Voltage: 19, 5, -12, 5 Output Current: 7.05A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEPM417519CB Input Voltage: 90~264 Output Voltage: 19, 5, -12, 12 Output Current: 5.21A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEPM417524CA Input Voltage: 90~264 Output Voltage: 24, 5, -12, 5 Output Current: 5.58A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEPM417524CB Input Voltage: 90~264 Output Voltage: 24, 5, -12, 12 Output Current: 4.12A, 2A, 0.5A, 5A Output Power (W): 175 No. Outputs: M Case: Open Frame Get a Quote
PSEPM217647A0 Input Voltage: 90~264 Output Voltage: 47, 5 Output Current: 3.54A, 2A Output Power (W): 176 No. Outputs: D Case: Open Frame Get a Quote
PSEPM217755A0 Input Voltage: 90~264 Output Voltage: 55, 5 Output Current: 3.03A, 2A Output Power (W): 177 No. Outputs: D Case: Open Frame Get a Quote
PSEPM11801800 Input Voltage: 90~264 Output Voltage: 18 Output Current: 10A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11801900 Input Voltage: 90~264 Output Voltage: 19 Output Current: 9.47A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11802200 Input Voltage: 90~264 Output Voltage: 22 Output Current: 8.18A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11802300 Input Voltage: 90~264 Output Voltage: 23 Output Current: 7.82A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11802400 Input Voltage: 90~264 Output Voltage: 24 Output Current: 7.50A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11803400 Input Voltage: 90~264 Output Voltage: 34 Output Current: 5.29A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11803600 Input Voltage: 90~264 Output Voltage: 36 Output Current: 5A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11804600 Input Voltage: 90~264 Output Voltage: 46 Output Current: 3.91A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11804700 Input Voltage: 90~264 Output Voltage: 47 Output Current: 3.83A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11804800 Input Voltage: 90~264 Output Voltage: 48 Output Current: 3.75A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11805400 Input Voltage: 90~264 Output Voltage: 54 Output Current: 3.33A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11805500 Input Voltage: 90~264 Output Voltage: 55 Output Current: 3.27A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM11805600 Input Voltage: 90~264 Output Voltage: 56 Output Current: 3.21A Output Power (W): 180 No. Outputs: S Case: Open Frame Get a Quote
PSEPM218012A0 Input Voltage: 90~264 Output Voltage: 12, 5 Output Current: 14.16A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218019A0 Input Voltage: 90~264 Output Voltage: 19, 5 Output Current: 8.94A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218024A0 Input Voltage: 90~264 Output Voltage: 24, 5 Output Current: 7.08A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218036A0 Input Voltage: 90~264 Output Voltage: 36, 5 Output Current: 4.72A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218048A0 Input Voltage: 90~264 Output Voltage: 48, 5 Output Current: 3.54A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218056A0 Input Voltage: 90~264 Output Voltage: 56, 5 Output Current: 3.03A, 2A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218012B0 Input Voltage: 90~264 Output Voltage: 12, -12 Output Current: 14.50A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218019B0 Input Voltage: 90~264 Output Voltage: 19, -12 Output Current: 9.15A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218024B0 Input Voltage: 90~264 Output Voltage: 24, -12 Output Current: 7.25A, 0.5 Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218024DB Input Voltage: 90~264 Output Voltage: 24, 12 Output Current: 6A, 3A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218036B0 Input Voltage: 90~264 Output Voltage: 36, -12 Output Current: 4.83A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218048B0 Input Voltage: 90~264 Output Voltage: 48, -12 Output Current: 3.62A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM218056B0 Input Voltage: 90~264 Output Voltage: 56, -12 Output Current: 3.10A, 0.5A Output Power (W): 180 No. Outputs: D Case: Open Frame Get a Quote
PSEPM11953500 Input Voltage: 90~264 Output Voltage: 35 Output Current: 5.57A Output Power (W): 195 No. Outputs: S Case: Open Frame Get a Quote
PSEPM12001900 Input Voltage: 90~264 Output Voltage: 19 Output Current: 10.52A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEPM12002400 Input Voltage: 90~264 Output Voltage: 24 Output Current: 8.33A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEPM12003600 Input Voltage: 90~264 Output Voltage: 36 Output Current: 5.56A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEPM12004800 Input Voltage: 90~264 Output Voltage: 48 Output Current: 4.16A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
PSEPM12005600 Input Voltage: 90~264 Output Voltage: 56 Output Current: 3.57A Output Power (W): 200 No. Outputs: S Case: Open Frame Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Output
Output Voltage: -12, 5, 9, 10, 11, 12, 15, 16, 17, 18, 19, 22, 23, 24, 34, 35, 36 ,46, 47, 48, 54, 55, 56
Output Current: 0.5A, 2A, 2.48A, 2.49A, 2.5A, 2.57A, 2.59A, 2.63A, 2.67A, 2.69A, 2.72A, 2.77A, 2.85A, 2.87A, 2.89A, 2.91A, 2.97A, 3A, 3.03A, 3.04A, 3.08A, 3.10A, 3.12A, 3.19A, 3.21A, 3.22A, 3.26A, 3.27A, 3.33A, 3.54A, 3.57A, 3.62A, 3.64A, 3.72A, 3.75A, 3.82A, 3.83A, 3.85A, 3.88A, 3.91A, 3.94A, 4A, 4.09A, 4.11A, 4.12A, 4.13A, 4.16A, 4.21A, 4.28A, 4.31A, 4.34A, 4.36A, 4.37A, 4.41A, 4.50A, 4.52A, 4.54A, 44.72A, 4.77A, 4.78A, 4.79A, 4.83A, 5A, 5.11A, 5.21A, 5.22A, 5.29A, 5.39A, 5.4A, 5.44A, 5.50A, 5.52A, 5.56A, 5.57A, 5.58A, 5.68A, 5.72A, 5.73A, 5.78A, 5.8A, 5.81A, 5.82A, 5.83A, 5.88A, 5.94A, 6A, 6.05A 6.08A, 6.13A, 6.25A, 6.41A, 6.52A, 6.62A, 6.63A, 6.81A, 6.93A, 7A, 7.05A, 7.08A, 7.25A, 7.31A, 7.33A, 7.35A, 7.36A, 7.37A, 7.38A, 7.4A, 7.50A, 7.57A, 7.81A, 7.82A, 7.89A, 8.18A, 8.23A, 8.33A, 8.36A, 8.37A, 8.38A, 8.40A, 8.9A, 8.94A, 8.95A, 9A, 9.08A, 9.15A, 9.37A, 9.47A, 9.50A, 9.54A, 9.58A, 9.90A, 10A, 10.45A, 10.52A, 10.81A, 10.90A, 11.16A, 11.36A, 11.50A, 11.60A, 11.63A, 11.66A, 11.67A, 12A, 12.22A, 12.50A, 13.25A, 13.27A, 13.30A, 14.16A, 14.17A, 14.5A, 15A, 18A, 20A
Output Power (Watts): 100, 115, 110, 120, 122, 125, 126, 127, 128, 130, 132, 135, 138, 140, 141, 142, 143, 144, 145, 146, 147, 149, 150, 152, 153, 158, 160, 162, 165, 166, 167, 168, 169, 170, 171, 172, 173, 174, 175, 176, 177, 180, 195, 200
Short Circuit Protection: Latch Off or Automatic Recovery
Over Voltage Protection: Latch Off or Automatic Recovery
General
Efficiency: ≥85%
Environmental
Operating Temperature: 0 to 50ºC
Storage Temperature: -20 to 85ºC
Physical
Weight: 15.87oz (450g)
Dimensions: 5in x 3in x 1.5in (127mm x 76.3mm x 38.2mm)
Notes & safety
Notes: 1. Ripple & noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1uF ceramic capacitor & parallel with 47uF aluminum capacitor at full load and nominal line.
2. Certificates listed are for reference only. Contact factory for more details.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/CUL, CB, CE, FCC
RoHS Compliance: Yes
Energy Star Compliance: Level V

Get a Quote

Request information for from Wall Industries.

Fields marked with an * are required
Medical Military Railway Lighting Industrial Level VI

Custom Solutions

Wall Industries, Inc. offers fully custom power design capabilities. Our team of electrical and mechanical power design engineers will utilize proven design topologies and concepts to create a solution to your power requirements. If you don’t have a specification, Wall’s engineering team will assist you in determining what your requirements are and how best to provide a solution.

Learn More
