PSEP1065

The PSEP1065 series of AC/DC open frame power supplies offers 30-65 watts of output power in a compact 4” x 2” x 1.24” package. This series consists of single, dual, and triple outputs with a wide input voltage range of 90-264VAC. Each model in this series is RoHS compliant and offers over voltage, over current, and short circuit protection. This series has also been 100% burn-in and hi-pot tested and offers UL/CUL, CB, and FCC safety approvals.

• Wide Input Voltage Range of 90-264VAC • High Efficiency Up to 88% • RoHS Compliant • 100% Burn-In and Hi-Pot Tested • MTBF >30,000 Hours • 500 pc MOQ for Production • Single, Dual, and Triple Outputs Available • Over Voltage, Over Current, and Short Circuit Protection • Meets CEC Level V • Output Power Up to 65 Watts • Open Frame Design • UL/CUL, CB, and FCC Safety Approvals

Get a Quote Request a Sample Custom Solutions

Models
Specifications

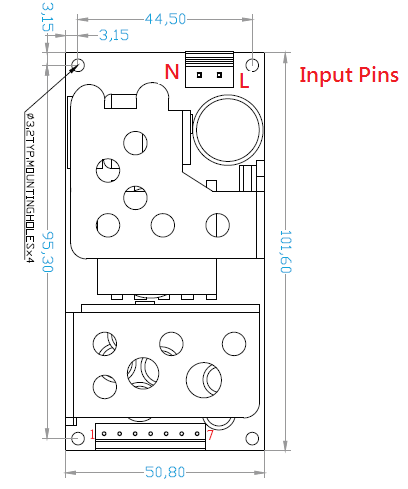

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSEP1030-0500	Input Voltage: 90~264	Output Voltage: 5	Output Current: 6.00A	Output Power (W): 30	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-1200	Input Voltage: 90~264	Output Voltage: 12	Output Current: 2.50A	Output Power (W): 30	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-1500	Input Voltage: 90~264	Output Voltage: 15	Output Current: 2.00A	Output Power (W): 30	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-1900	Input Voltage: 90~264	Output Voltage: 19	Output Current: 1.57A	Output Power (W): 30	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-2400	Input Voltage: 90~264	Output Voltage: 24	Output Current: 1.25A	Output Power (W): 30	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-12D0	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 2.29A, 0.5A	Output Power (W): 30	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-15D0	Input Voltage: 90~264	Output Voltage: 15, 5	Output Current: 1.83A, 0.5A	Output Power (W): 30	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-19D0	Input Voltage: 90~264	Output Voltage: 19, 5	Output Current: 1.44A, 0.5A	Output Power (W): 30	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-24D0	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.14A, 0.5A	Output Power (W): 30	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-12E2	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 1.66A, 2A	Output Power (W): 30	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1030-24E2	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 0.83A, 2A	Output Power (W): 30	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-0500	Input Voltage: 90~264	Output Voltage: 5	Output Current: 8.00A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-1200	Input Voltage: 90~264	Output Voltage: 12	Output Current: 3.33A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-1500	Input Voltage: 90~264	Output Voltage: 15	Output Current: 2.66A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-1900	Input Voltage: 90~264	Output Voltage: 19	Output Current: 2.10A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-2400	Input Voltage: 90~264	Output Voltage: 24	Output Current: 1.66A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-3600	Input Voltage: 90~264	Output Voltage: 36	Output Current: 1.11A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-4800	Input Voltage: 90~264	Output Voltage: 48	Output Current: 0.83A	Output Power (W): 40	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-12D0	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 3.12A, 0.5A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-15D0	Input Voltage: 90~264	Output Voltage: 15, 5	Output Current: 2.50A, 0.5A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-19D0	Input Voltage: 90~264	Output Voltage: 19, 5	Output Current: 1.97A, 0.5A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-24D0	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.56A, 0.5A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-12E2	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 2.50A, 2A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-24E2	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.25A, 2A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-12E3	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 2.08A, 3A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1040-24E3	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.04A, 3A	Output Power (W): 40	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-0500	Input Voltage: 90~264	Output Voltage: 5	Output Current: 9.00A	Output Power (W): 45	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-1200	Input Voltage: 90~264	Output Voltage: 12	Output Current: 3.75A	Output Power (W): 45	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-1500	Input Voltage: 90~264	Output Voltage: 15	Output Current: 3.00A	Output Power (W): 45	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-1900	Input Voltage: 90~264	Output Voltage: 19	Output Current: 2.36A	Output Power (W): 45	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-2400	Input Voltage: 90~264	Output Voltage: 24	Output Current: 1.87A	Output Power (W): 45	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-3600	Input Voltage: 90~264	Output Voltage: 36	Output Current: 1.25A	Output Power (W): 45	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-4800	Input Voltage: 90~264	Output Voltage: 48	Output Current: 0.93A	Output Power (W): 45	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-12D0	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 3.54A, 0.5A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-15D0	Input Voltage: 90~264	Output Voltage: 15, 5	Output Current: 2.83A, 0.5A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-19D0	Input Voltage: 90~264	Output Voltage: 19, 5	Output Current: 2.23A, 0.5A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-24D0	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.77A, 0.5A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-12E2	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 2.91A, 2A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-24E2	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.45A, 2A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-12E3	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 2.50A, 3A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-24E3	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.25A, 3A	Output Power (W): 45	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-12T2	Input Voltage: 90~264	Output Voltage: 12, 5, -12	Output Current: 2.61A, 2A, 0.3A	Output Power (W): 45	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-12T3	Input Voltage: 90~264	Output Voltage: 12, 5, -12	Output Current: 2.20A, 3A, 0.3A	Output Power (W): 45	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-24T2	Input Voltage: 90~264	Output Voltage: 24, 5, -12	Output Current: 1.30A, 2A, 0.3A	Output Power (W): 45	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1045-24T3	Input Voltage: 90~264	Output Voltage: 24, 5, -12	Output Current: 1.10A, 2A, 0.3A	Output Power (W): 45	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-0500	Input Voltage: 90~264	Output Voltage: 5	Output Current: 10.00A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-1200	Input Voltage: 90~264	Output Voltage: 12	Output Current: 4.16A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-1500	Input Voltage: 90~264	Output Voltage: 15	Output Current: 3.33A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-1900	Input Voltage: 90~264	Output Voltage: 19	Output Current: 2.63A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-2400	Input Voltage: 90~264	Output Voltage: 24	Output Current: 2.08A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-3600	Input Voltage: 90~264	Output Voltage: 36	Output Current: 1.38A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-4800	Input Voltage: 90~264	Output Voltage: 48	Output Current: 1.04A	Output Power (W): 50	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-12D0	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 3.95A, 0.5A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-15D0	Input Voltage: 90~264	Output Voltage: 15, 5	Output Current: 3.16A, 0.5A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-19D0	Input Voltage: 90~264	Output Voltage: 19, 5	Output Current: 2.50A, 0.5A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-24D0	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.97A, 0.5A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-12E3	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 2.91A, 3A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-24E3	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.45A, 3A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-12E4	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 2.50A, 4A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-24E4	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.25A, 4A	Output Power (W): 50	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-12T3	Input Voltage: 90~264	Output Voltage: 12, 5, -12	Output Current: 2.61A, 3A, 0.3A	Output Power (W): 50	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-12T4	Input Voltage: 90~264	Output Voltage: 12, 5, -12	Output Current: 2.20A, 4A, 0.3A	Output Power (W): 50	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-24T3	Input Voltage: 90~264	Output Voltage: 24, 5, -12	Output Current: 1.30A, 3A, 0.3A	Output Power (W): 50	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1050-24T4	Input Voltage: 90~264	Output Voltage: 24, 5, -12	Output Current: 1.10A, 4A, 0.3A	Output Power (W): 50	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1060-1200	Input Voltage: 90~264	Output Voltage: 12	Output Current: 5.00A	Output Power (W): 60	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1060-1500	Input Voltage: 90~264	Output Voltage: 15	Output Current: 4.00A	Output Power (W): 60	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1060-1900	Input Voltage: 90~264	Output Voltage: 19	Output Current: 3.15A	Output Power (W): 60	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1060-2400	Input Voltage: 90~264	Output Voltage: 24	Output Current: 2.50A	Output Power (W): 60	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1060-3600	Input Voltage: 90~264	Output Voltage: 36	Output Current: 1.66A	Output Power (W): 60	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1060-4800	Input Voltage: 90~264	Output Voltage: 48	Output Current: 1.25A	Output Power (W): 60	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-1200	Input Voltage: 90~264	Output Voltage: 12	Output Current: 5.41A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-1500	Input Voltage: 90~264	Output Voltage: 15	Output Current: 4.33A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-1900	Input Voltage: 90~264	Output Voltage: 19	Output Current: 3.42A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-2400	Input Voltage: 90~264	Output Voltage: 24	Output Current: 2.70A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-3600	Input Voltage: 90~264	Output Voltage: 36	Output Current: 1.08A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-4800	Input Voltage: 90~264	Output Voltage: 48	Output Current: 1.35A	Output Power (W): 65	No. Outputs: S	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-12D0	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 5.20A, 0.5A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-15D0	Input Voltage: 90~264	Output Voltage: 15, 5	Output Current: 4.16A, 0.5A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-19D0	Input Voltage: 90~264	Output Voltage: 19, 5	Output Current: 3.28A, 0.5A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-24D0	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 2.60A, 0.5A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-12E3	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 4.16A, 3A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-24E3	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 2.08A, 3A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-12E4	Input Voltage: 90~264	Output Voltage: 12, 5	Output Current: 3.75A, 4A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-24E4	Input Voltage: 90~264	Output Voltage: 24, 5	Output Current: 1.87A, 4A	Output Power (W): 65	No. Outputs: D	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-12T3	Input Voltage: 90~264	Output Voltage: 12, 5, -12	Output Current: 3.86A, 3A, -12A	Output Power (W): 65	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-12T4	Input Voltage: 90~264	Output Voltage: 12, 5, -12	Output Current: 3.45A, 4A, 0.3A	Output Power (W): 65	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-24T3	Input Voltage: 90~264	Output Voltage: 24, 5, -12	Output Current: 1.93A, 3A, 0.3A	Output Power (W): 65	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote
PSEP1065-24T4	Input Voltage: 90~264	Output Voltage: 24, 5, -12	Output Current: 1.72A, 4A, 0.3A	Output Power (W): 65	No. Outputs: T	Case: Open Frame	Size: 4" x 2" x 1.24"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	90~264
Output
Output Voltage:	-12, 5, 12, 15, 19, 24, 36, 48
Output Current:	0.5A, 0.83A, 0.93A, 1.04A, 1.08A, 1.10A, 1.11A, 1.25A, 1.30A, 1.35A, 1.38A, 1.56A, 1.66A, 1.14A, 1.44A, 1.45A, 1.57A, 1.72A, 1.77A, 1.83A, 1.87A, 1.93A, 1.97A, 2A, 2.08A, 2.10A, 2.20A, 2.29A, 2.23A, 2.36A, 2.50A, 2.60A, 2.61A, 2.63A, 2.66A, 2.70A, 2.83A, 2.91A, 3A, 3.12A, 3.15A, 3.16A, 3.28A, 3.33A, 3.42A, 3.45A, 3.54A, 3.75A, 3.86A, 3.95A, 4A, 4.16A, 4.33A, 5A, 5.20A, 5.41A, 6A, 8A, 9A, 10A
Output Power (Watts):	30, 40, 45, 50, 60, 65
Short Circuit Protection:	Automatic Recovery
Over Voltage Protection:	Latch Off or Automatic Recovery
General
Efficiency:	88% Max.
Environmental
Operating Temperature:	0 to 50ºC
Storage Temperature:	-20 to 85ºC
Physical
Weight:	7.05oz (200g)
Dimensions:	4in x 2in x 1.24in (101.6mm x 50.8mm x 31.50mm)
Notes & safety
Notes:	(1) Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.1µF ceramic capacitor & parallel with 47µF aluminum capacitor at full load and nominal line. (2) Efficiency depends on model. Meets CEC Level V. (3) Line Regulation is defined by changing ±10% of input voltage from nominal line at rated line. (4) This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL/CUL, CB, FCC
RoHS Compliance:	Yes
Energy Star Compliance:	Level V
