PSDG-240

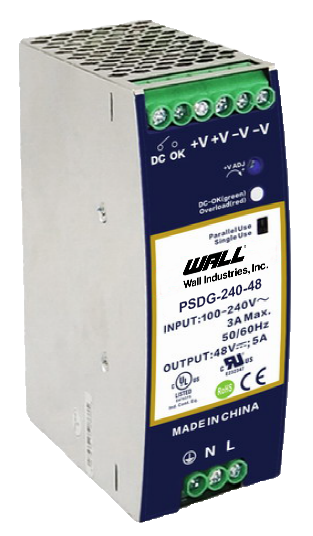

The PSDG-240 series of DIN rail power supplies offers up to 240 watts of output power (360 watts peak load capacity) in an ultra-slim 4.69” x 1.77” x 4.88” package. This series consists of single output models with a universal input voltage range of 85~264VAC and high efficiency. Each model in this series features built-in current sharing function and limiting current, built-in DC OK relay contact, easy fuse tripping, as well as over load, over voltage, over temperature and short circuit protection. This series can be installed on TS-32/7.5 or TS-35/15, has UL508, UL60950, and EN60950 safety approvals, and has been 100% full load burn-in tested. Please contact factory for ordering information.

• Universal Input Voltage Range of 85~264VAC (127~375VDC) • High Efficiency • Excellent Partial Load Efficiency • Built-In Current Sharing Function and Limiting Current • Supports 1+1 or N+1 Redundant System (Suggested to Use Redundancy Models) • Built-In Active PFC • Built-In DC OK Relay Contact • Can be Installed on TS-32/7.5 or TS-35/15 • Easy Fuse Tripping due to High Overload Current • Over Load, Over Voltage, Over Temperature and Short Circuit Protection • 150% (360W) Peak Load Capacity • Suitable for Critical Application • 100% Full Load Burn-In Test • Ultra Slim • UL508, UL60950 and EN60950 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSDG-240-24 Input Voltage: 85~264 Output Voltage: 24 Output Current: 10A Output Power (W): 240 No. Outputs: S Case: DIN Rail Size: 4.69" x 1.77" x 4.88" Get a Quote
PSDG-240-48 Input Voltage: 85~264 Output Voltage: 48 Output Current: 5A Output Power (W): 240 No. Outputs: S Case: DIN Rail Size: 4.69" x 1.77" x 4.88" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 110/230
Input Voltage Range: 85~264
PFC: @110VAC: 0.99
@230VAC: 0.95
Input Frequency: 47 to 65 Hz
Output
Output Voltage: 24, 48
Voltage Accuracy: ±3.0%
Output Current: 5A, 10A
Output Power (Watts): 240
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 24V Model: 29-33V
48V Model: 58-63V
Thermal Protection: 105±5ºC
General
Efficiency: 94%
Environmental
Operating Temperature: -25 to 70ºC
Storage Temperature: -40 to 85ºC
Physical
Weight: 30.86oz (875g)

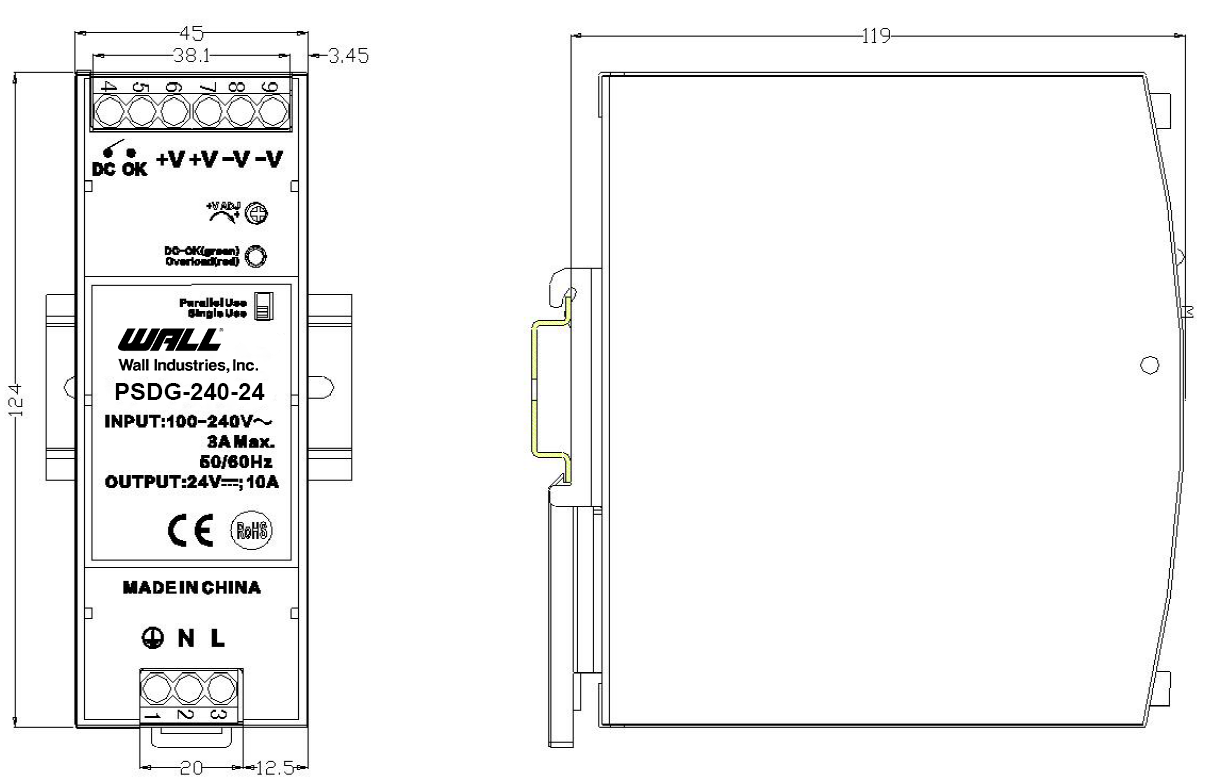

Dimensions: 4.69in x 1.77in x 4.88in (119mm x 45mm x 124mm)
Notes & safety
Notes: 1. The power supply is considered as a component that will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. Contact factory for more information.
2. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL508, UL60950, EN60950
