PSDAL40

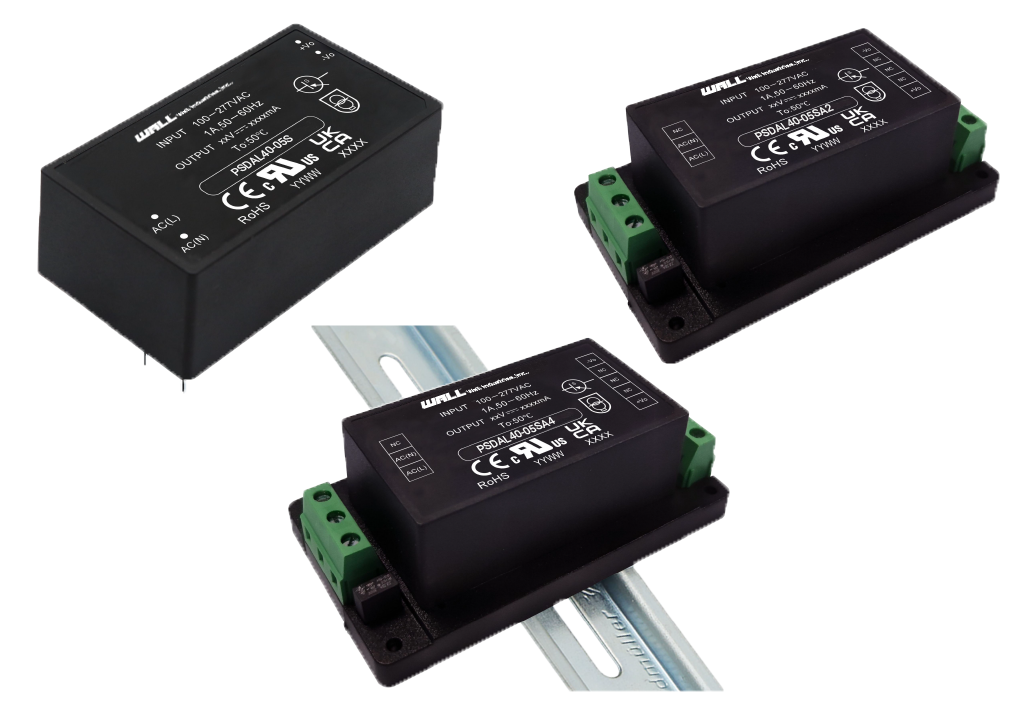

The PSDAL40 series of AC/DC converters offers up to 40 watts of output power in either a horizontal, chassis mount, or DIN rail package. This series consists of single output models with an ultra-wide 85-305VDC (100~430VDC) input range. Features of this series include short circuit, over current, and over voltage protection and high efficiency. This series is RoHS compliant, has IEC/UL62368-1, EN62368-1, and BS EN 62368-1 safety approvals, and it is designed to meet IEC/EN60335-1, IEC/EN62477-1, EN61558-1 safety approvals.
X: Blank for Through Hole Package, "A2" for Chassis Mount package, “A4” for DIN Rail package.
PSDAL40-12SA2 = 12V Chassis Mount Model
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSDAL40-05Sx | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 7000mA | Output Power (W): 35 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.74" x 1.54" x 0.95" | Get a Quote |
| PSDAL40-12Sx | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 3330mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.74" x 1.54" x 0.95" | Get a Quote |
| PSDAL40-15Sx | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 2666mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.74" x 1.54" x 0.95" | Get a Quote |
| PSDAL40-24Sx | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 1670mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.74" x 1.54" x 0.95" | Get a Quote |
| PSDAL40-48Sx | Input Voltage: 85~305 | Output Voltage: 48 | Output Current: 833mA | Output Power (W): 40 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 2.74" x 1.54" x 0.95" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 833mA, 1670mA, 2666mA, 3330mA, 7000mA |
| Output Power (Watts): | 35, 40 |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | Up to 90% |
| Isolation: | 4200VAC |
| Environmental | |
| Operating Temperature: | -40 to 85°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | Horizontal Package: 3.5oz (100g) Chassis Mount Package: 5.19oz (147g) DIN Rail Mount Package: 6.7oz (190g) |

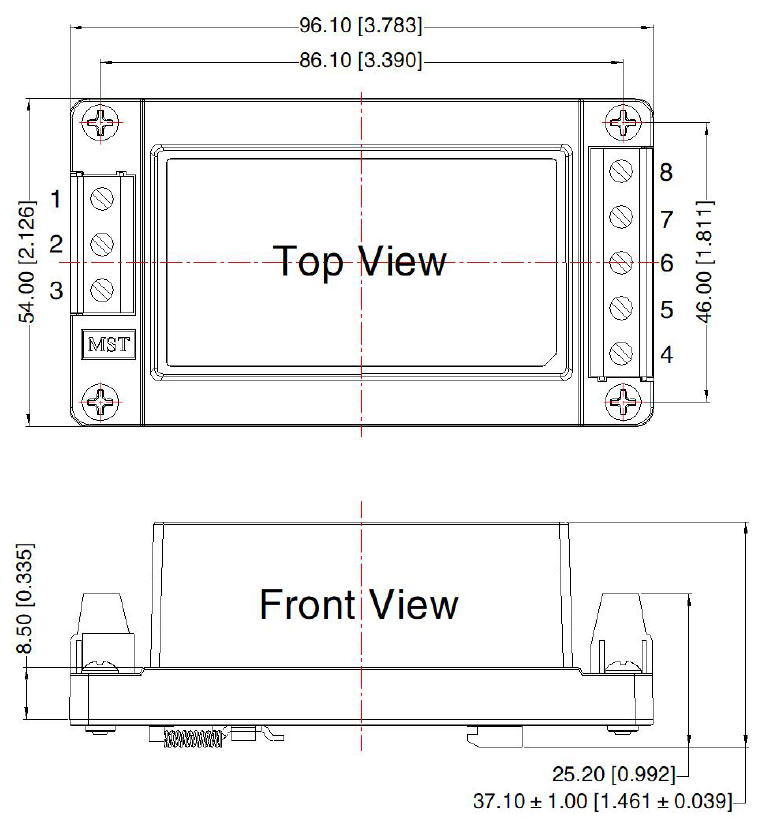

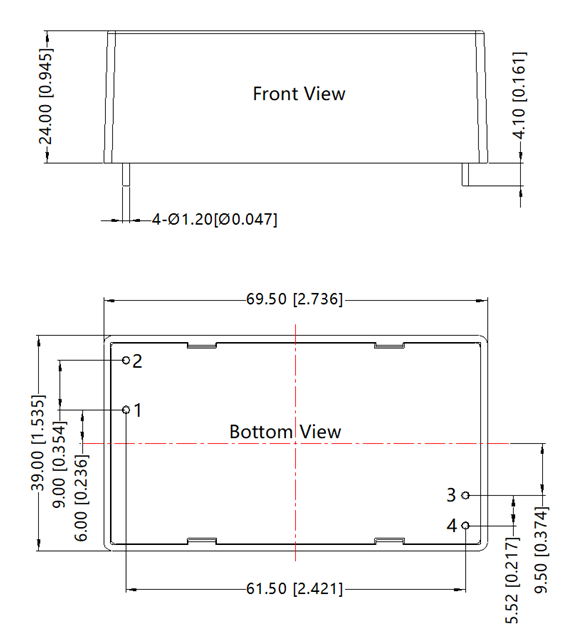

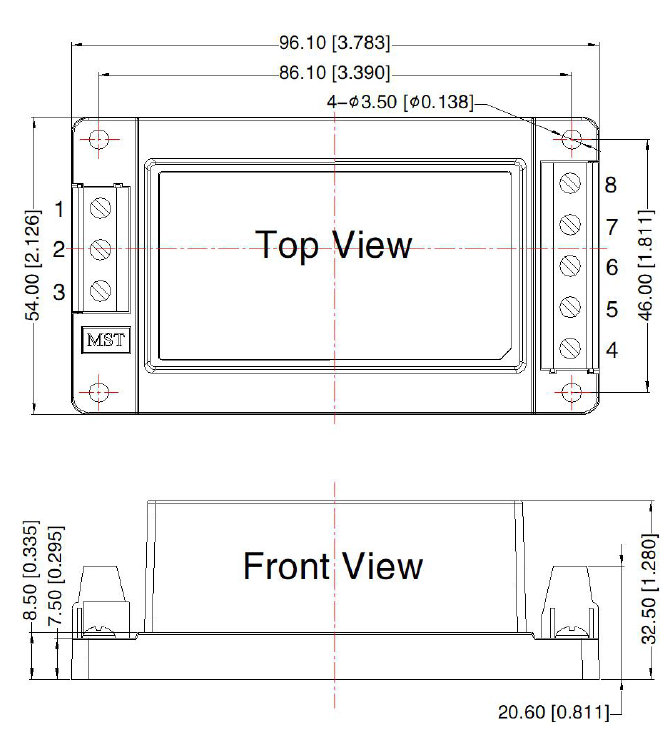

| Dimensions: | Horizontal Package: 2.74in x 1.54in x 0.95in (69.5mm x 39mm x 24mm) Chassis Mount Package : 3.78in x 2.13in x 1.22in (96.1mm x 54mm x 31mm) DIN Rail Mount Package: 3.78in x 2.13in x 1.40in (96.1mm x 54mm x 35.6mm) |
| Case Material: | Black Plastic, Flame-Retardant and Heat-Resistant (UL94V-0) |
| Notes & safety | |
| Notes: | 1. Parallel cable method is used for ripple and noise test, output parallel 10uF electrolytic capacitor and 1uF ceramic capacitor, please contact factory for more information. 2. If product is not operated within required load range, it is not guaranteed that the product performance will comply with all parameters in the datasheet. 3. Products classified according to ISO14001 and related environmental laws and regulations. It should be handled by qualified units. 4. Customization available. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL62368, EN62368 & UKCA |
| RoHS Compliance: | Yes |
