PSDAL10
The PSDAL10 series of AC/DC converters offers up to 10 watts of output power in a compact horizontal, chassis mount, or DIN rail package. This series consists of single output models with an ultra-wide 85-305VDC (100~430VDC) input range. Features of this series include short circuit, over current, and over voltage protection and the plastic case meets UL94V-0 flammability. This series is RoHS compliant and has IEC/UL62368-1, EN61558, EN60335-1 safety approvals & EN62368-1 (Report).
• Ultra-Wide Input Voltage Range 85~305VAC (100~430VDC) • High Efficiency • RoHS Compliant • Over Voltage Category OVC III (Meets EN61558) • Short Circuit, Over Current, and Over Voltage Protection • EMI Performance Meets CISPR32/EN55032 Class B, EN55014 • IEC/UL62368-1, EN61558, EN60335-1 Safety Approvals & EN62368-1 (Report)
Part Number Setup:
X: Blank for Through Hole Package, "A2" for Chassis Mount package, “A4” for DIN Rail package.
X: Blank for Through Hole Package, "A2" for Chassis Mount package, “A4” for DIN Rail package.
Example:
PSDAL10-12SA2 = 12V Chassis Mount Model
PSDAL10-12SA2 = 12V Chassis Mount Model
| Model Number | Input Voltage | Output Voltage | Output Current | Output Power (W) | No. Outputs | Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSDAL10-03Sx | Input Voltage: 85~305 | Output Voltage: 3.3 | Output Current: 2600mA | Output Power (W): 8.6 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1.56" x 1" x 0.83" | Get a Quote |
| PSDAL10-05Sx | Input Voltage: 85~305 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1.56" x 1" x 0.83" | Get a Quote |
| PSDAL10-09Sx | Input Voltage: 85~305 | Output Voltage: 9 | Output Current: 1100mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1.56" x 1" x 0.83" | Get a Quote |
| PSDAL10-12Sx | Input Voltage: 85~305 | Output Voltage: 12 | Output Current: 830mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1.56" x 1" x 0.83" | Get a Quote |
| PSDAL10-15Sx | Input Voltage: 85~305 | Output Voltage: 15 | Output Current: 660mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1.56" x 1" x 0.83" | Get a Quote |
| PSDAL10-24Sx | Input Voltage: 85~305 | Output Voltage: 24 | Output Current: 410mA | Output Power (W): 10 | No. Outputs: S | Case: Through Hole, Chassis Mount, DIN Rail | Size: 1.56" x 1" x 0.83" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~305 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24 |
| Voltage Accuracy: | ±2% |
| Output Current: | 2600mA, 2000mA, 1100mA, 830mA, 660mA, 410mA |
| Output Power (Watts): | 8.6W, 10W |
| Short Circuit Protection: | Hiccup, Continuous, Self-Recovery |
| Over Voltage Protection: | See Data Sheet |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to +85°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | Horizontal Package: 1.2oz (34g) Chassis Mounting: 1.90oz (54g) DIN Rail Mounting: 2.61oz (74g) |

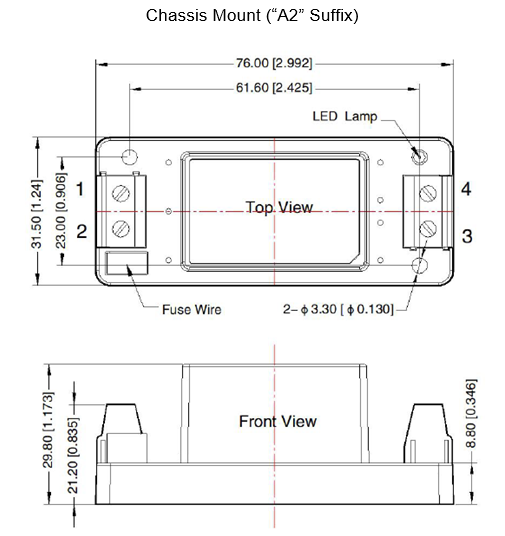

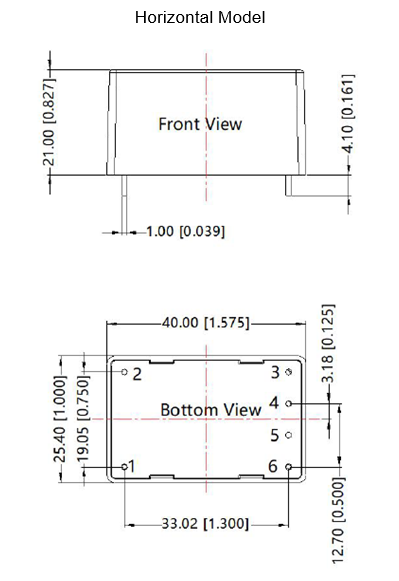

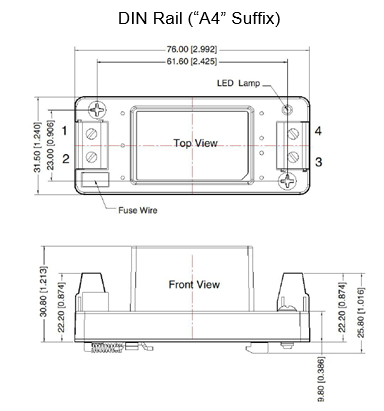

| Dimensions: | Horizontal Package: 1.56in x 1in x 0.83in (40mm x 25.4mm x 21mm) Chassis Mounting: 2.99in x 1.24in x 1.17in (76mm x 31.5mm x 29.8mm) DIN Rail Mounting: 2.99in x 1.24in x 1.35in (76mm x 31.5mm x 34.4mm) |
| Notes & safety | |
| Notes: | 1. Chassis mount and DIN rail models are available for this series. To indicate chassis mount model, add “A2” to product model number. To indicate DIN Rail model, add “A4” to product model number. 2. Chassis Mount & DIN Rail package series include fuse. 3. Tip and barrel method is used for ripple and noise test, output parallel 10uF electrolytic capacitor and 1uF ceramic capacitor, please contact factory for more information. 4. This product is Listed to applicable standards and requirements by UL. 5. When the output terminal of the product needs to be connected to PE through a Y capacitor or close to the metal frame. Refer to Fig. 3 for the recommended circuit. 6. If product is not operated within required load range, it is not guaranteed that the product performance will comply with all parameters in the datasheet. 7. Products classified according to ISO14001 and related environmental laws and regulations. It should be handled by qualified units. 8. Customization available. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/UL62368-1, EN61558-1, EN60335-1 Safety Approval & EN62368-1 (Report) |
| RoHS Compliance: | Yes |
