PSAVC
The PSAVC series of AC/DC PCB mount power supplies offers up to 15 watts of output power in a compact 1.62” x 1.07” x 0.75” package. This series consists of single output models with an input voltage range of 90-264VAC. Each model in this series has over power, over voltage, and short circuit protection and CE, UL, cUL safety approvals. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAVC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2700mA | Output Power (W): 13.5 | No. Outputs: S | Case: PCB Mount | Size: 1.62" x 1.07" x 0.75" | Get a Quote |
| PSAVC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1250mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 1.62" x 1.07" x 0.75" | Get a Quote |
| PSAVC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 1000mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 1.62" x 1.07" x 0.75" | Get a Quote |
| PSAVC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 625mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 1.62" x 1.07" x 0.75" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 63Hz |
| Output | |
| Output Voltage: | 5, 12, 15, 24 |
| Voltage Accuracy: | ±2 |
| Output Current: | 625mA, 1000mA, 1250mA, 2700mA |
| Output Power (Watts): | 13.5, 15 |
| Short Circuit Protection: | Hiccup Mode, Indefinite (Automatic Recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 85% |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | -40 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 1.41oz (40g) |

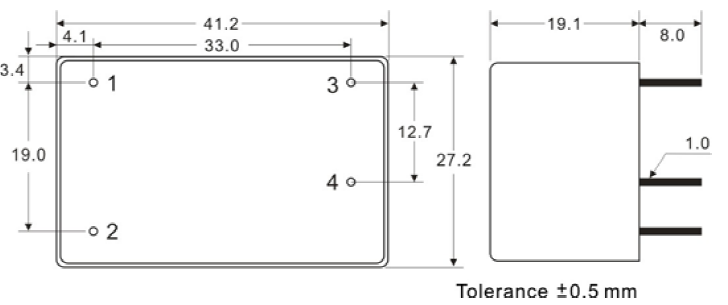

| Dimensions: | 1.62in x 1.07in x 0.75in (41.2mm x 27.2mm x 19.1mm) |
| Case Material: | Plastic Resin (Flammability to UL 94V-0) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. 2. Safety approvals cover frequency 47-63Hz. 3. Natural convection is about 20LFM but is not equal to still air (0 LFM) 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CE, UL, cUL |
