The PSAQF600 series of AC/DC switching power supplies provides up to 600 Watts of output power in a 9.0” x 4.13” x 1.72” enclosed package. This series consists of single output models with a universal input voltage range of 90-264VAC (120-370VDC). Some features include 90~93% high efficiency, power factor > 0.95, remote on/off control, and current sharing and power good functions. All supplies are short circuit, over load, over voltage, and over temperature protected. The PSAQF600 series is RoHS compliant and has UL/cUL 60950-1 safety approvals.

• RoHS Compliant • 600 Watts Output Power • High Power Density • Single Outputs • PFC Function, PF > 0.95 • 90~93% High Efficiency • Built-in Fan • Remote On/Off Control • Current Sharing Function • Power Good Function • Universal Input Voltage Range: 90-264VAC (120-370VDC) • Short Circuit, Over Load, Over Voltage, and Over Temperature Protection • CE and UL/cUL 60950-1 Approvals
Power (W)
Case Size
PSAQF600-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 45A Output Power (W): 540 No. Outputs: S Case: Enclosed with Fan Size: 9" x 4.13" x 1.72" Get a Quote
PSAQF600-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 25A Output Power (W): 600 No. Outputs: S Case: Enclosed with Fan Size: 9" x 4.13" x 1.72" Get a Quote
PSAQF600-48S Input Voltage: 90~264 Output Voltage: 48 Output Current: 12.5A Output Power (W): 600 No. Outputs: S Case: Enclosed with Fan Size: 9" x 4.13" x 1.72" Get a Quote
PSAQF600-54S Input Voltage: 90~264 Output Voltage: 54 Output Current: 11.1A Output Power (W): 600 No. Outputs: S Case: Enclosed with Fan Size: 9" x 4.13" x 1.72" Get a Quote
Specification Value
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Remote ON/OFF: Yes
PFC: > 0.99 at 115VAC> 0.95 at 230VAC
Input Frequency: 47-63Hz
Output Voltage: 12, 24, 48, 54
Voltage Accuracy: ±2%
Output Current: 45A, 25A, 12.5A, 11.1A
Output Power (Watts): 540, 600
Output Trim/Adjustability: ±5%
Short Circuit Protection: Latch Off
Over Voltage Protection: Automatic Recovery
Thermal Protection: Automatic Recovery
Efficiency: Up to 93%
Isolation: 3000VAC
Operating Temperature: -10 to 70°C
Storage Temperature: -25 to 85°C
Weight: 2.26 lbs (1024g)

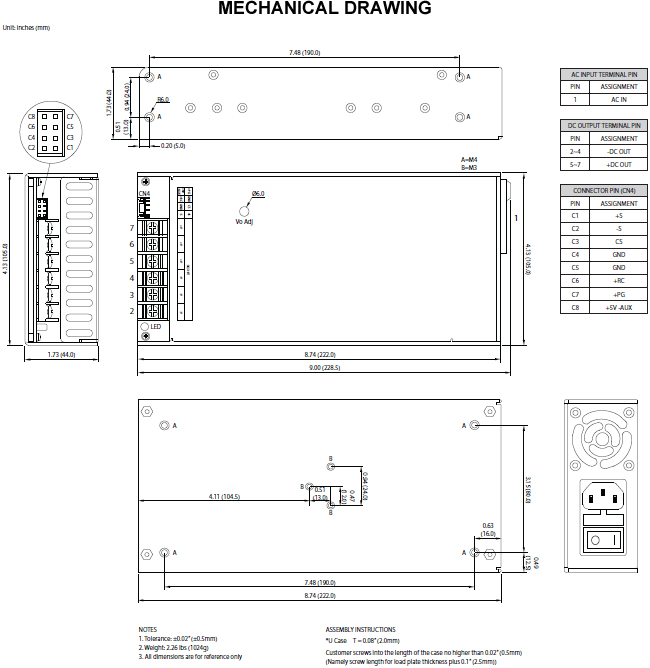

Dimensions: 9.0 x 4.13 x 1.72 inches (228.5 x 105.0 x 44.0 mm)
Notes & safety
Notes: 1. The PSAQF600 series requires a minimum load on the output to maintain all specified regulations. Operation under no-load conditions will not damage these devices; however they may not meet all listed specifications.
2. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: CE, UL/cUL 60950-1
RoHS Compliance: Yes
