PSAQF360
The PSAQF360 series of AC/DC switching power supplies offers 360W of output power with 18CFM fan and 240W with free air convection. All models have a single output and a universal input. Some features include 3000VAC I/O isolation and PFC function. These supplies also have UL/cUL and CE safety approvals and are RoHS compliant. All models are protected against short circuit, over power, over voltage, and over temperature conditions. Models are available in U-Chassis (Type U), enclosed with rear-side built-in fan (Type E), and enclosed with top-side built-in fan (Type F) designs.
● Single Output
● RoHS Compliant
● Ultra Compact Size
● High Power Density
● PFC Function > 0.95
● 3000VAC I/O Isolation
● Leakage Current < 300µA
● High Efficiency up to 93%
● 12VDC Built-in Cooling Fan

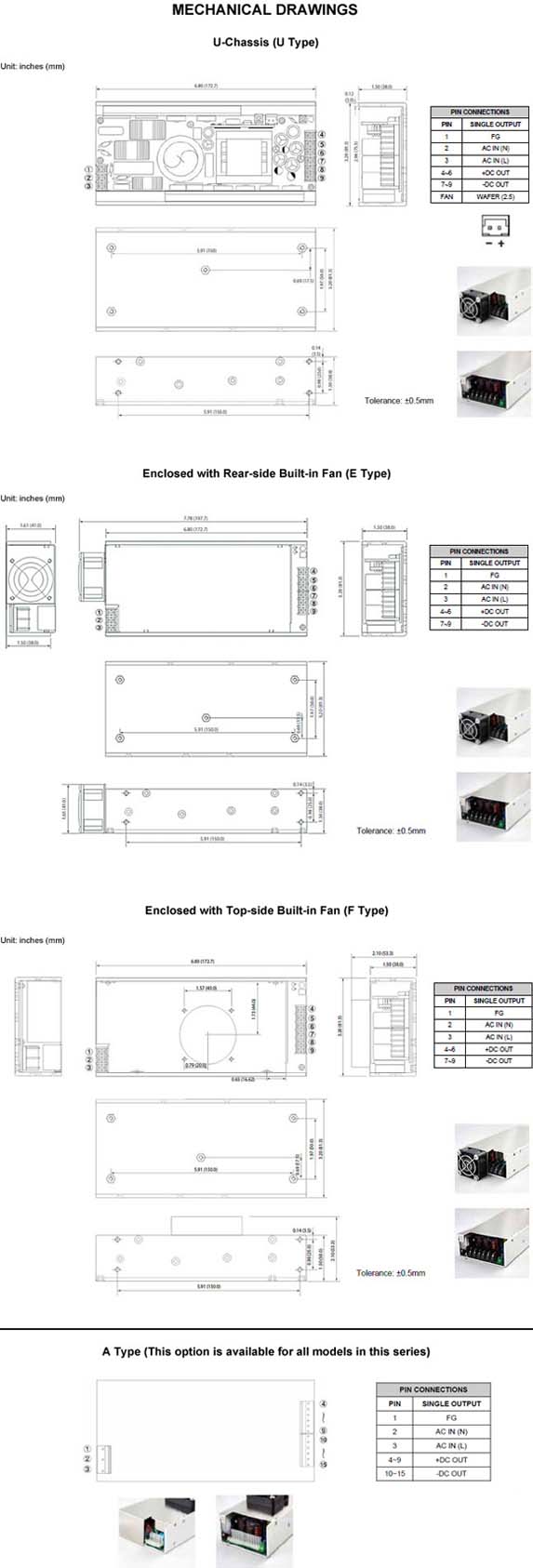

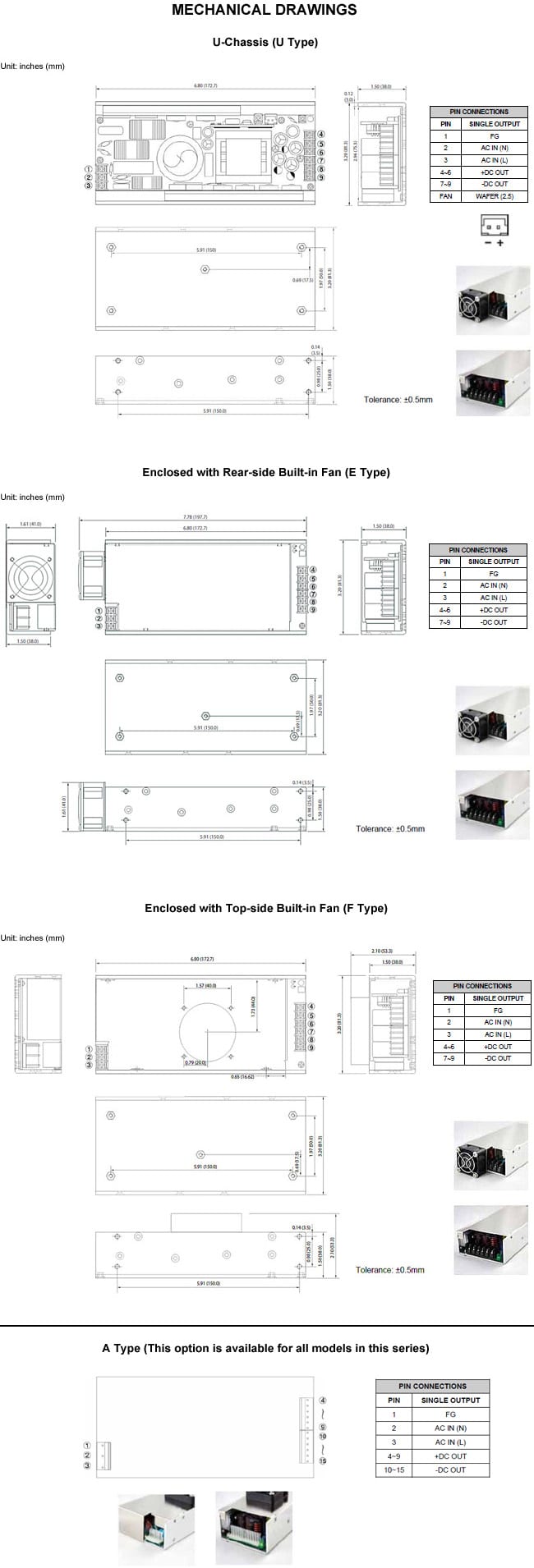

● 3 Mechanical Options Available: U, E, and F Types
● Optional I/O Connectors Available (Standard or A Type)

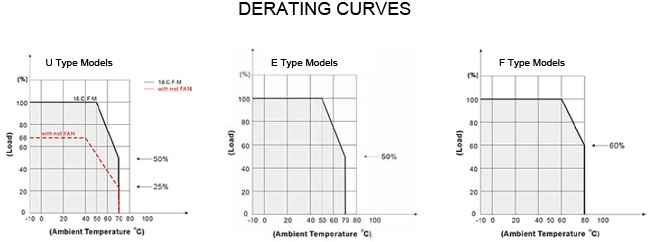

● 360W with 18CFM Fan, 240W with Free Air Convection
● Universal Input Voltage Range: 90~264VAC (120~370VDC)
● Short Circuit, Over Load, Over Voltage, and Over Temp. Protection
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAQF360U-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 6.8" x 3.2" x 1.5" | Get a Quote |
| PSAQF360U-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 6.8" x 3.2" x 1.5" | Get a Quote |
| PSAQF360U-36S | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 6.8" x 3.2" x 1.5" | Get a Quote |
| PSAQF360U-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: U-Chassis | Size: 6.8" x 3.2" x 1.5" | Get a Quote |
| PSAQF360E-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.8" x 3.2" x 1.6" | Get a Quote |
| PSAQF360E-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.8" x 3.2" x 1.6" | Get a Quote |
| PSAQF360E-36S | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.8" x 3.2" x 1.6" | Get a Quote |
| PSAQF360E-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Fan | Size: 7.8" x 3.2" x 1.6" | Get a Quote |
| PSAQF360F-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 30A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6.8" x 3.2" x 2.1" | Get a Quote |
| PSAQF360F-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 15A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6.8" x 3.2" x 2.1" | Get a Quote |
| PSAQF360F-36S | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 10A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6.8" x 3.2" x 2.1" | Get a Quote |
| PSAQF360F-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 7.5A | Output Power (W): 360 | No. Outputs: S | Case: Enclosed with Top Fan | Size: 6.8" x 3.2" x 2.1" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | PF > 0.99 @ 115VAC and full loadPF > 0.93 @ 230VAC and full load |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 24, 36, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 30A, 15A, 10A, 7.5A |
| Output Power (Watts): | 360 |
| Output Trim/Adjustability: | See Data Sheet |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Automatic Recovery |
| Thermal Protection: | Automatic Recovery |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -10 to 70°C |
| Storage Temperature: | -25 to 85°C |
| Physical | |
| Weight: | U Type: 1.47 lbs (668g) E Type: 1.64 lbs (746g) F Type: 1.61 lbs (729g) |
| Dimensions: | U Type: 6.8" x 3.2" x 1.5" (172.7 x 81.3 x 38.0 mm) E Type: 7.8" x 3.2" x 1.6" (197.7 x 81.3 x 41.0 mm) F Type: 6.8" x 3.2" x 2.1" (172.7 x 81.3 x 53.3 mm) |
| Notes & safety | |
| Notes: | 1. Optional I/O Connectors: For standard type do not add a suffix to the model number and for A type add the suffix “-A” to the model number. Ex: PSAQF360E-12S-A (See pages7~9). 2. 3 mechanical options available: U-Chassis (Type U), enclosed with rear-side built-in fan (Type E), and enclosed with top-side built-in fan (Type F). 3. Ripple & Noise is measured at 20MHz bandwidth with a 0.1μF and 47μF capacitors in parallel. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | CE, UL60950 |
| RoHS Compliance: | Yes |
