PSAQF30
The PSAQF series of AC/DC power supplies offers 30 Watts of output power in an encapsulated design. This series has single, dual, and triple outputs with a universal input range of 85 ~265VAC. Other features include continuous short circuit protection, over voltage protection, and output current limiting. These units are also EMC EN61000-4(-2,-3,-4) and EMI EN55022 level B approved. The compliance to these EMI specifications minimizes system design time, cost, and eliminates the need for external filter components. The PSAQF-30 series has IEC / EN / UL 60950-1 safety approvals which qualifies this product for worldwide markets. This series has a wide variety of applications including both commercial and industrial with a MTBF of 250,000 hours.
● I/O Isolation 3000VAC
● MTBF > 250,000 Hours
● High Efficiency up to 80%
● EMC Complies with EN61000
● IEC61140 Safety Class II Approved
● Single, Dual, and Triple Output Models
● 85~265VAC, 47~440Hz Universal Input Range
● IEC / EN / UL 60950-1 Safety Standards Approved

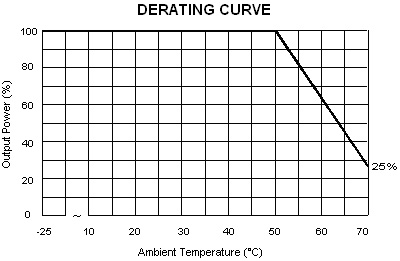

● Operating Temperature 71°C (Refer to Derating Curve)
● PCB, DIN Rail, and Chassis Mounting Packages Available
● EMI Complies with EN55022, Class B and FCC part 15, level B
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAQF-30T3512P | Input Voltage: 85~265 | Output Voltage: 3.3, 5, 12 | Output Current: 4A, 1.5A, 0.25A | Output Power (W): 23.7 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30T5312P | Input Voltage: 85~265 | Output Voltage: 5, 3.3, 12 | Output Current: 4.5A, 1A, 0.25A | Output Power (W): 28.8 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30T512 | Input Voltage: 85~265 | Output Voltage: 5, 12, -12 | Output Current: 3A, 0.6A, -0.6A | Output Power (W): 29.4 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30D15 | Input Voltage: 85~265 | Output Voltage: 15, -15 | Output Current: 1A, 1A | Output Power (W): 30 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30D512 | Input Voltage: 85~265 | Output Voltage: 5, 12 | Output Current: 3A, 1.25A | Output Power (W): 30 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30S05 | Input Voltage: 85~265 | Output Voltage: 5 | Output Current: 6A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30S12 | Input Voltage: 85~265 | Output Voltage: 12 | Output Current: 2.5A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30S15 | Input Voltage: 85~265 | Output Voltage: 15 | Output Current: 2A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30S24 | Input Voltage: 85~265 | Output Voltage: 24 | Output Current: 1.25A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30S48 | Input Voltage: 85~265 | Output Voltage: 48 | Output Current: 0.625A | Output Power (W): 30 | No. Outputs: S | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30T512A | Input Voltage: 85~265 | Output Voltage: 5, 12, -12 | Output Current: 3A, 1A, -0.25A | Output Power (W): 30 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30T515 | Input Voltage: 85~265 | Output Voltage: 5, 15, -15 | Output Current: 3A, 5A, -0.50A | Output Power (W): 30 | No. Outputs: T | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| PSAQF-30D12 | Input Voltage: 85~265 | Output Voltage: 12, -12 | Output Current: 1.3A, 1.3A | Output Power (W): 31.2 | No. Outputs: D | Case: PCB Mount | Size: 3.5" x 2.5" x 0.85" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~265 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24, 48, -12, -15 |
| Voltage Accuracy: | See Data Sheet |
| Output Current: | 5.75A, 6A, 4.25A, 4A, 4.2A, 2.5A, 2.6A, 2A, 1.25A, 625mA |
| Output Power (Watts): | 23.7, 28.8, 29.4, 30, 31.2 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | 1.2 |
| General | |
| Efficiency: | Up to 80% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -25 to 71°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | PCB Mount: 6.24oz (177g) Chassis Mount: 6.74oz (191g) DIN Rail: 8.64oz (245g) |

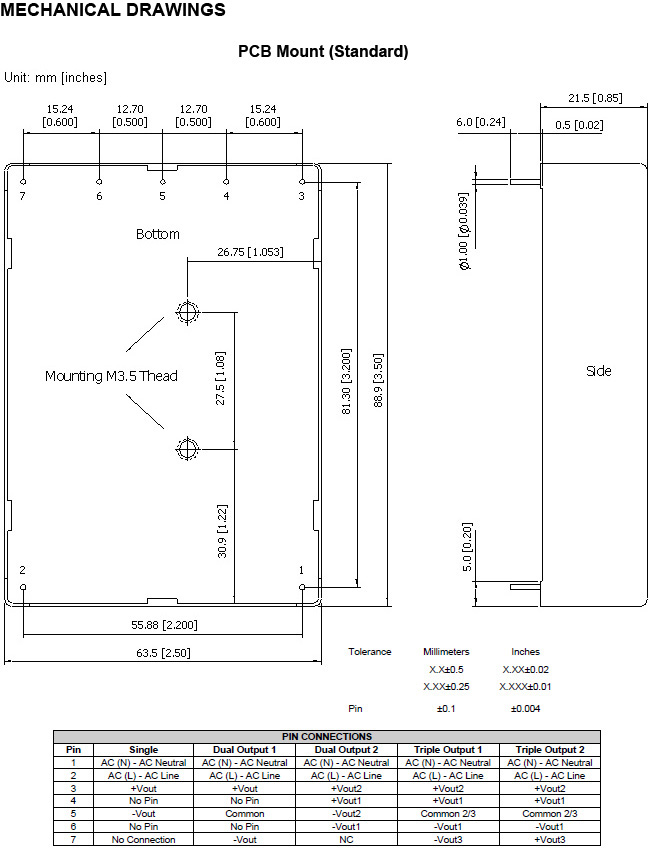

| Dimensions: | PCB Mount:3.50" x 2.50" x 0.85" (88.9 x 63.5 x 21.5 mm) Chassis Mount: 4.41" x 2.51" x 1.01" (112 x 63.8 x 25.6 mm) DIN Rail: 3.41" x 2.51" x 1.44" (112 x 63.8 x 36.6 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |

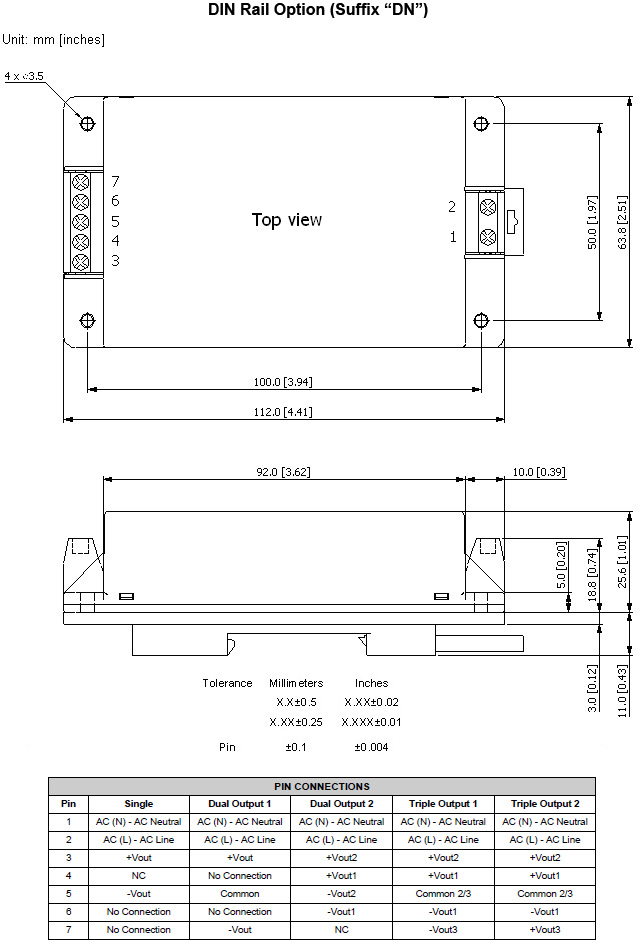

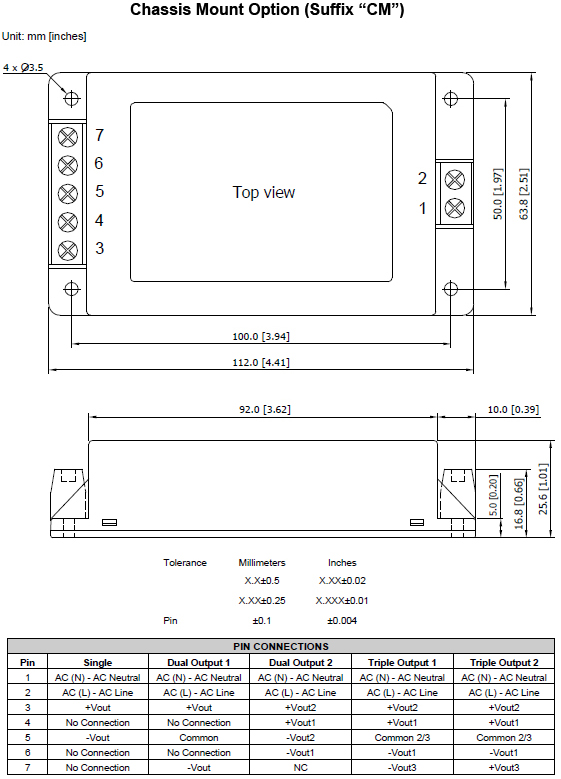

| Notes: | 1. For Ripple & Noise measurement the bandwidth is 0~20MHz. 2. Input Current is measured at 115VAC, 60Hz. 3. These power modules require a minimum output loading to maintain specified regulation. 4. Operation under no-load conditions will not damage these devices; however they may not meet all listed specifications. 5. Other input and output voltages may be available, please contact factory. 6. Peak current can't be drawn from all outputs at the same time. 7. Floating (or isolated) output of a power supply that is not connected to any other output. 8. To order the power module with chassis mounting style, please add a suffix “CM” (Ex: PSAQF-30S05CM). 9. To order the power module with DIN Rail style, please add a suffix “DN” (Ex: PSAQF-30S05DN). 10. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/ EN / UL 60950-1 |
| RoHS Compliance: | Yes |
mechdwg.jpg)
mechdwg.jpg)
