The PSAQF100O series of AC/DC switching power supplies offers up to 100W of output power in a 4.1 x 2.05 x 0.98 inch open frame constructed design. All models have a single output and a universal input. Some features include 3000VAC I/O isolation, low ripple and noise, -25°C to +70°C operating temperature, high efficiency up to 92%, and PFC function > 0.95 at full load. These supplies also have UL/cUL and CE safety approvals and are RoHS compliant. All models are protected against short circuit, over power, and over voltage conditions. Optional Molex input/output connector type available (suffix “A”).

● Open Frame ● Up to 100W ● Single Output ● RoHS Compliant ● Low Ripple & Noise ● Free Air Convection ● 3000VAC I/O Isolation ● High Efficiency up to 92% ● -25°C to +70°C Operating Temperature ● Ultra Compact Size: 4.1 x 2.05 x 0.98 Inches ● Output Voltages Available from 12VDC to 48VDC ● PFC Function: > 0.95 at full Load, >0.9 at 50% Load ● Short Circuit, Over Load, and Over Voltage Protection ● Optional I/O Connectors Available (Standard or A Type) ● Universal Input Voltage Range: 90~264VAC (120~370VDC)
Power (W)
Case Size
PSAQF100O-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 7.5A Output Power (W): 90 No. Outputs: S Case: Open Frame Size: 4.1" x 2.05" x 0.98" Get a Quote
PSAQF100O-15S Input Voltage: 90~264 Output Voltage: 15 Output Current: 6.66A Output Power (W): 100 No. Outputs: S Case: Open Frame Size: 4.1" x 2.05" x 0.98" Get a Quote
PSAQF100O-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 4.16A Output Power (W): 100 No. Outputs: S Case: Open Frame Size: 4.1" x 2.05" x 0.98" Get a Quote
PSAQF100O-48S Input Voltage: 90~264 Output Voltage: 48 Output Current: 2.09A Output Power (W): 100 No. Outputs: S Case: Open Frame Size: 4.1" x 2.05" x 0.98" Get a Quote
Specification Value
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
PFC: 0.99, 0.95
Input Frequency: 47-63Hz
Output Voltage: 12, 15, 24, 48
Voltage Accuracy: ±2%
Output Current: 7.5A, 6.66A, 4.16A, 2.09A
Output Power (Watts): 90, 100
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Zener Diode Clamp
Efficiency: Up to 92%
Isolation: 3000VAC

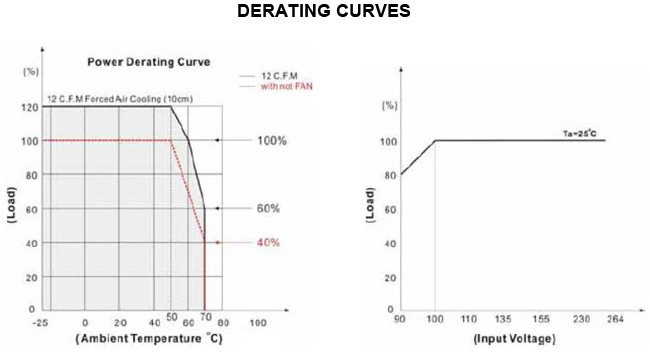

Operating Temperature: -25 to 70°C
Storage Temperature: -25 to 85°C
Weight: 7.41oz (210g)

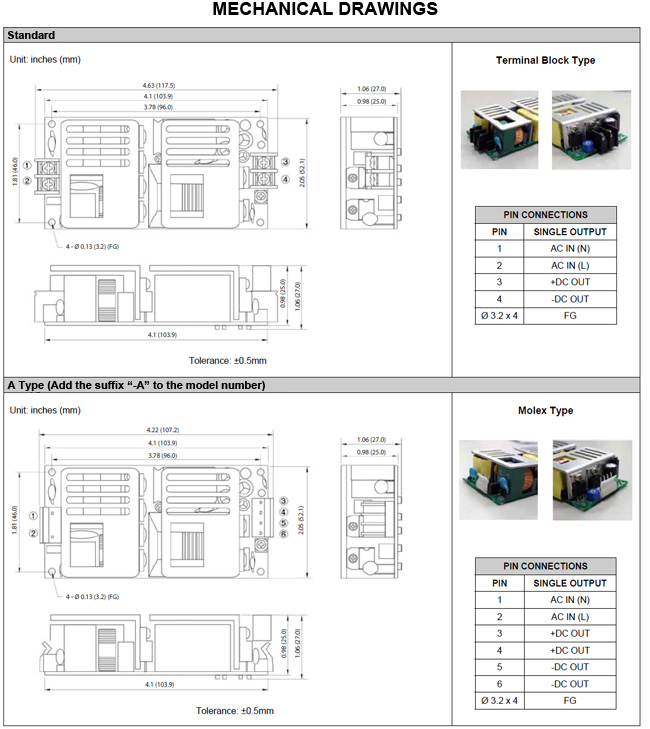

Dimensions: 4.1 x 2.05 x 0.98 inches (103.9 x 52.1 x 25.0 mm)
Notes & safety
Notes: 1. I/O Connectors: For standard type (terminal block) do not add a suffix to the model number and for A type (molex) add the suffix “-A” to the model number. Ex: PSAQF100O-12S-A
2. Ripple & Noise is measured at 20MHz bandwidth with a 0.1μF and 47μF capacitors in parallel.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: CE, UL60950-1
RoHS Compliance: Yes
