PSANCN

The PSANCN series of AC/DC power supplies provides 15 watts of output power in a 2.91” x 2.13” x 0.87” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -40°C to +70°C operating temperature range, and 4000VAC I/O isolation. This series is also protected against over power, over voltage, and short circuit conditions. The PSANCN series has two types of screw terminal mechanical options available. All models are RoHS compliant and have UL/cUL, CE, and CB safety approvals.

• RoHS Compliant • Isolation Class II • 4000VAC I/O Isolation • 15 Watts Output Power • High Efficiency up to 83% • Fully Encapsulated Plastic Case • < 0.3W No Load Input Power • 5V, 12V, 15V, and 24V Single Output Models • PCB Mountable Switching Power Supply • -40°C to +70°C Operating Temperature Range • Universal Input Voltage Range: 90-264VAC (120-370VDC) • Short Circuit, Over Power, and Over Voltage Protection • Screw Terminal Mechanical Options Available • UL/cUL, CE, and CB Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSANCN-5S Input Voltage: 90~264 Output Voltage: 5 Output Current: 3000mA Output Power (W): 15 No. Outputs: S Case: PCB Mount Size: 2.91" x 2.13" x 0.87" Get a Quote
PSANCN-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 1250mA Output Power (W): 15 No. Outputs: S Case: PCB Mount Size: 2.91" x 2.13" x 0.87" Get a Quote
PSANCN-15S Input Voltage: 90~264 Output Voltage: 15 Output Current: 1000mA Output Power (W): 15 No. Outputs: S Case: PCB Mount Size: 2.91" x 2.13" x 0.87" Get a Quote
PSANCN-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 625mA Output Power (W): 15 No. Outputs: S Case: PCB Mount Size: 2.91" x 2.13" x 0.87" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 50/60Hz
Output
Output Voltage: 5, 12, 15, 24
Voltage Accuracy: ±2%
Output Current: 3000mA, 1250mA, 1000mA, 625mA
Output Power (Watts): 15
Short Circuit Protection: Hiccup Mode, Indefinite (Automatic Recovery)
Over Voltage Protection: Zener Diode Clamp
General
Efficiency: Up to 83%
Isolation: 4000VAC
Environmental

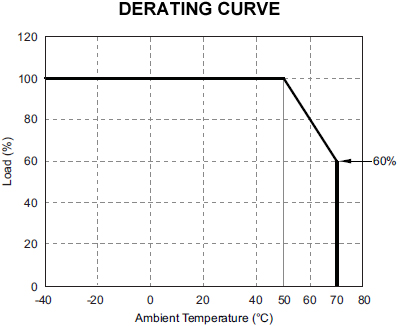

Operating Temperature: -40 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 4.02oz (114g)
Dimensions: 2.91" x 2.13" x 0.87" (74 x 54 x 22 mm)
Case Material: Plastic Resin with Fiberglass
Notes & safety

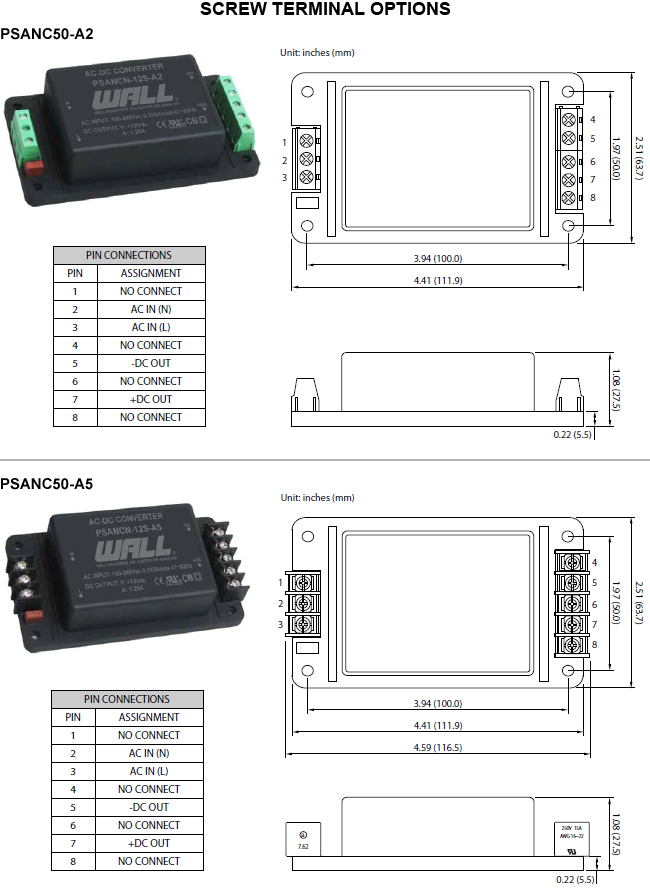

Notes: 1. Screw terminal mechanical options available (see page 5). Please call factory for ordering details.
2. This product is Listed to applicable standards and requirements by UL.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, CE, CB
RoHS Compliance: Yes
