PSANC
The PSANC series of AC DC power supplies provides 15 watts of output power in a 2.91” x 2.13” x 0.87” encapsulated PCB mountable package. This series consists of single, dual, and triple output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -25°C to +70°C operating temperature range, and over power, over voltage, and short circuit protection. The PSANC series also has two types of screw terminal mechanical options available and an extended operating temperature option available. All models are RoHS compliant and have UL/cUL and CE safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

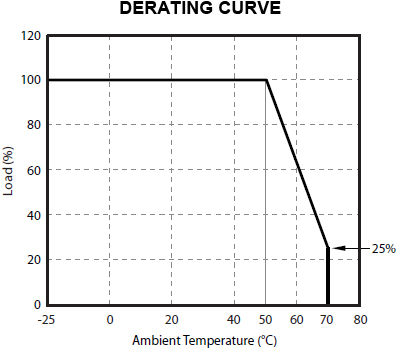

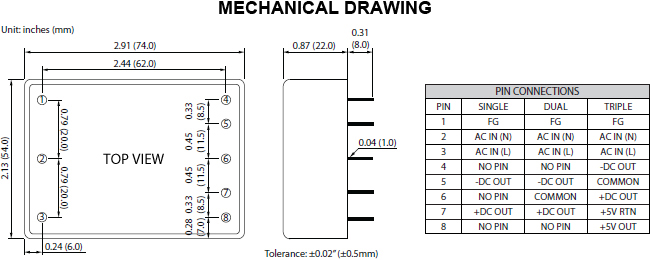

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSANC-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 1.25 A | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-15D | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: ±0.5A | Output Power (W): 15 | No. Outputs: D | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 1A | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 625 mA | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-5D | Input Voltage: 90~264 | Output Voltage: 5, -5 | Output Current: ±1.5A | Output Power (W): 15 | No. Outputs: D | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-5S12D | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 2.4 A | Output Power (W): 15 | No. Outputs: T | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-5S15D | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 2.3 A | Output Power (W): 15 | No. Outputs: T | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| PSANC-12D | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 1.3 A | Output Power (W): 15.6 | No. Outputs: D | Case: PCB Mount | Size: 2.91" x 2.13" x 0.87" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, -5, 12, -12, 15, -15, 24 |
| Voltage Accuracy: | Single Output Models: ±2% Dual Output Models: ±5% Triple Output Models: ±3% |
| Output Current: | 3A, ±1.5A, 2A, ±0.2A, ±0.15A, 1.25A, ±0.65A, 1A, ±0.5A, 0.625A |
| Output Power (Watts): | 15, 15.6 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 80% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -25 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 4.02 oz. |
| Dimensions: | 2.91" x 2.13" x 0.87" (74 x 54 x 22 mm) |
| Case Material: | plastic resin with fiberglass |
| Notes & safety | |

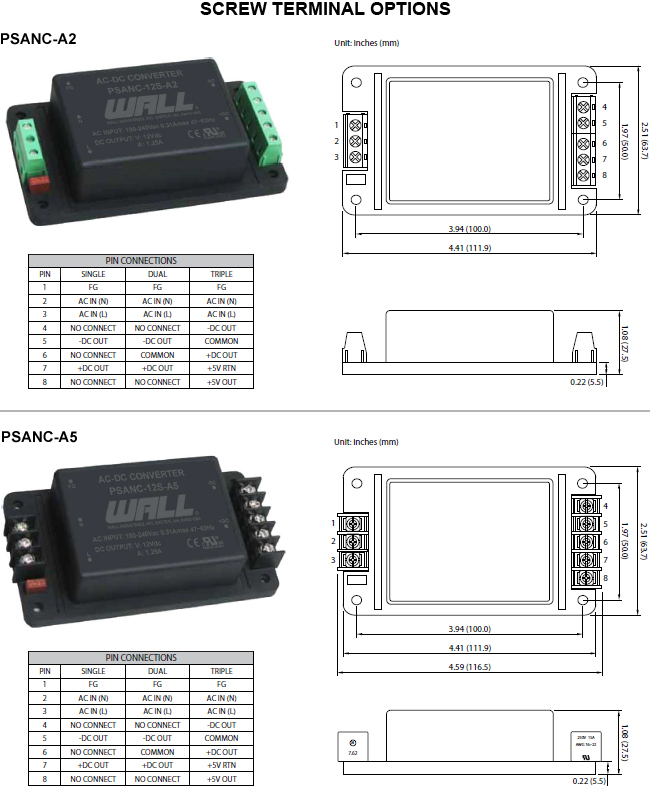

| Notes: | 1. Some models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. For -40°C to +71°C extended operating temperature range please add the suffix –E1 to the model number (Ex: PSANC-12S-E1). 3. Screw terminal mechanical options available (see page 4). Please call factory for ordering details. 4. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL, CE |
| RoHS Compliance: | Yes |
