PSAMPS45

The PSAMPS45 series of AC/DC converters offers up to 45 watts of output power in a high power density open frame or enclosed package. This series consists of single output models with a universal input range of 80~264VAC (100~370VDC). Each model in this series features high efficiency, low leakage current, and they are also protected against short circuit, over current, and over voltage conditions. The PSAMPS45 series is also RoHS compliant, meets 2 x MOPP safety certifications, and has EN62368-1, EN60601, and UL60601 safety approvals.

• Universal Input Range of 80~264VAC (100~370VDC) • High Power Density • High Efficiency • Compact Size • Low Leakage Current <75uA • Meets 5000m Altitude Requirements • RoHS Compliant • High I/O Isolation Test Voltage up to 4000VAC • Output Short Circuit, Over Current, and Over Voltage Protection • Over Voltage Class (Designed to meet EN61558-1) • Meets 2 x MOPP Safety Certification • Suitable for BF Applications • EN62368-1, EN60601, UL60601 Safety Approvals
Part Number Setup:
Add "C" Suffix for Enclosed Case
Example:
PSAMPS45-12SC = 12V Enclosed Model
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
PSAMPS45-03S Input Voltage: 80-264 Output Voltage: 3.3 Output Current: 8A Output Power (W): 26.4 No. Outputs: S Case: Open Frame, Enclosed Case Size: 3-3.6" x 2-2.38" x 1.04-1.31" Get a Quote
PSAMPS45-05S Input Voltage: 80-264 Output Voltage: 5 Output Current: 8A Output Power (W): 40 No. Outputs: S Case: Open Frame, Enclosed Case Size: 3-3.6" x 2-2.38" x 1.04-1.31" Get a Quote
PSAMPS45-12S Input Voltage: 80-264 Output Voltage: 12 Output Current: 3.75A Output Power (W): 45 No. Outputs: S Case: Open Frame, Enclosed Case Size: 3-3.6" x 2-2.38" x 1.04-1.31" Get a Quote
PSAMPS45-15S Input Voltage: 80-264 Output Voltage: 15 Output Current: 3A Output Power (W): 45 No. Outputs: S Case: Open Frame, Enclosed Case Size: 3-3.6" x 2-2.38" x 1.04-1.31" Get a Quote
PSAMPS45-24S Input Voltage: 80-264 Output Voltage: 24 Output Current: 1.875A Output Power (W): 45 No. Outputs: S Case: Open Frame, Enclosed Case Size: 3-3.6" x 2-2.38" x 1.04-1.31" Get a Quote
PSAMPS45-36S Input Voltage: 80-264 Output Voltage: 36 Output Current: 1.25A Output Power (W): 45 No. Outputs: S Case: Open Frame, Enclosed Case Size: 3-3.6" x 2-2.38" x 1.04-1.31" Get a Quote
PSAMPS45-48S Input Voltage: 80-264 Output Voltage: 48 Output Current: 0.94A Output Power (W): 45 No. Outputs: S Case: Open Frame, Enclosed Case Size: 3-3.6" x 2-2.38" x 1.04-1.31" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 80~264
Input Frequency: 47-63Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24, 36, 48
Voltage Accuracy: 3.3/5V Output: ±2% Other Outputs: ±1%
Output Power (Watts): 8A, 3.75A, 3A, 1.875A, 1.25A, 0.94A
Short Circuit Protection: Hiccup, Continuous, Self-Recovery
Over Voltage Protection: See Data Sheet
General
Efficiency: Up to 90%
Isolation: Up to 4000VAC
Environmental
Operating Temperature: -40 to 85°C
Storage Temperature: -40 to 85°C
Physical
Weight: Standard Case: 3.35oz (95g)
Enclosed Case (“C” Suffix): 5.29oz (150g)

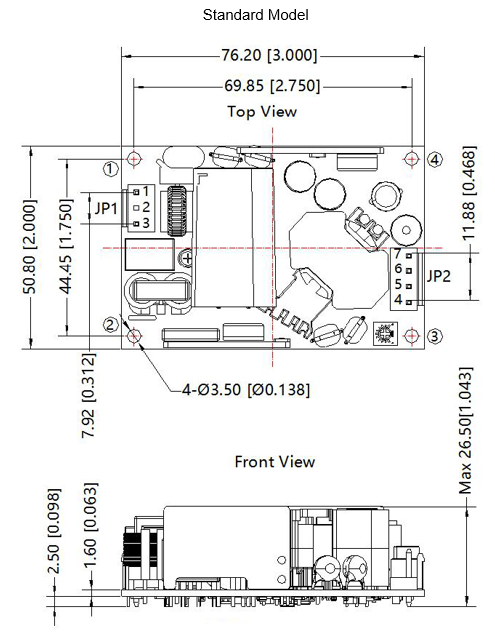

Dimensions: Standard Case:: 3in x 2in x 1.04in (76.20mm x 50.80mm x 26.50mm)

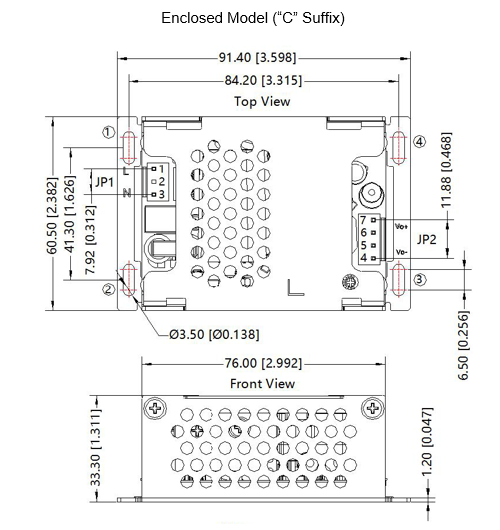

Enclosed Case (“C” Suffix): 3.6in x 2.38in x 1.31in (91.4mm x 60.5mm x 33.3mm)
Notes & safety
Notes: 1. Add “C” suffix to model number to indicate enclosed version. Ex: PSAMPS45-05SC
2. The ‘tip and barrel method’ is used for ripple and noise test. 3.3V, 5V, 12V, 15V with a 10uFceramic capacitor. 24V with a 1uF ceramic capacitor. 36V, 48V with a 0.1uF ceramic capacitor. Contact factory for more information.
3. This product is Listed to applicable standards and requirements by UL.
4. Customization service is available. Contact factory for more information.
5. This product is classified according to ISO14001 and related environmental laws and regulations and should be handled by qualified units.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: EN62368-1, EN60601, UL60601. Designed to meet additional requirements, see data sheet for more information.
RoHS Compliance: Yes
