PSAHC08

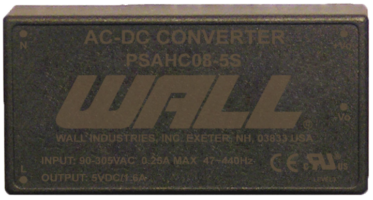

The PSAHC08 series of AC/DC switching power supplies provides 8 watts of output power in a 2.055” x 1.055” x 0.75” encapsulated PCB mountable package. This series consists of single and dual output models with a universal input range of 90-305VAC (120-430VDC). Some features include low ripple and noise, -40°C to +70°C operating temperature range, and <0.3W no load power consumption. These supplies are also protected against over power, over voltage, and short circuit conditions. The PSAHC08 series also has two types of screw terminal mechanical options available. All models are RoHS compliant and have CE and UL/cUL 60950-1: 2nd edition safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAHC08-3.3S | Input Voltage: 90~305 | Output Voltage: 3.3 | Output Current: 2000mA | Output Power (W): 6.6 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-3.8S | Input Voltage: 90~305 | Output Voltage: 3.8 | Output Current: 2100mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-5S | Input Voltage: 90~305 | Output Voltage: 5 | Output Current: 1600mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-8S | Input Voltage: 90~305 | Output Voltage: 8 | Output Current: 1000mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-9S | Input Voltage: 90~305 | Output Voltage: 9 | Output Current: 888mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-12S | Input Voltage: 90~305 | Output Voltage: 12 | Output Current: 666mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-14S | Input Voltage: 90~305 | Output Voltage: 14 | Output Current: 571mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-15S | Input Voltage: 90~305 | Output Voltage: 15 | Output Current: 533mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-24S | Input Voltage: 90~305 | Output Voltage: 24 | Output Current: 335mA | Output Power (W): 8 | No. Outputs: S | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-12S7.5S | Input Voltage: 90~305 | Output Voltage: 12, 7.5 | Output Current: 560mA, 250mA | Output Power (W): 8.6 | No. Outputs: D | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-8S5S | Input Voltage: 90~305 | Output Voltage: 8, 5 | Output Current: 1000mA, 150mA | Output Power (W): 8.75 | No. Outputs: D | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-5S3.3S | Input Voltage: 90~305 | Output Voltage: 5, 3.3 | Output Current: 1600mA, 310mA | Output Power (W): 9 | No. Outputs: D | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| PSAHC08-12S5S | Input Voltage: 90~305 | Output Voltage: 12, 5 | Output Current: 666mA, 200mA | Output Power (W): 9 | No. Outputs: D | Case: PCB Mount | Size: 2.055" x 1.055" x 0.75" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~305 |
| Input Frequency: | 47 - 440Hz |
| Output | |
| Output Voltage: | 3.3, 3.8, 5, 7.5, 8, 9, 12, 14, 15, 24 |
| Voltage Accuracy: | ±2.0% |
| Output Current: | 2000mA, 2100mA, 1600mA, 1000mA, 888mA, 666mA, 571mA, 560mA, 533mA, 335mA, 310mA, 250mA, 200mA, 150mA |
| Output Power (Watts): | 6.6, 8, 8.6, 8.75, 9 |
| Short Circuit Protection: | Hiccup Mode, Indefinite (Automatic Recovery) |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 81% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.23oz. |
| Dimensions: | 2.055" x 1.055" x 0.75" (52.2 x 26.8 x 19.0 mm) |
| Case Material: | Plastic Resin with Fiberglass |
| Notes & safety | |

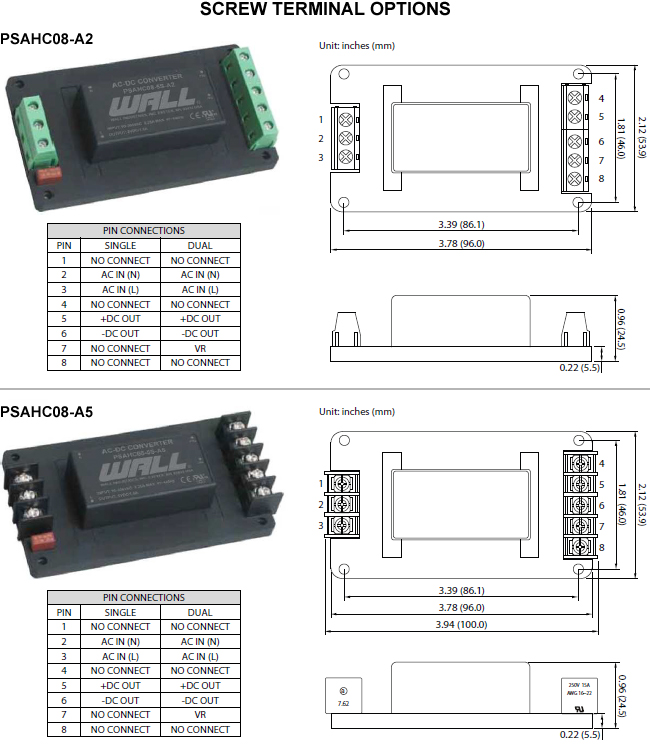

| Notes: | 1. Some models require a minimum loading on the output to maintain specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. Screw terminal mechanical options available (see page 4). Please call factory for ordering details. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 2nd edition; CE |
| RoHS Compliance: | Yes |
