PSAGF-10
The PSAGF-10 series of AC/DC power supplies offers 10 Watts of output power in an encapsulated design. This series has single output models with a universal input range of 90 ~264VAC. Other features include continuous short circuit protection, over voltage protection, and output current limitation. EMC meets EN61000-4 (-2,-3,-4) and EMI meets EN55022 level B conducted noise. The compliance to these EMI specifications minimizes system design time, cost, and eliminates the need for external filter components. The PSAGF-10 series has IEC / EN / UL 60950-1 safety approvals which qualifies this product for worldwide markets. This series has a wide variety of applications including both commercial and industrial with a MTBF of 330,000 hours.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAGF-10S03 | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 2.5 A | Output Power (W): 8.25 | No. Outputs: S | Case: PCB Mount | Size: 2.06" x 1.07" x 0.93" | Get a Quote |
| PSAGF-10S05 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2A | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.06" x 1.07" x 0.93" | Get a Quote |
| PSAGF-10S12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 833 mA | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.06" x 1.07" x 0.93" | Get a Quote |
| PSAGF-10S15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 667 mA | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.06" x 1.07" x 0.93" | Get a Quote |
| PSAGF-10S24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 417 mA | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.06" x 1.07" x 0.93" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±1.0% |
| Output Current: | 2.5A, 2A, 833mA, 417mA, 667mA |
| Output Power (Watts): | 8.25, 10 |
| Short Circuit Protection: | hiccup mode, indefinite (auto-recovery) |
| Over Voltage Protection: | 1.2 |
| General | |
| Efficiency: | Up to 76% |
| Isolation: | 3000VAC |
| Environmental | |

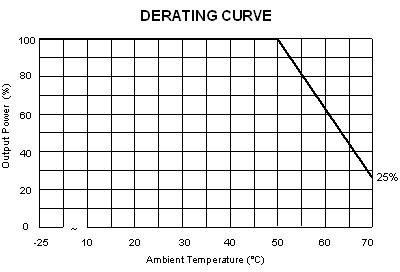

| Operating Temperature: | -25 to 71°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 1.9 oz. |

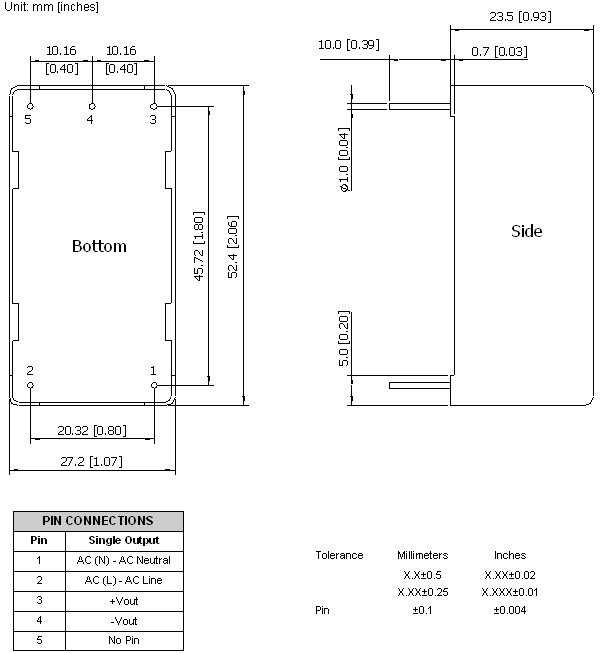

| Dimensions: | 2.06" x 1.07" x 0.93" (52.4 x 27.2 x 23.5 mm) |
| Case Material: | plastic resin and fiberglass |
| Notes & safety | |
| Notes: | 1. These power modules require a minimum output loading to maintain specified regulation. Operation under no-load conditions will not damage these devices; however they may not meet all listed specifications. 2. Input Current is measured at 115VAC, 60Hz. 3. Other input and output voltages may be available, please contact factory. 4. All AC/DC modules should be externally fused at the front end for protection. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC / EN / UL 60950-1 |
| RoHS Compliance: | Yes |
