PSAFR130

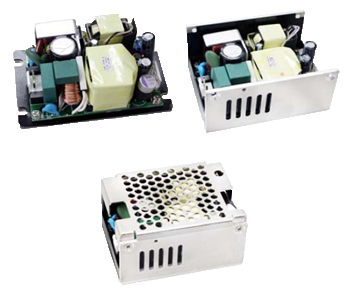

The PSAFR130 series of AC/DC ITE switching power supplies offers up to 130 watts of output power in a compact open frame, u-chassis, or enclosed package. This series consists of single output models with an input voltage range of 90-264VAC. Each model in this series has over power, over voltage, over temperature and short circuit protection as well as UL/IEC/EN 62368-1 safety approvals.
• Universal Input Voltage of 90-264VAC
• 125 Watt with Natural Convection
• High Efficiency
• Active PFC Function
• Operating Altitude 5000M
• I/O Isolation 4000VAC
• Over Power, Over Voltage, Over Temperature, and Short Circuit Protection
• EMI for Both Class I (with PE) and Class II (without PE) Configuration
• UL/IEC/EN 62368-1 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAFR130-12SC | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 8.75~10.833A | Output Power (W): 105~130 | No. Outputs: S | Case: Enclosed Case | Size: 3.15" x 2.35" x 1.7" | Get a Quote |
| PSAFR130-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 9.166~10.833A | Output Power (W): 110~130 | No. Outputs: S | Case: Open Frame | Size: 3.59" x 2.15" x 1.36" | Get a Quote |
| PSAFR130-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.958~5.417A | Output Power (W): 110~130 | No. Outputs: S | Case: Open Frame | Size: 3.59" x 2.15" x 1.36" | Get a Quote |
| PSAFR130-12SU | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 9.167~10.833A | Output Power (W): 110~130 | No. Outputs: S | Case: U-Chassis | Size: 3.15" x 2.35" x 1.5" | Get a Quote |
| PSAFR130-24SC | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.583~5.417A | Output Power (W): 110~130 | No. Outputs: S | Case: Enclosed Case | Size: 3.15" x 2.35" x 1.7" | Get a Quote |
| PSAFR130-48S | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.395~2.708A | Output Power (W): 115~130 | No. Outputs: S | Case: Open Frame | Size: 3.59" x 2.15" x 1.36" | Get a Quote |
| PSAFR130-24SU | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 4.792~5.417A | Output Power (W): 115~130 | No. Outputs: S | Case: U-Chassis | Size: 3.15" x 2.35" x 1.5" | Get a Quote |
| PSAFR130-48SC | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.396~2.708A | Output Power (W): 115~130 | No. Outputs: S | Case: Enclosed Case | Size: 3.15" x 2.35" x 1.7" | Get a Quote |
| PSAFR130-48SU | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 2.5~2.708A | Output Power (W): 120~130 | No. Outputs: S | Case: U-Chassis | Size: 3.15" x 2.35" x 1.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 10.833A, 5.417A, 2.702A |
| Output Power (Watts): | 130 |
| Short Circuit Protection: | Yes |
| Over Voltage Protection: | Yes |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 91% |
| Isolation: | Input-Output: 4000VAC or 5656VDC Input-PE: 2000VAC or 2828VDC Output-PE: 1500VAC or 2121VDC |
| Environmental | |
| Operating Temperature: | Open Frame: -30 to 70°C U-Chassis, Enclosed: -30 to 80°C |
| Storage Temperature: | -30 to 80°C |
| Physical | |
| Weight: | Open Frame: 7.05oz (200g) U-Chassis: 9.88oz (280g) Enclosed: 10.3oz (292g) |
| Dimensions: | Open Frame: 3.59 x 2.15 x 1.36in (91.19 x 54.61 x 34.6mm) U-Chassis: 3.15 x 2.35 x 1.5in (80 x 59.7 x 38mm) Enclosed: 3.15 x 2.35 x 1.7in (80 x 59.7 x 43.2mm) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. 2. This product is Listed to applicable standards and requirements by UL. 3. Secure the power supply unit to metal case using the four screw holes in the corners for either Class I or Class II equipment. 4. Ambient temperature derating of 3.5/1000m with fanless models and of 5/1000m with fan models for operating altitude higher. CAUTION: Double pole, neutral fusing. Disconnect mains before servicing. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN/UL62368-1 |
