PSAFCN

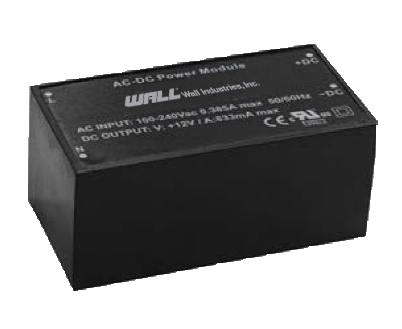

The PSAFCN series of AC/DC PCB mount power supplies offers up to 10 watts of output power in a compact 2.07” x 1.08” x 0.93” package. This series consists of single output models with an input voltage range of 90-264VAC. Each model in this series has over power, over voltage, and short circuit protection as well as CE and UL safety approvals. Please call factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAFCN-3.3S | Input Voltage: 90~264 | Output Voltage: 3.3 | Output Current: 2500mA | Output Power (W): 8.25 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSAFCN-5S | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 2000mA | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSAFCN-12S | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 833mA | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSAFCN-15S | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 667mA | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| PSAFCN-24S | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 417mA | Output Power (W): 10 | No. Outputs: S | Case: PCB Mount | Size: 2.07" x 1.08" x 0.93" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47 to 440Hz |
| Output | |
| Output Voltage: | 3.3, 5, 12, 15, 24 |
| Voltage Accuracy: | ±2% |
| Output Current: | 417mA, 667mA, 833mA, 2000mA, 2500mA |
| Output Power (Watts): | 8.25, 10 |
| Short Circuit Protection: | Hiccup Mode, Automatic Recovery |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 82% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -40 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | 2.05oz (58g) |

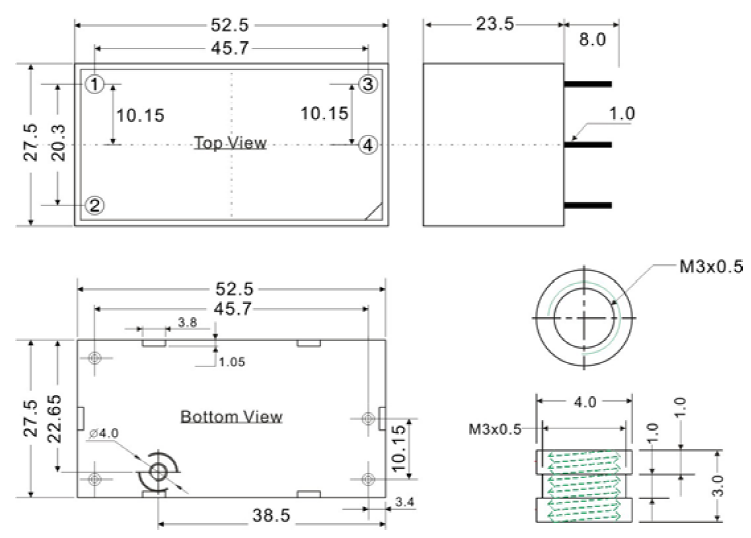

| Dimensions: | 2.07in x 1.08in x 0.93in (52.5mm x 27.5mm x 23.5mm) |
| Case Material: | Plastic Resin (Flammability to UL 94V-0) |
| Notes & safety | |
| Notes: | 1. Ripple & Noise are measured at 20MHz of bandwidth with 0.1uF & 47uF parallel capacitor. 2. It’s recommended to add Varistor 14S471K at L/N input side in parallel. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL, CE |
