PSAFC

The PSAFC series of AC DC switching power supplies provides 10 Watts of output power in a 2.06” x 1.07” x 0.93” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-264VAC (120-370VDC). Some features include low ripple and noise, -25°C to +70°C operating temperature range, and over power, over voltage, and short circuit protection. The PSAFC series also has two types of screw terminal mechanical options and an extended operating temperature option available. All models are RoHS compliant and have UL/cUL, CB, and CE safety approvals.

• Isolation Class II • RoHS Compliant • 10 Watts Output Power • Regulated Single Outputs • Low Ripple & Noise • MTBF > 330,000 Hours • Fully Encapsulated Plastic Case • PCB Mountable Switching Power Supply • -25°C to +70°C Operating Temperature Range • Optional -40°C~+70°C Operating Temperature Range • Universal Input Range: 90-264VAC (120-370VDC) • Short Circuit, Over Power, & Over Voltage Protection • UL/cUL, CE, and CB Safety Approvals • Two Screw Terminal Mechanical Options Available
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case
PSAFC-3.3S Input Voltage: 90~264 Output Voltage: 3.3 Output Current: 2.5 A Output Power (W): 8.25 No. Outputs: S Case: PCB Mount Get a Quote
PSAFC-12S Input Voltage: 90~264 Output Voltage: 12 Output Current: 833 mA Output Power (W): 10 No. Outputs: S Case: PCB Mount Get a Quote
PSAFC-15S Input Voltage: 90~264 Output Voltage: 15 Output Current: 667 mA Output Power (W): 10 No. Outputs: S Case: PCB Mount Get a Quote
PSAFC-24S Input Voltage: 90~264 Output Voltage: 24 Output Current: 417 mA Output Power (W): 10 No. Outputs: S Case: PCB Mount Get a Quote
PSAFC-5S Input Voltage: 90~264 Output Voltage: 5 Output Current: 2000mA Output Power (W): 10 No. Outputs: S Case: PCB Mount Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47-63 Hz
Output
Output Voltage: 3.3, 5, 12, 15, 24
Voltage Accuracy: ±2%
Output Current: 2.5A, 2000mA, 833mA, 667mA, 417mA
Output Power (Watts): 8.25, 10
Short Circuit Protection: hiccup mode, automatic recovery
Over Voltage Protection: Zener Diode Clamp
General
Efficiency: Up to 82%
Isolation: 3000VAC
Environmental
Operating Temperature: -25 to 70°C
Storage Temperature: -40 to 70°C
Physical
Weight: 1.8 oz.

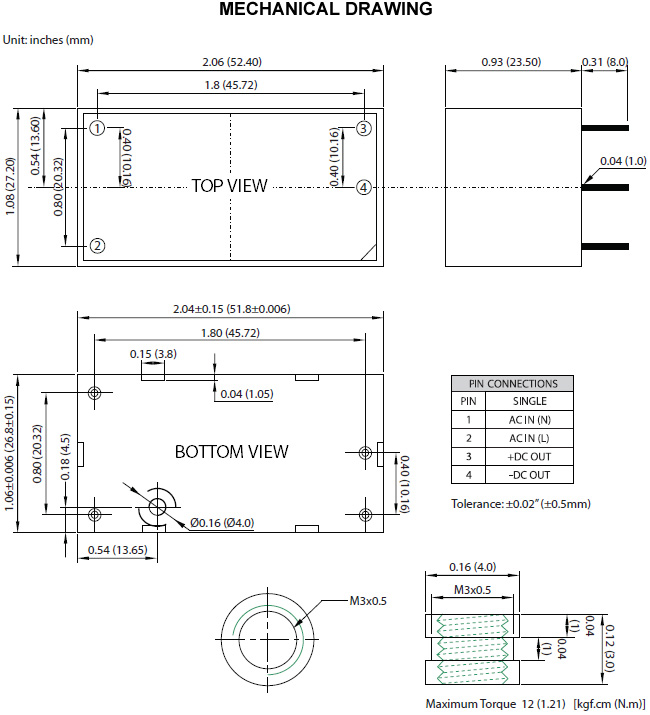

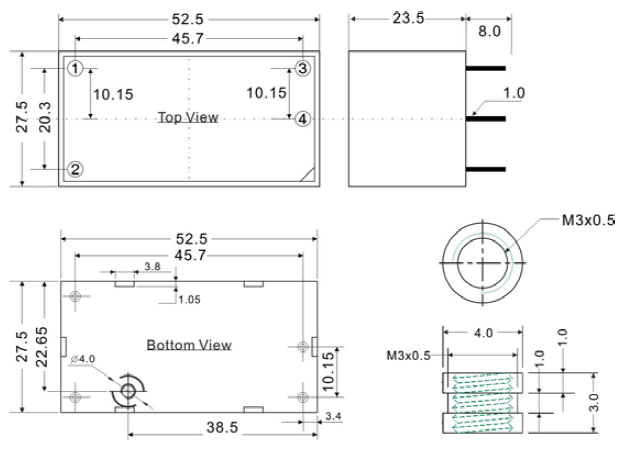

Dimensions: 2.06" x 1.07" x 0.93" (52.4 x 27.2 x 23.5 mm)
Case Material: plastic resin with fiberglass
Notes & safety

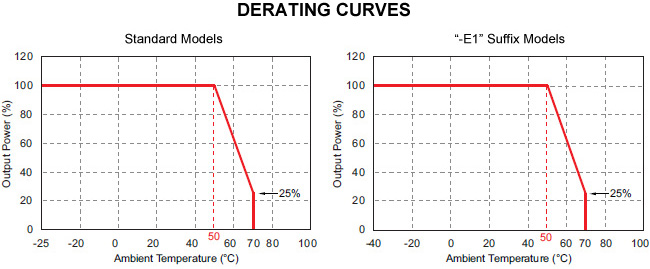

Notes: 1. For -40°C to +70°C extended operating temperature range please add the suffix –E1 to the model number (Ex: PSAFC-12S-E1).

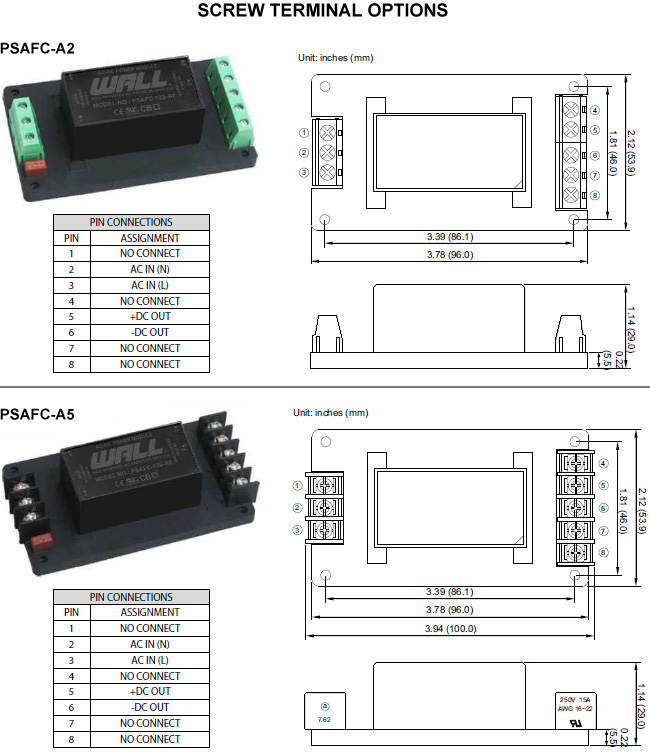

2. Screw terminal mechanical options available (see page 4). Please call factory for ordering details.
Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL/cUL, CE, CB
RoHS Compliance: Yes
