PSAEK3000
The PSAEK3000 series of AC/DC switching power supplies provides up to 3000 Watts of output power in an 11.024” x 6.693” x 2.500” enclosed case. This series consists of single output models ranging from 12VDC to 60VDC with a universal input voltage range of 90~264VAC (127~370VDC). Standard features include high efficiency up to 93%, programmable output voltage and output current, remote on/off, and power OK signal. This series also has over temperature, over voltage, over load, and short circuit protection. All models are RoHS compliant and have UL60950-1 and EN60950-1 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAEK-3000-12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 200A | Output Power (W): 2400 | No. Outputs: S | Case: Enclosed with Fan | Size: 11.024" x 6.693" x 2.5" | Get a Quote |
| PSAEK-3000-15 | Input Voltage: 90~264 | Output Voltage: 15 | Output Current: 160A | Output Power (W): 2400 | No. Outputs: S | Case: Enclosed with Fan | Size: 11.024" x 6.693" x 2.5" | Get a Quote |
| PSAEK-3000-24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 125A | Output Power (W): 3000 | No. Outputs: S | Case: Enclosed with Fan | Size: 11.024" x 6.693" x 2.5" | Get a Quote |
| PSAEK-3000-30 | Input Voltage: 90~264 | Output Voltage: 30 | Output Current: 100A | Output Power (W): 3000 | No. Outputs: S | Case: Enclosed with Fan | Size: 11.024" x 6.693" x 2.5" | Get a Quote |
| PSAEK-3000-48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 62.5A | Output Power (W): 3000 | No. Outputs: S | Case: Enclosed with Fan | Size: 11.024" x 6.693" x 2.5" | Get a Quote |
| PSAEK-3000-60 | Input Voltage: 90~264 | Output Voltage: 60 | Output Current: 50A | Output Power (W): 3000 | No. Outputs: S | Case: Enclosed with Fan | Size: 11.024" x 6.693" x 2.5" | Get a Quote |
| PSAEK-3000-36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 83.5A | Output Power (W): 3006 | No. Outputs: S | Case: Enclosed with Fan | Size: 11.024" x 6.693" x 2.5" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Remote ON/OFF: | Yes |
| PFC: | 0.98, 0.95 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 12, 15, 24, 30, 36, 48, 60 |
| Voltage Accuracy: | ±2.0% |
| Output Current: | 200A, 160A, 125A, 100A, 83.5A, 62.5A, 50A |
| Output Power (Watts): | 2400, 3000, 3006 |
| Output Trim/Adjustability: | ±5% |
| Over Voltage Protection: | Variable OVP, 120% ±7% Vout |
| Thermal Protection: | Yes |
| General | |
| Efficiency: | Up to 93% |
| Isolation: | 3000VAC |
| Environmental | |
| Operating Temperature: | -20 to 60°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 8.38 lbs (3.8kg) |

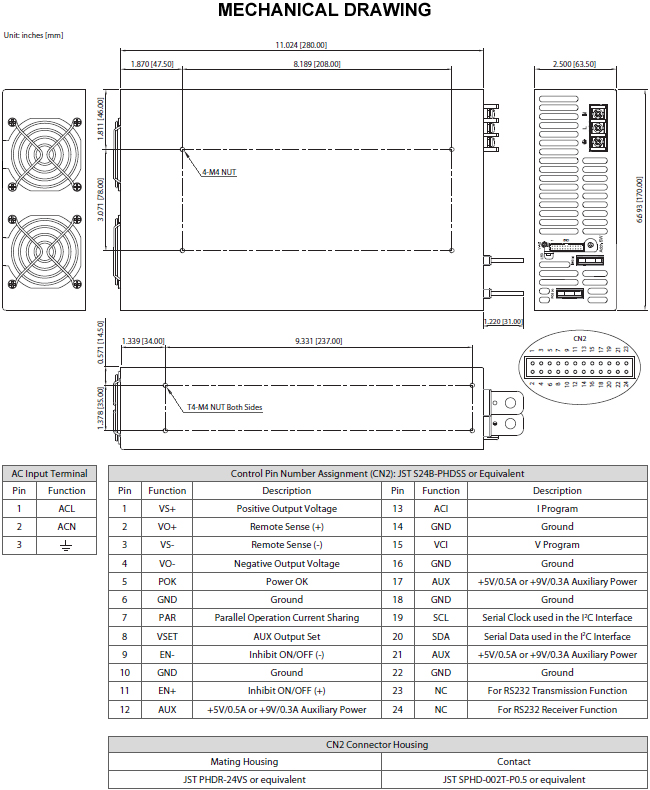

| Dimensions: | 11.024" x 6.693" x 2.500" (280.00 x 170.00 x 63.50 mm) |
| Notes & safety | |

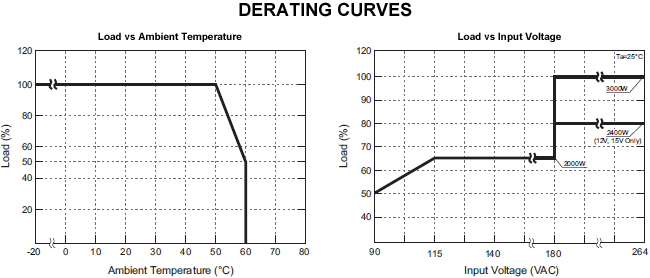

| Notes: | 1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel. 2. For voltages near the low end of the input voltage range, see the derating curve for the power supply output rating. 3. When in parallel operation only one unit might operate if the total output load is less than 5% of the rated load condition. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL60950-1, EN60950-1 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/ Bauart Gepruft |
