PSAEC60

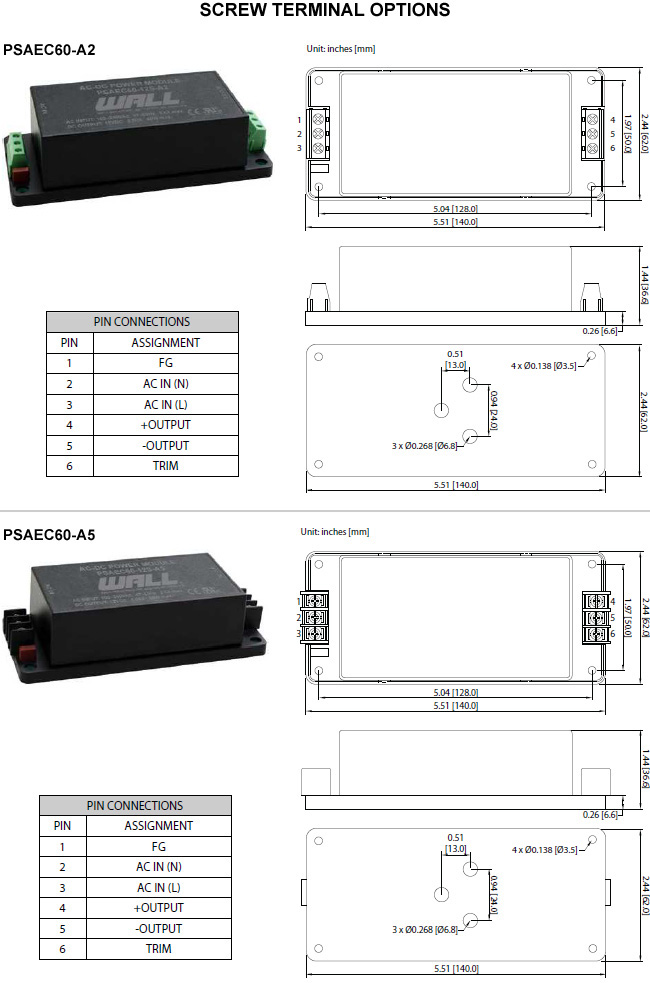

The PSAEC60 series of AC/DC power supplies provides up to 60 watts of output power in a 4.3” x 2.30” x 1.18” encapsulated PCB mountable package. This series consists of single output models with a universal input range of 90-264VAC (120-370VDC). Some features include 4000VAC I/O isolation, -40°C to +70°C operating temperature range, ±10% output trim, and efficiency up to 86%. This series is also protected against over power, over voltage, and short circuit conditions. The standard case and A2 model types have CE & UL safety approvals. This series also has two types of screw terminal options available.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSAEC60-5S | Input Voltage: 85~265 | Output Voltage: 5 | Output Current: 10A | Output Power (W): 50 | No. Outputs: S | Case: PCB Mount | Size: 4.3" x 2.30" x 1.18" | Get a Quote |
| PSAEC60-12S | Input Voltage: 85~265 | Output Voltage: 12 | Output Current: 5A | Output Power (W): 60 | No. Outputs: S | Case: PCB Mount | Size: 4.3" x 2.30" x 1.18" | Get a Quote |
| PSAEC60-15S | Input Voltage: 85~265 | Output Voltage: 15 | Output Current: 4A | Output Power (W): 60 | No. Outputs: S | Case: PCB Mount | Size: 4.3" x 2.30" x 1.18" | Get a Quote |
| PSAEC60-24S | Input Voltage: 85~265 | Output Voltage: 24 | Output Current: 2.5 A | Output Power (W): 60 | No. Outputs: S | Case: PCB Mount | Size: 4.3" x 2.30" x 1.18" | Get a Quote |
| PSAEC60-48S | Input Voltage: 85~265 | Output Voltage: 48 | Output Current: 1.25 A | Output Power (W): 60 | No. Outputs: S | Case: PCB Mount | Size: 4.3" x 2.30" x 1.18" | Get a Quote |
| PSAEC60-9S | Input Voltage: 85~265 | Output Voltage: 9 | Output Current: 6.66 A | Output Power (W): 60 | No. Outputs: S | Case: PCB Mount | Size: 4.3" x 2.30" x 1.18" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~265 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 5, 9, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2% |
| Output Current: | 1.25A, 2.5A, 4A, 5A, 6.66A, 10A |
| Output Power (Watts): | 50, 60 |
| Output Trim/Adjustability: | ±10% |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Zener Diode Clamp |
| General | |
| Efficiency: | Up to 86% |
| Isolation: | 4000VAC (Input to Output) 1500VAC (Input to FG) 500VAC (Output to FG) |
| Environmental | |

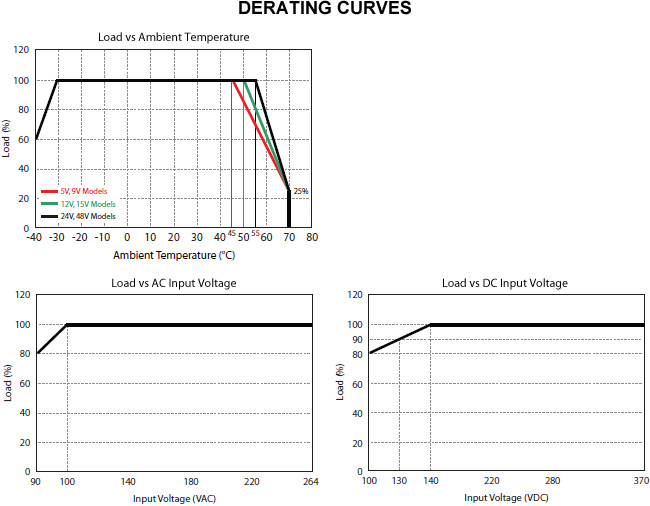

| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -50 to 85°C |
| Physical | |
| Weight: | 10.93 oz. |

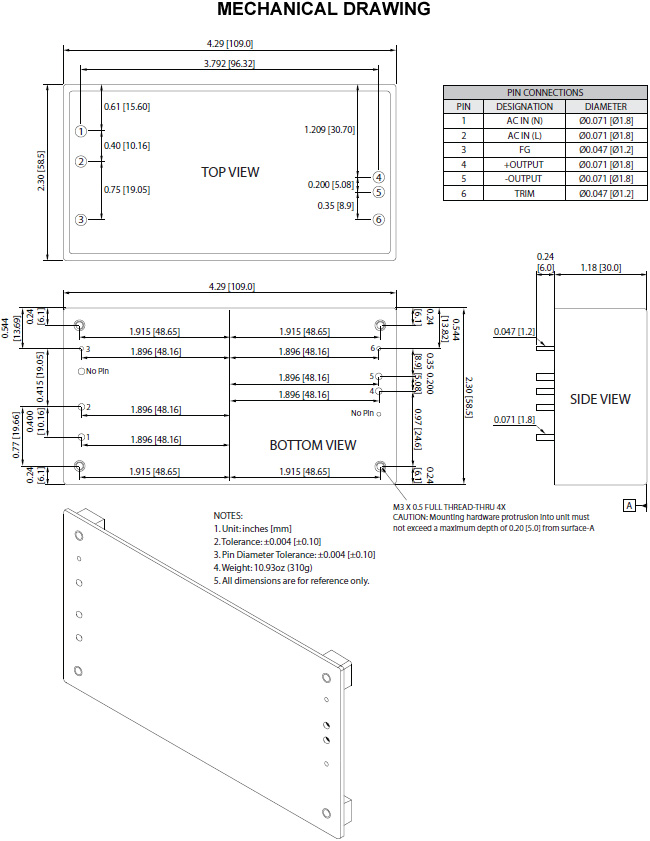

| Dimensions: | 4.3" x 2.30" x 1.18" (109.0 x 58.5 x 30.0 mm) |
| Notes & safety | |
| Notes: | 1. A minimum loading on the output is required to maintain all specified regulations. Operation under no-load conditions will not damage these devices; however, they may not meet all listed specifications. 2. Ripple & noise is measured at 20MHz bandwidth, full load, and with 47µF and 0.1µF capacitors in parallel across the output. 3. It is necessary to add a Varistor 14S471K in parallel on the L/N input side. 4. Screw terminal mechanical options available. Please call factory for ordering details. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC/EN 60950, EN 62368-1 |
