PSAE800

The PSAE800 series of AC/DC switching power supplies provides up to 804 Watts of output power in a 9.80” x 5.00” x 1.61” enclosed case. This series consists of single output models ranging from 12~60VDC with an input voltage range of 90~264VAC. Standard features include high efficiency up to 93%, active PFC, programmable output voltage and output current, remote on/off, remote sense, power OK signal, and internal ball bearing fan. This series also has over voltage, over load, and over temperature protection. All models are RoHS compliant and have UL 60950-1, 2nd edition and TUV EN60950-1: 2006+A11 safety approvals.

• RoHS Compliant • Active PFC > 0.95 at 230VAC • Up to 804 Watts Output Power • High Efficiency up to 93% • 4242VDC I/O Isolation • Constant Current Limiting • Intelligent LED Indicators • Optional RS232 Function • Built-in I2C Serial Data Bus • 1U Profile, High Power Density • Protection: OLP, OVP, OTP, Fan Failure • Programmable Output Voltage (0~105%) • Programmable Output Current (0~105%) • Power OK Signal (Power Good, Logic Low) • Remote ON/OFF, Remote Sense Functions • Universal Input Voltage Range: 90-264VAC • Single Outputs Ranging from 12~60VDC • +5V/0.5A or +8V/0.3A Auxiliary Output Selectable by User • Forced Current Sharing at Parallel Operation • UL 60950-1, 2nd edition, TUV EN60950-1: 2006+A11 Approvals

Get a Quote Request a Sample Custom Solutions

Models
Specifications

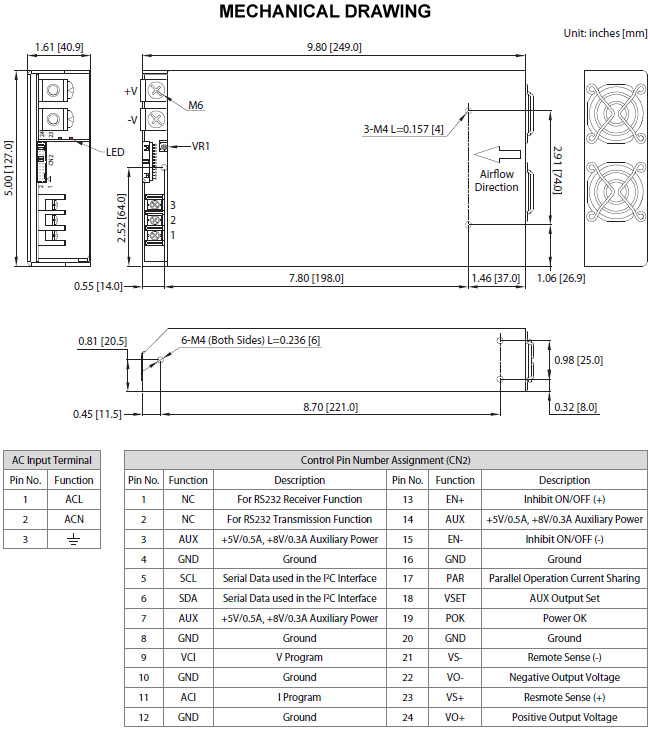

Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
PSAE-800-12	Input Voltage: 90~264	Output Voltage: 12	Output Current: 66.7A	Output Power (W): 800	No. Outputs: S	Case: Enclosed with Fan	Size: 9.8" x 5" x 1.61"	Get a Quote
PSAE-800-15	Input Voltage: 90~264	Output Voltage: 15	Output Current: 53.4A	Output Power (W): 801	No. Outputs: S	Case: Enclosed with Fan	Size: 9.8" x 5" x 1.61"	Get a Quote
PSAE-800-30	Input Voltage: 90~264	Output Voltage: 30	Output Current: 26.7A	Output Power (W): 801	No. Outputs: S	Case: Enclosed with Fan	Size: 9.8" x 5" x 1.61"	Get a Quote
PSAE-800-48	Input Voltage: 90~264	Output Voltage: 48	Output Current: 16.7A	Output Power (W): 801.6	No. Outputs: S	Case: Enclosed with Fan	Size: 9.8" x 5" x 1.61"	Get a Quote
PSAE-800-36	Input Voltage: 90~264	Output Voltage: 36	Output Current: 22.3A	Output Power (W): 802.8	No. Outputs: S	Case: Enclosed with Fan	Size: 9.8" x 5" x 1.61"	Get a Quote
PSAE-800-24	Input Voltage: 90~264	Output Voltage: 24	Output Current: 33.5A	Output Power (W): 804	No. Outputs: S	Case: Enclosed with Fan	Size: 9.8" x 5" x 1.61"	Get a Quote
PSAE-800-60	Input Voltage: 90~264	Output Voltage: 60	Output Current: 13.4A	Output Power (W): 804	No. Outputs: S	Case: Enclosed with Fan	Size: 9.8" x 5" x 1.61"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	90~264
Remote ON/OFF:	Yes
PFC:	0.98, 0.95
Input Frequency:	47 - 63Hz
Output
Output Voltage:	12, 15, 24, 30, 36, 48, 60
Voltage Accuracy:	±2.0%
Output Current:	66.7A, 53.4A, 33.5A, 26.7A, 22.3A, 16.7A, 13.4A
Output Power (Watts):	800, 801, 801.6, 802.8, 804
Output Trim/Adjustability:	±5%
Over Voltage Protection:	Variable OVP, 120% ±7% Vout
Thermal Protection:	Yes
General
Efficiency:	Up to 93%
Isolation:	4242VDC
Environmental
Operating Temperature:	-20 to 60°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	3.75 lbs (1700g)
Dimensions:	9.80" x 5.00" x 1.61" (249.0 x 127.0 x 41.0 mm)
Notes & safety

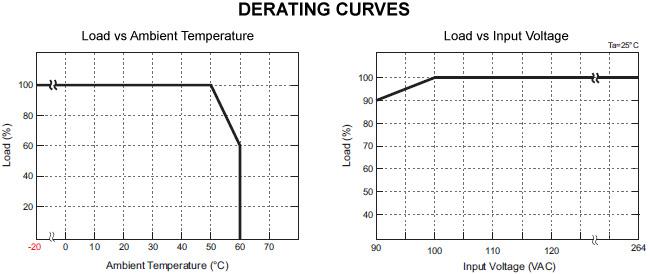

Notes:	1. Ripple & noise is measured at 20MHz limited bandwidth and using a 12" twisted pair-wire terminated with a 0.1µF & 47µF capacitors in parallel. 2. For voltages near the low end of the input voltage range, see the derating curve for the power supply output rating. 3. When in parallel operation only one unit might operate if the total output load is less than 5% of the rated load condition. 4. The power supply is considered a component which will be installed into final equipment. The final equipment must be re- confirmed that it still meets EMC directives. 5. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	UL 60950-1, 2nd edition, TUV EN60950-1: 2006+A11
RoHS Compliance:	Yes
TUV Efficiency Level:	TUV EN60950-1: 2006+A11
