PSABC05

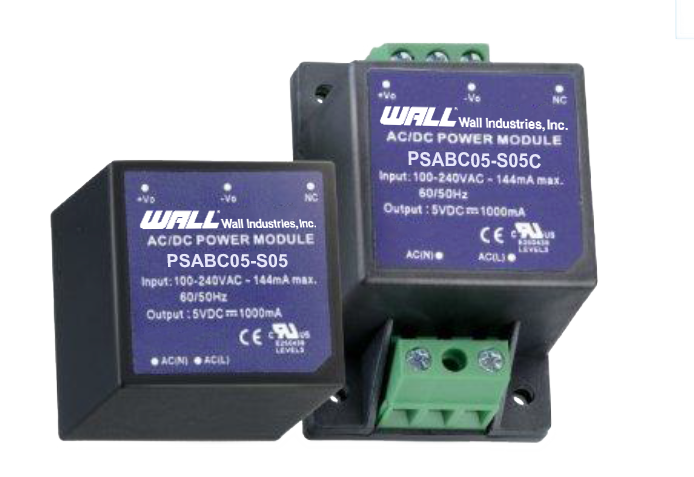

The PSACB05 series of AC/DC PCB mount power supplies offers up to 5 watts of output power in a compact PCB or Chassis mount package. This series consists of single output models with 85-264VAC input and no minimum load requirement. Each model in this series is RoHS & REACH compliant, has over load and short circuit protection, and has I/O isolation 3000VAC with reinforced insulation. This series has UL/cUL/IEC/EN 60950-1, TUV IEC/EN 60335-1 & CE marking.
• Input Voltage Range of 85-264VAC
• Fully Encapsulated Plastic Case for PCB and Chassis Mount Versions
• No Load Min. Load Requirement
• RoHS & REACH Compliant
• Over Voltage and Short Circuit Protection
• Protection Class II as per IEC/EN 60536
• I/O Isolation 3000VAC with Reinforced Insulation
• UL/cUL/IEC/EN 60950-1, TUV IEC/EN 60335-1 & CE Marking
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| PSABC05-S03 | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 1515mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSABC05-S05 | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSABC05-S09 | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 555mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSABC05-S12 | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 416mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSABC05-S15 | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 333mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSABC05-S24 | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 208mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSABC05-S48 | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 104mA | Output Power (W): 5 | No. Outputs: S | Case: PCB Mount | Size: 1" x 1" x 0.64" | Get a Quote |
| PSABC05-S03C | Input Voltage: 85~264 | Output Voltage: 3.3 | Output Current: 1515mA | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 1.62" x 1.02" x 0.76" | Get a Quote |
| PSABC05-S05C | Input Voltage: 85~264 | Output Voltage: 5 | Output Current: 1000mA | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 1.62" x 1.02" x 0.76" | Get a Quote |
| PSABC05-S09C | Input Voltage: 85~264 | Output Voltage: 9 | Output Current: 555mA | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 1.62" x 1.02" x 0.76" | Get a Quote |
| PSABC05-S12C | Input Voltage: 85~264 | Output Voltage: 12 | Output Current: 540mA | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 1.62" x 1.02" x 0.76" | Get a Quote |
| PSABC05-S15C | Input Voltage: 85~264 | Output Voltage: 15 | Output Current: 333mA | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 1.62" x 1.02" x 0.76" | Get a Quote |
| PSABC05-S24C | Input Voltage: 85~264 | Output Voltage: 24 | Output Current: 208mA | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 1.62" x 1.02" x 0.76" | Get a Quote |
| PSABC05-S48C | Input Voltage: 85~264 | Output Voltage: 48 | Output Current: 104mA | Output Power (W): 5 | No. Outputs: S | Case: Chassis Mount | Size: 1.62" x 1.02" x 0.76" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 85~264 |
| Input Frequency: | 47 - 63Hz |
| Output | |
| Output Voltage: | 3.3, 5, 9, 12, 15, 24, 48 |
| Voltage Accuracy: | ±2.0% |
| Output Current: | 104mA, 208mA, 333mA, 416mA, 555mA, 1000mA, 1515mA |
| Output Power (Watts): | 5 |
| General | |
| Efficiency: | 85% |
| Isolation: | 3000VACrms |
| Environmental | |
| Operating Temperature: | -25 to +70ºC |
| Storage Temperature: | -40 to +85ºC |
| Physical | |
| Weight: | PCB Mount: 0.69oz (19.7g) Chassis Mount: 0.84oz (23.9g) |
| Dimensions: | PCB Mount: 1in x 1in x 0.64in (25.4mm x 25.4mm x 16.3mm) Chassis Mount: 1.62in x 1.02in x 0.76in (42mm x 26mm x 19.3mm) |
| Case Material: | Plastic Resin |
| Notes & safety | |
| Notes: | 1. PCB mount is standard. To indicate chassis mount add C to end of model number. 2. Peak load lasts <30S with maximum duty cycle of 10%, average output power should not exceed maximum power. 3. Ripple & Noise of PCB mounting type measured with a 1µF/50V MLCC. 4. It is recommended to protect the converter by a slow blow fuse in the input supply line. 5. Other inputs and outputs may be available, please contact factory. 6. “Natural convection” is about 20LFM but is not equal to still air (0 LFM). 7. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60950-1 recognition (UL Certificate), IEC/EN 60950-1 (CB Report) IEC/EN 60335-1 Recognition (CB Report, TUV Certificate) |
| RoHS Compliance: | Yes |
