DTZM250

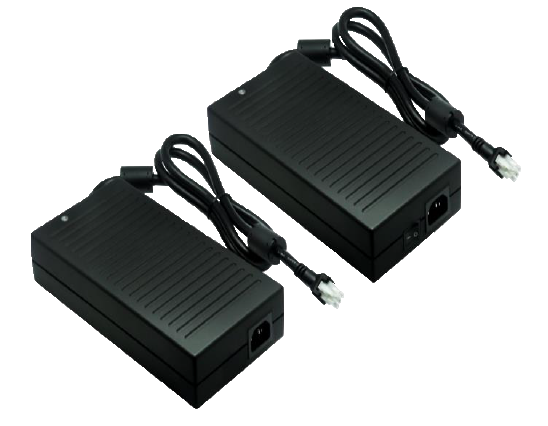

The DTZM250 series of AC/DC medical/ITE desktop power supply offers up to 250 watts of output power in a 7.87” x 3.54” x 1.77” package with IEC320-C14 inlet. This series consists of single output models with a wide input voltage range of 90~264VAC and high efficiency. Each model in this series is RoHS, DOE Level VI, EU ERP Tier 2 Compliant, has 2x MOPP safety approvals, and has short circuit, over load, and over voltage protection. This series has both ITE & medical approvals. Please contact factory for order details.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTZM250-S12 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 20.83A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.87" x 3.54" x 1.77" | Get a Quote |
| DTZM250-S19 | Input Voltage: 90~264 | Output Voltage: 19 | Output Current: 13.157A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.87" x 3.54" x 1.77" | Get a Quote |
| DTZM250-S24 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 10.416A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.87" x 3.54" x 1.77" | Get a Quote |
| DTZM250-S28 | Input Voltage: 90~264 | Output Voltage: 28 | Output Current: 8.928A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.87" x 3.54" x 1.77" | Get a Quote |
| DTZM250-S36 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 6.94A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.87" x 3.54" x 1.77" | Get a Quote |
| DTZM250-S48 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 5.208A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.87" x 3.54" x 1.77" | Get a Quote |
| DTZM250-S54 | Input Voltage: 90~264 | Output Voltage: 54 | Output Current: 4.629A | Output Power (W): 250 | No. Outputs: S | Case: Desktop | Size: 7.87" x 3.54" x 1.77" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| PFC: | @115VAC, Full load: 0.95 @230VAC, Full Load: 0.90 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 12, 19, 24, 28, 36, 48, 54 |
| Output Current: | 4.629A, 5.208A, 6.94A, 8.928A, 10.416A, 13.157A, 20.83A |
| Output Power (Watts): | 250 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 105-160% |
| General | |
| Efficiency: | >89% |
| Environmental | |
| Operating Temperature: | -20 to +60ºC |
| Storage Temperature: | -20 to +85ºC |
| Physical | |
| Weight: | 2.87lbs (1.3kgs) |
| Dimensions: | 7.87in x 3.54in x 1.77in (200mm x 90mm x 45mm) |
| Notes & safety | |

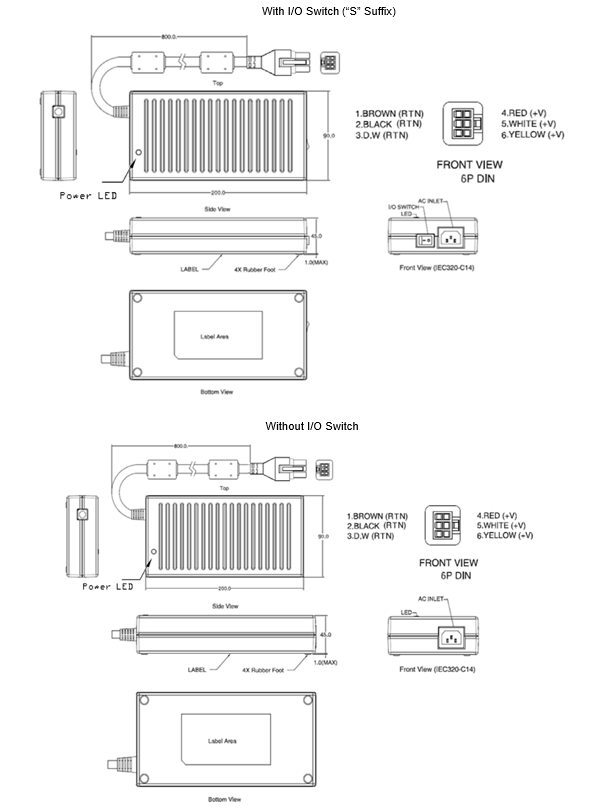

| Notes: | 1. I/O switch is optional for this series. To indicate a product with no switch, no suffix should be added. To indicate a switch, add an “S” to the model number. Ex: DTZM250-S12S There are also grounding options for this series: A=isolated & PE is disconnected O/P cable & B=isolated & PE is connected O/P cable. 2. Ripple & Noise are measured at oscilloscope 20MHz bandwidth by a 47uF electrolytic capacitor and a 0.1uF ceramic capacitor in parallel at output connector. 3. 25%, 50%, 75%, and 100% of Full Load 4. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL/cUL 60601-1 3.1 Edition, TUV EN60601-1 3.1 Edition, CB IEC 60601-1 3.1 Edition, UL/cUL UL6090-1, TUV EN60950-1, CB IEC 609509-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
