DTSPU45
The DTSPU45A series of single output AC DC desktop power supplies provides up to 40 watts of continuous output power. This series includes IEC-320-C14 input for worldwide applications. All supplies are UL 94V-1 min compliant and all models meet FCC part 15-class B and CISPR-22 class B emission. Limits are designed to comply with UL/c-UL (UL 60950-1: 2nd Edition), TUV/GS (EN 60950-1:2nd Edition) and new CE requirements. All units are 100% burn-in tested.
• Wide Operating Voltage 90 to 264VAC
• 47 to 63Hz Input Frequency
• IEC-320-C14 Input Inlet
• Optional Output Connectors Available
• Single, Dual, and Triple Outputs
• High Efficiency Up to 84.2%
• Over Voltage, Over Load, and Short Circuit Protection
• Class I
• UL 60950-1:2nd Edition, IEC 60950-1:2005/A2:2013, EN60950-1:2005/A2:2013 Safety Approvals
• Dual and Triple Models Meet Level VI Efficiency
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTSPU45-216 | Input Voltage: 90~264 | Output Voltage: 5.1, 7.2 | Output Current: 1A, 2.6A | Output Power (W): 23.82 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-204 | Input Voltage: 90~264 | Output Voltage: 3.3, 5 | Output Current: 5A, 2A | Output Power (W): 26.5 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-101 | Input Voltage: 90~264 | Output Voltage: 3~5 | Output Current: 8.00A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-200 | Input Voltage: 90~264 | Output Voltage: 3, 12 | Output Current: 5A, 2A | Output Power (W): 40 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-102 | Input Voltage: 90~264 | Output Voltage: 5~6 | Output Current: 6.66~8.00A | Output Power (W): 42 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-103 | Input Voltage: 90~264 | Output Voltage: 6~8 | Output Current: 5.25~7.00A | Output Power (W): 42 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-201 | Input Voltage: 90~264 | Output Voltage: 5, 12 | Output Current: 5A, 2A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-202 | Input Voltage: 90~264 | Output Voltage: 5, 15 | Output Current: 5A, 1.5A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-209 | Input Voltage: 90~264 | Output Voltage: 12, -12 | Output Current: 3A, 1A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-210 | Input Voltage: 90~264 | Output Voltage: 15, -15 | Output Current: 2A, 1A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-215 | Input Voltage: 90~264 | Output Voltage: 5, -24 | Output Current: 5A, 1A | Output Power (W): 42 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-300 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -12 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-301 | Input Voltage: 90~264 | Output Voltage: 5, 12, -5 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-302 | Input Voltage: 90~264 | Output Voltage: 5, 12, -12 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-303 | Input Voltage: 90~264 | Output Voltage: 5, 15, -15 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-304 | Input Voltage: 90~264 | Output Voltage: 5, 24, -24 | Output Current: 5A, 1A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-305 | Input Voltage: 90~264 | Output Voltage: 5, 24, -12 | Output Current: 5A, 1A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-306 | Input Voltage: 90~264 | Output Voltage: 3.3, 12, -5 | Output Current: 5A, 2A, 0.8A | Output Power (W): 42 | No. Outputs: T | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 4.00~5.63A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 3.46~4.00A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 2.81~3.46A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-203 | Input Voltage: 90~264 | Output Voltage: 5, 24 | Output Current: 5A, 1A | Output Power (W): 45 | No. Outputs: D | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 2.38~3.12A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 1.85~2.30A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 1.51~1.85A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 1.25~1.51A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| DTSPU45-111 | Input Voltage: 90~264 | Output Voltage: 40~50 | Output Current: 1.00~1.25A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.99" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 3.3, 5, -5, 5.1, 7.2, 12, -12, 15, -15, 24, -24 |
| Output Current: | 8A, 6.66~8A, 5.25~7.00A, 4.00~5.63A, 3.46~4.00A, 2.81~3.46A, 2.81~3.46A, 2.38~3.12A, 1.85~2.30A, 1.51~1.85A, 1.25~1.51A, 1.00~1.25A, 0.8A, 5A, 3A, 2A, 1A, 1.5A, 2.6A |
| Output Power (Watts): | 23.82, 26.5, 40, 42, 45, 50 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | 112-132% |
| General | |
| Efficiency: | 75-84.2% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 18.87~19.75oz (535~560g) |

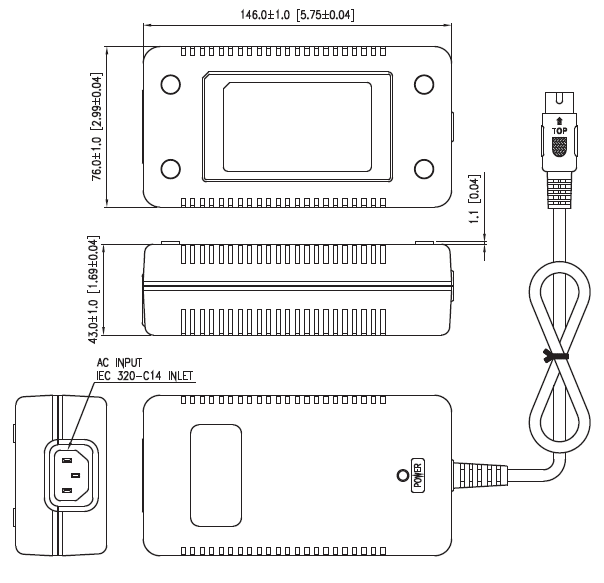

| Dimensions: | 5.75" x 2.99" x 1.69" |
| Notes & safety | |
| Notes: | (1) Output can provide up to peak load when the power supply starts up. Staying in more than rated load continually is not allowed. (2) At factory, each output is checked to be within voltage accuracy in 60% rated load condition. (3) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (4) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (5) Ripple and Noise measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. (6) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (7) DTSPU45-101~111 are available on CCC mark (8) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL.c-UL (UL 60950-1:2nd Edition), TUV/GS (EN 60950-1:2nd Edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1: 2nd edition) |
| Energy Star Compliance: | Dual and Triple Models Meet Level VI |
