DTSPU41A
The DTSPU41 series of single output AC/DC switching mode power supplies provides up to 40 watts of continuous output power. Includes IEC-320-C14 input for worldwide applications. All supplies are UL 94V-1 min compliant and all models meet FCC Part 15- class B and CISPR-22 class B emission. Limits are designed to comply with UL/c-UL (UL 60950-1:2nd edition, TUV/GS (EN 60950-1:2nd Edition) and new CE requirements. All units are 100% burn-in tested.
• Wide Operating Voltage: 90 to 264 VAC, 47-63Hz
• IEC-320-C14 Input Inlet
• Single Output
• Class I
• Optional Output Connectors Available
• Cooling by Free Air Convection
• UL/cUL (UL 60950-1:2nd Edition), TUV/GS (EN60950-1:2nd Edition) Safety Approvals
• Energy Star 2.0, Efficiency level VI
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTSPU41A-102 | Input Voltage: 90~264 | Output Voltage: 5~5.99 | Output Current: 5A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-103 | Input Voltage: 90~264 | Output Voltage: 6.5~8 | Output Current: 3.75~4.61A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-104 | Input Voltage: 90~264 | Output Voltage: 8~11 | Output Current: 3.18~4.38A | Output Power (W): 35 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-105 | Input Voltage: 90~264 | Output Voltage: 11~13 | Output Current: 3.07~3.64A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-106 | Input Voltage: 90~264 | Output Voltage: 13~16 | Output Current: 2.50~3.07A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-107 | Input Voltage: 90~264 | Output Voltage: 16~21 | Output Current: 1.90~2.50A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-108 | Input Voltage: 90~264 | Output Voltage: 21~27 | Output Current: 1.48~1.90A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-109 | Input Voltage: 90~264 | Output Voltage: 27~33 | Output Current: 1.21~1.48A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-110 | Input Voltage: 90~264 | Output Voltage: 33~40 | Output Current: 1.00~1.21A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| DTSPU41A-111 | Input Voltage: 90~264 | Output Voltage: 40~48 | Output Current: 0.83~1.00A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 4.21" x 1.85" 1.18" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6.5~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~48 |
| Output Current: | 5A, 3.75~4.61A, 3.18~4.38A, 3.07~3.64A, 2.50~3.07A, 1.90~2.50A, 1.48~1.90A, 1.21~1.48, 1.00~1.21A, 0.83~1.00A |
| Output Power (Watts): | 30, 35, 40 |
| Short Circuit Protection: | Automatic Recovery |
| General | |
| Efficiency: | 83-90% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | Approx. 9.35~9.88oz |

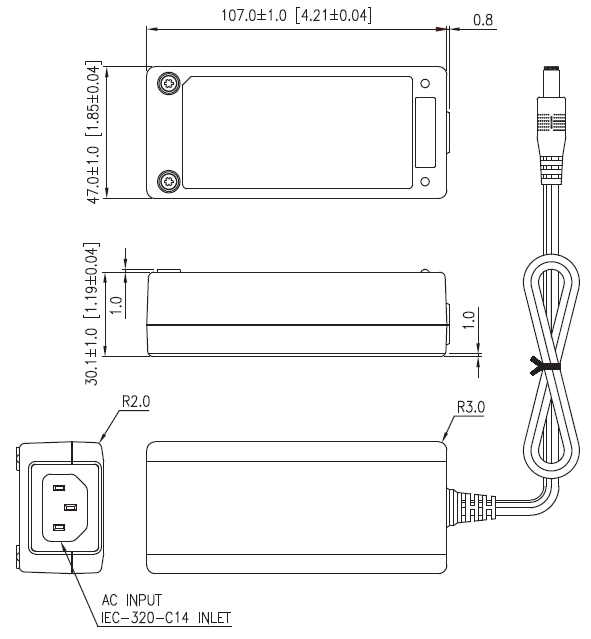

| Dimensions: | 4.21" x 1.85" 1.18" |
| Notes & safety | |
| Notes: | (1) Ripple and Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47µF capacitor at rated load and nominal line. (2) Efficiency is measured at rated load and nominal line. (3) Output can provide up to peak load when the power supply starts up. Staying in more than rated load continually is not allowed. (4) Each output is checked to be within voltage accuracy at 60% rated load condition. (5) Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. (6) Load regulation is defined by changing ±40% of measured output load from 60% rated load. (7) Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. (8) The DTSPUA-102 is available on NRCan mark. (9) DTSPU41-102~104 are required to use AWG#16/4FT output cable. DTSPU41-105~107 are required to use AWG#18/4FT output cable. DTSPU41-108~111 are required to use AWG#18/6FT output cable. Regulation and efficiency will be changed by modified output cable. (10) This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL/cUL (UL 60950-1:2nd Edition), TUV/GS (EN 60950-1:2nd Edition) |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS (EN 60950-1: 2nd edition) |
| Energy Star Compliance: | Level VI |
