DTSPU25
The DTSPU25 Series of AC/DC switching mode single output power supplies provides 25 watts of continuous output power. This Series has three types of AC inlet connectors to choose from: Type A (IEC-320-C14), Type B (IEC-320-C8), and Type C (IEC-320-C6). All supplies are UL 94V-1 compliant. All models meet FCC Part-15 class B and CISPR-22 class B emission limits and are designed to comply with UL/cUL (UL 60950-1), TUV/GS (EN 60950-1) and new CE requirements. All units are 100% burn-in tested. Optional output connectors are available please call factory for ordering details.
● Splash Proof
● Single Output
● RoHS Compliant
● Optional Output Connectors
● A & C Types: Class I Insulation
● 3 Types of Inlet Connectors Available
● Wide Input Voltage 90 to 264VAC, 47~63Hz
● B Type: Class II Insulation (Double Insulation)
● Output Voltages Available from 3VDC to 48VDC
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTSPU25A-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 2.75 A | Output Power (W): 16.5 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 2.75 A | Output Power (W): 16.5 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-102 | Input Voltage: 90~264 | Output Voltage: 6 | Output Current: 2.75 A | Output Power (W): 16.5 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 2.5 A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 2.5 A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-103 | Input Voltage: 90~264 | Output Voltage: 8 | Output Current: 2.5 A | Output Power (W): 20 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 2A | Output Power (W): 22 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 2A | Output Power (W): 22 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-104 | Input Voltage: 90~264 | Output Voltage: 11 | Output Current: 2A | Output Power (W): 22 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 1.92 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.56 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.19 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 920 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 750 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 620 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25A-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 520 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 1.92 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.56 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.19 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 920 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 750 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 620 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25B-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 520 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-105 | Input Voltage: 90~264 | Output Voltage: 13 | Output Current: 1.92 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-106 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.56 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-107 | Input Voltage: 90~264 | Output Voltage: 21 | Output Current: 1.19 A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-108 | Input Voltage: 90~264 | Output Voltage: 27 | Output Current: 920 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-109 | Input Voltage: 90~264 | Output Voltage: 33 | Output Current: 750 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-110 | Input Voltage: 90~264 | Output Voltage: 40 | Output Current: 620 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTSPU25C-111 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 520 mA | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63 Hz |
| Output | |
| Output Voltage: | 6, 8, 11, 13, 16, 21, 27, 33, 40 |
| Output Current: | 1.19A, 1.56A, 1.92A, 2A, 2.5A, 2.75A, 520mA, 620mA, 750mA, 920mA |
| Output Power (Watts): | 16.5, 20, 22, 25 |
| Over Voltage Protection: | Yes |
| General | |
| Efficiency: | 75-95% |
| Isolation: | 4242VDC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 6 oz. |

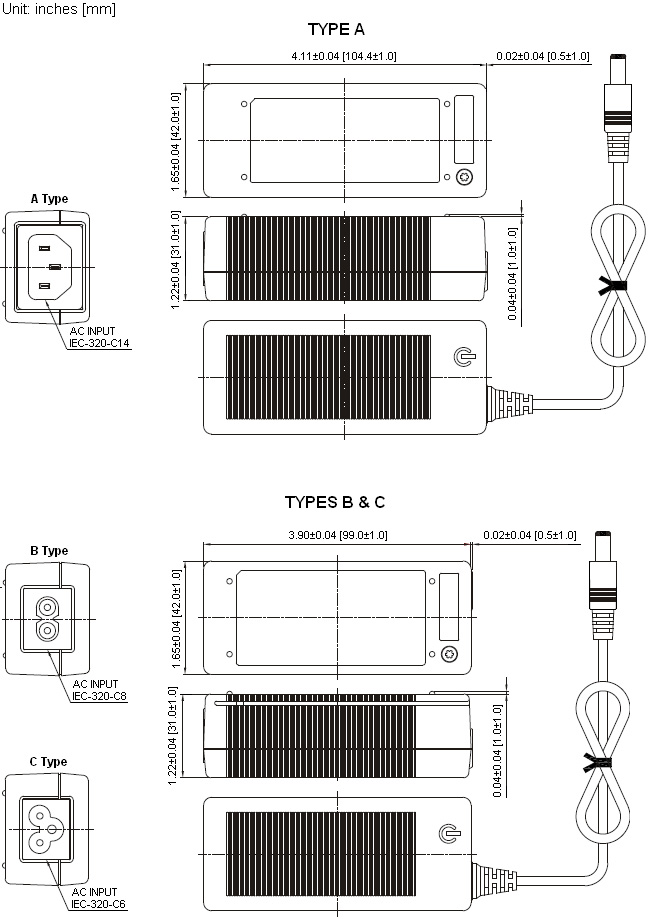

| Dimensions: | A Type: 4.11" x 1.65" x 1.22" (104.4 x 42.0 x 31.0 mm) B & C Types: 3.90" x 1.65" x 1.22" (3.90 x 42.0 x 31.0 mm) |
| Notes & safety | |
| Notes: | 1. The DTSPU25 Series is designated as DTSPU25x-y where x represents the type of AC input inlet connector, which can either be A (IEC-320-C14), B (IEC-320-C8), or C (IEC-320-C6); y can be 102, 103, 104, 105, 106, 107, 108, 109, 110 or 111. 2. The output voltage is specified as a range (Ex: 40 ~ 48 VDC); the customer must specify what they would like the output voltage set at. 3. Models with output voltages under 30VDC have been approved by TUV/PSE. 4. Optional output connectors are available (see “DC Output Plug Selector List” link located at the bottom of the “Desktop” category page). Due to advances in technology, specifications subject to change without notice. |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | TUV/GS EN60950-1: 2nd Edition |
| Energy Star Compliance: | Level V |
