DTSPU151A

The DTSPU151A series of AC/DC desktop power supplies offers up to 150 watts of output power in a 6.61” x 3.06” x 1.78” package with an IEC-320-C14 input inlet. This series consists of single output models with wide operating input voltage range of 90~260VAC. Each model in this series has active power factor correction, is RoHS2 and Level VI compliant, and is cooled by free air convection. This series has CAN/CSA C22.2 No. 62368-1-1, EN62368-1:2014+A11:2017, IEC62368-1, UL62368-1: 2nd, EN60950-1:2006/A2:2013, and IEC 60950-1:2005/A2:2013 safety approvals.

• Wide Operating Input Voltage Range of 90~260VAC • Active Power Factor Correction • IEC-320-C14 Input Inlet • Cooling by Free Air Convection • RoHS2 Compliant • DoE Level VI Compliant • Over Voltage (Latch Off) and Short Circuit Protection • Protection Class I • CAN/CSA C22.2 No. 62368-1-1, EN62368-1:2014+A11:2017, IEC62368-1, UL62368-1: 2nd, EN60950-1:2006/A2:2013, and IEC 60950-1:2005/A2:2013 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTSPU151A-105 Input Voltage: 90~260 Output Voltage: 12 Output Current: 12.5A Output Power (W): 150 No. Outputs: S Case: Desktop Size: 6.61" x 3.06" x 1.78 Get a Quote
DTSPU151A-106 Input Voltage: 90~260 Output Voltage: 15 Output Current: 10A Output Power (W): 150 No. Outputs: S Case: Desktop Size: 6.61" x 3.06" x 1.78 Get a Quote
DTSPU151A-107 Input Voltage: 90~290 Output Voltage: 19 Output Current: 7.89A Output Power (W): 150 No. Outputs: S Case: Desktop Size: 6.61" x 3.06" x 1.78 Get a Quote
DTSPU151A-108 Input Voltage: 90~260 Output Voltage: 24 Output Current: 6.25A Output Power (W): 150 No. Outputs: S Case: Desktop Size: 6.61" x 3.06" x 1.78 Get a Quote
DTSPU151A-109 Input Voltage: 90~260 Output Voltage: 30 Output Current: 5A Output Power (W): 150 No. Outputs: S Case: Desktop Size: 6.61" x 3.06" x 1.78 Get a Quote
DTSPU151A-110 Input Voltage: 90~260 Output Voltage: 36 Output Current: 4.16A Output Power (W): 150 No. Outputs: S Case: Desktop Size: 6.61" x 3.06" x 1.78 Get a Quote
DTSPU151A-111 Input Voltage: 90~260 Output Voltage: 48 Output Current: 3.12A Output Power (W): 150 No. Outputs: S Case: Desktop Size: 6.61" x 3.06" x 1.78 Get a Quote
Specification Value
Input
Input Voltage (Nominal): 100/240
Input Voltage Range: 90~260
PFC: 0.95 - 1
Input Frequency: 47 - 63Hz
Output
Output Voltage: 12, 15, 19, 24, 30, 36, 48
Output Current: 3.12A, 4.16A, 5.00A, 6.25A, 7.89A, 10A, 12.5A
Output Power (Watts): 150
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: 112~132%
General
Efficiency: Up to 90%
Environmental
Operating Temperature: -20 to 70°C
Storage Temperature: -40 to 85°C
Physical
Weight: 1.59lb~1.65lb (720~750g)

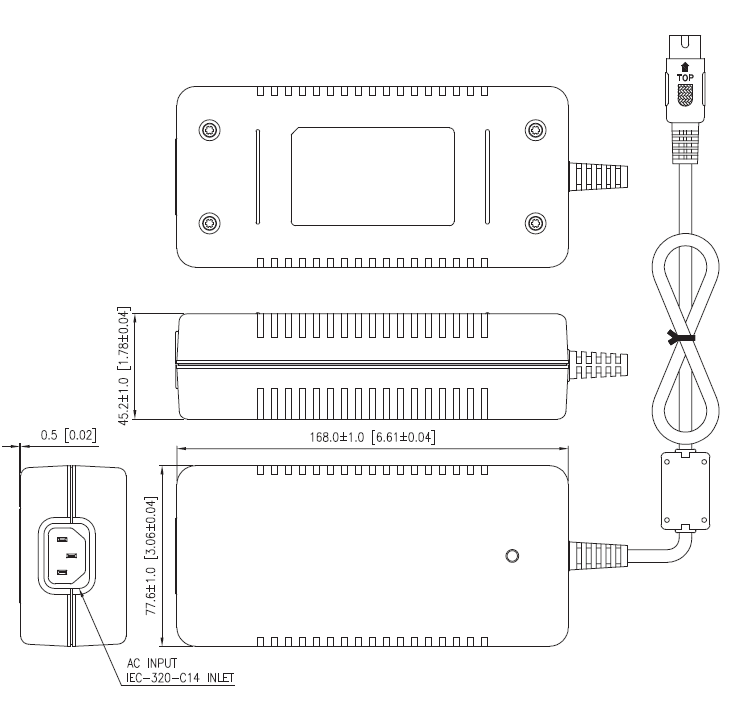

Dimensions: 6.61in x 3.06in x 1.78in (168mm x 77.6mm x 45.2mm)
Notes & safety
Notes: 1. Output can provide up to peak load when the power supply starts up. Continually staying in more than rated load is not allowed.
2. Each output is checked to be within voltage accuracy at factory in 60% rated load condition.
3. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load.
4. Load regulation is defined by changing ±40% of measured output load from 60% rated load.
5. Ripple is measured from peak to peak with a bandwidth-limit of 20MHz (measured at the output connector with a 0.1uF ceramic capacitor and a 47uF electrolytic capacitor).
6. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
7. Efficiency is measured at rated load and nominal line.
8. Output Cables:
DTSPU151A-105~107 required to use AWG#16/5C/4FT output cable.
DTSPU151-108~111 required to use AWG#14/2C/4FT output cable
DTSPU151-105~111 output cable must have core.
The regulation and efficiency will be changed by modified output cable.
Optional output connectors are available. Please contact factory for more details.
9. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: CAN/CSA C22.2 No. 62368-1-1, EN62368-1:2014+A11:2017, IEC62368-1, UL62368-1:2nd, EN60950-1:2006/A2:2013, IEC 60950-1:2005/A2:2013
RoHS Compliance: Yes

Get a Quote
