DTSNP-AF8

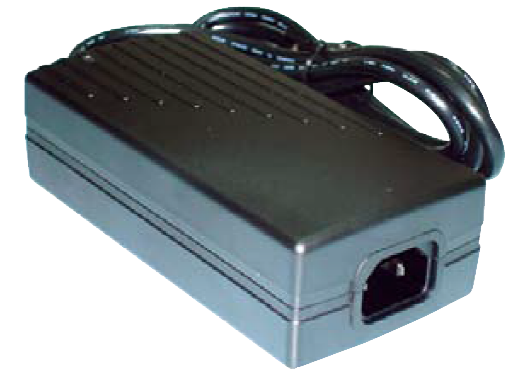

The DTSNP-AF8 series of AC/DC desktop power supplies offers a peak of 100 watts of output power in a 5.71” x 2.83” x 1.65” package. This series consists of single output models and has a 90~264VAC input voltage range. Each model has over load, short circuit, and over voltage protection and is compliant to Level VI. This series has UL60601-1, UL60950-1, CSA C22.2 No. 60950-1 (cUL) TUV EN60601-1, and EN 60950-1 safety approvals.

• Designed for BF Application • Meets 2 x MOPP and Touch Current <100uA • Level VI Eco-Design • High Mechanical Torque Start-Up • RoHS Compliant • High Efficiency of 89% • Over Load, Short Circuit, and Over Voltage Protection • UL60601-1, UL60950-1, CSA C22.2 No. 60950-1 (cUL) TUV EN60601-1, and EN 60950-1 Safety Approvals
Model
Number
Input
Voltage
Output
Voltage
Output
Current
Output
Power (W)
No.
Outputs
Case Size
DTSNP-AF87-3 Input Voltage: 90~264 Output Voltage: 12 Output Current: 6A Output Power (W): 72 No. Outputs: S Case: Desktop Size: 5.71" x 2.83" x 1.65" Get a Quote
DTSNP-AF89-3 Input Voltage: 90~264 Output Voltage: 24 Output Current: 3.2A Output Power (W): 72 No. Outputs: S Case: Desktop Size: 5.71" x 2.83" x 1.65" Get a Quote
Specification Value
Input
Input Voltage (Nominal): 115/230
Input Voltage Range: 90~264
Input Frequency: 47 - 63Hz
Output
Output Voltage: 12, 24
Output Current: 6A, 3.2A
Output Power (Watts): 72
Short Circuit Protection: Automatic Recovery
Over Voltage Protection: Latch Off
General
Efficiency: 89%
Environmental
Operating Temperature: -20 to 60ºC
Storage Temperature: -20 to 85ºC
Physical
Weight: 16.58oz (470g)

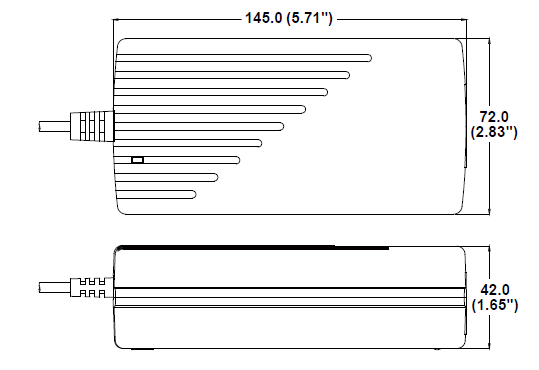

Dimensions: 5.71in x 2.83in x 1.65in
Notes & safety
Notes: 1. Output Load: Rated 72~77W for convection cooling.
2. At peak load, output can last for 5 seconds without shutdown.
3. Each output is checked to be within voltage accuracy in 60% rated load condition.
4. Hold Up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line.
5. Efficiency measured at 25%, 50%, 75%, 100% of rated load and 115VAC/239VAC input.
6. This product is Listed to applicable standards and requirements by UL.
*Due to advances in technology, specifications subject to change without notice.
Safety Approvals: UL60601-1, UL60950-1, CSA C22.2 No. 60950-1(cUL), TUV EN60601-1, EN60950-1
RoHS Compliance: Yes
TUV Efficiency Level: TUV EN60601-1
Energy Star Compliance: Level VI
