DTMPU51

The DTMPU51 series of class I medical AC/DC desktop power supplies provides up to 50 Watts of continuous output power in a 5.75” x 2.99” x 1.69” package. This series consists of single, dual, and triple output models with a 90~264VAC input voltage range and an IEC-320-C14 AC inlet connector. These power supplies are protected against over voltage and over load conditions and have been 100% burn-in tested. All units are CEC/Energy Star Level V, UL 94V-1, and RoHS compliant. The DTMPU51 series also meets FCC Part-18 class B and CISPR-11 EN55011 class B emission limits and has ANSI/AAMI ES 60601-1:2005 (UL/cUL 3rd Edition) and EN 60601-1:2006 (TUV/T-mark 3rd Edition) medical approvals.

• Class I • RoHS Compliant • UL 94V-1 Compliant • CEC/Energy Star Level V Compliant • IEC-320-C14 AC Inlet Connector • 100% Burn-in Tested • Single, Dual, and Triple Outputs • Up to 50 Watts Output Power • Wide Input Voltage Range: 90~264VAC • Over Voltage and Over Load Protection • Meets FCC Part-18 Class B and CISPR-11 EN55011 Class B Emission Limits • ANSI/AAMI ES 60601-1:2005 (UL/cUL 3rd Edition) and EN 60601-1:2006 (TUV/T-mark 3rd Edition) Safety Approvals • Input to Output: 2MOPP • Optional Output Connectors Available

Get a Quote Request a Sample Custom Solutions

Models
Specifications
Drawings

Model Number	Input Voltage	Output Voltage	Output Current	Output Power (W)	No. Outputs	Case	Size
DTMPU51-204	Input Voltage: 90~264	Output Voltage: 3.3, 5	Output Current: 5A, 2A	Output Power (W): 26.5	No. Outputs: D	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-101	Input Voltage: 90~264	Output Voltage: 3~5	Output Current: 10.0 ~ 8.00A	Output Power (W): 40	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-102	Input Voltage: 90~264	Output Voltage: 5~6	Output Current: 8.00 ~ 6.66A	Output Power (W): 40	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-200	Input Voltage: 90~264	Output Voltage: 3.3, 12	Output Current: 5A, 2A	Output Power (W): 40	No. Outputs: D	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-103	Input Voltage: 90~264	Output Voltage: 6~8	Output Current: 7.00 ~ 5.25A	Output Power (W): 42	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-201	Input Voltage: 90~264	Output Voltage: 5, 12	Output Current: 5A, 2A	Output Power (W): 42	No. Outputs: D	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-202	Input Voltage: 90~264	Output Voltage: 5, 15	Output Current: 5, 1.5A	Output Power (W): 42	No. Outputs: D	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-203	Input Voltage: 90~264	Output Voltage: 5, 24	Output Current: 5A, 1A	Output Power (W): 42	No. Outputs: D	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-209	Input Voltage: 90~264	Output Voltage: 12, -12	Output Current: 3A, 1A	Output Power (W): 42	No. Outputs: D	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-210	Input Voltage: 90~264	Output Voltage: 15, -15	Output Current: 2A, 1A	Output Power (W): 42	No. Outputs: D	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-300	Input Voltage: 90~264	Output Voltage: 3.3, 12, -12	Output Current: 5A, 2A, 0.8A	Output Power (W): 42	No. Outputs: T	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-301	Input Voltage: 90~264	Output Voltage: 5, 12, -5	Output Current: 5A, 2A, 0.8A	Output Power (W): 42	No. Outputs: T	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-302	Input Voltage: 90~264	Output Voltage: 5, 12, -12	Output Current: 5A, 2A, 0.8A	Output Power (W): 42	No. Outputs: T	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-303	Input Voltage: 90~264	Output Voltage: 5, 15, -15	Output Current: 5A, 2A, 0.8A	Output Power (W): 42	No. Outputs: T	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-304	Input Voltage: 90~264	Output Voltage: 5, 24, -24	Output Current: 5A, 1A, 0.5A	Output Power (W): 42	No. Outputs: T	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-305	Input Voltage: 90~264	Output Voltage: 5, 24, -12	Output Current: 5A, 1A, 0.8A	Output Power (W): 42	No. Outputs: T	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-306	Input Voltage: 90~264	Output Voltage: 3.3, 12, -5	Output Current: 5A, 2A, 0.8A	Output Power (W): 42	No. Outputs: T	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-104	Input Voltage: 90~264	Output Voltage: 8~11	Output Current: 5.63 ~ 4.00A	Output Power (W): 45	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-105	Input Voltage: 90~264	Output Voltage: 11~13	Output Current: 4.00 ~ 3.46A	Output Power (W): 45	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-106	Input Voltage: 90~264	Output Voltage: 13~16	Output Current: 3.46 ~ 2.81A	Output Power (W): 45	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-107	Input Voltage: 90~264	Output Voltage: 16~21	Output Current: 3.12 ~ 2.38A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-108	Input Voltage: 90~264	Output Voltage: 21~27	Output Current: 2.30 ~ 1.85A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-109	Input Voltage: 90~264	Output Voltage: 27~33	Output Current: 1.85 ~ 1.51A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-110	Input Voltage: 90~264	Output Voltage: 33~40	Output Current: 1.51 ~ 1.25A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote
DTMPU51-111	Input Voltage: 90~264	Output Voltage: 40~50	Output Current: 1.25 ~ 1.00A	Output Power (W): 50	No. Outputs: S	Case: Desktop	Size: 5.75" x 2.99" x 1.69"	Get a Quote

Specification	Value
Input
Input Voltage (Nominal):	115/230
Input Voltage Range:	90~264
Input Frequency:	47-63Hz
Output
Output Voltage:	3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~40, 40~50, 3.3, 5, -5, 12, -12, 15, -15, 24, -24
Output Current:	10~8A, 8~6.66A, 7~5.25A, 5.63~4A, 4~3.46A, 3.46~2.81A, 3.12~2.38A, 2.3~1.85A, 1.85~1.51A, 1.51~1.25A, 1.25~1A, 3A, 4A, 6A, 6.5A, 6.8A, 7A, 7.8A
Output Power (Watts):	26.5, 40, 42, 45, 50
Over Voltage Protection:	112-132%
General
Efficiency:	75-88%
Isolation:	6321VDC
Environmental

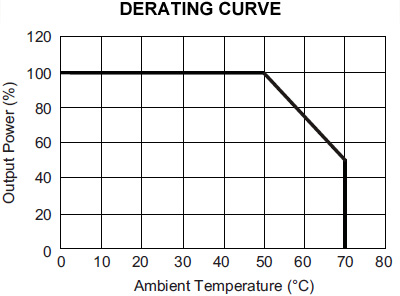

Operating Temperature:	0 to 70°C
Storage Temperature:	-40 to 85°C
Physical
Weight:	1.12~1.23 lbs
Dimensions:	5.75" x 2.99" x 1.69" (146.0 x 76.0 x 43.0 mm)
Notes & safety
Notes:	1. For single output models the output voltage is specified as a range (ex: 40~50VDC); the customer must specify what they would like the output voltage set at. 2. Optional output connectors available. Please call factory for ordering details. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications subject to change without notice.
Safety Approvals:	ANSI/AAMI ES 60601-1: 2005 (UL/cUL 3rd ed.), EN 60601-1:2006 (TUV/T-mark 3rd ed.), CE
RoHS Compliance:	Yes
TUV Efficiency Level:	EN 60601-1:2006 (TUV/T-mark 3rd Edition)
Energy Star Compliance:	Level V
