DTMPU16
The DTMPU16 series of medical AC/DC desktop power supplies provides up to 15 Watts of continuous output power. This series consists of single output models with a 90~264VAC input voltage range. All units are UL94V-1, RoHS, and Energy Star 2.0 Level V compliant. All models meet FCC Part-18 class B, CISPR-11, and EN55022 class B emission limits and have IEC-60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSAC22.2 NO.60601-1:14, EN60601-1:2006/A1:2013 safety approvals. These units also meet new CE requirements and have been 100% burn-in tested. The DTMPU16 series has three types of input inlets available: IEC-320-C14 (A Type), IEC-320-C8 (B Type), and IEC-320-C6 (C Type).
• Class I for A & C Types; Class II for B Type
• RoHS Compliant
• Energy Star 2.0, Efficiency Level V Compliant
• Single Outputs
• Output Voltages Available from 5VDC to 36VDC
• Wide Input Voltage Range: 80~275VAC, 47~63Hz
• Short Circuit, Over Voltage, and Over Load Protection
• Efficiency up to 85%
• High ESD Immunity
• IEC-320-C14, IEC-320-C8, and IEC-320-C6 Input Inlets Available
• Meets FCC Part-18 Class B, CISPR-11, and EN55022 Class B Emission Limits
• IEC-60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSAC22.2 NO.60601-1:14, EN60601-1:2006/A1:2013 Safety Approvals
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |

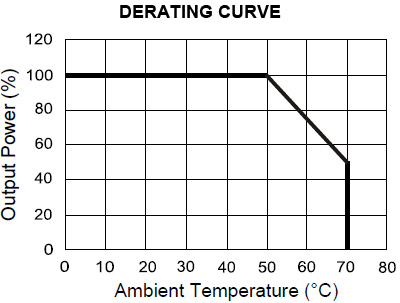

Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMPU16A-102 | Input Voltage: 90~260 | Output Voltage: 5~5.99 | Output Current: 2.60 ~ 2.16 A | Output Power (W): 13 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-103 | Input Voltage: 90~260 | Output Voltage: 6~8 | Output Current: 2.16 ~ 1.62 A | Output Power (W): 13 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-102 | Input Voltage: 90~260 | Output Voltage: 5~5.99 | Output Current: 2.60 ~ 2.16 A | Output Power (W): 13 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-103 | Input Voltage: 90~260 | Output Voltage: 6~8 | Output Current: 2.16 ~ 1.62 A | Output Power (W): 13 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-102 | Input Voltage: 90~260 | Output Voltage: 5~5.99 | Output Current: 2.60 ~ 2.16 A | Output Power (W): 13 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-103 | Input Voltage: 90~260 | Output Voltage: 6~8 | Output Current: 2.16 ~ 1.62 A | Output Power (W): 13 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-104 | Input Voltage: 90~260 | Output Voltage: 8~11 | Output Current: 1.87 ~ 1.36 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-105 | Input Voltage: 90~260 | Output Voltage: 11~13 | Output Current: 1.36 ~ 1.15 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-106 | Input Voltage: 90~260 | Output Voltage: 13~16 | Output Current: 1.15 ~ 0.93 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-107 | Input Voltage: 90~260 | Output Voltage: 16~21 | Output Current: 0.93 ~ 0.71 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-108 | Input Voltage: 90~260 | Output Voltage: 21~27 | Output Current: 0.71 ~ 0.55 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-109 | Input Voltage: 90~260 | Output Voltage: 27~33 | Output Current: 0.55 ~ 0.45 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16A-110 | Input Voltage: 90~260 | Output Voltage: 33~36 | Output Current: 0.45 ~ 0.41 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 4.11" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-104 | Input Voltage: 90~260 | Output Voltage: 8~11 | Output Current: 1.87 ~ 1.36 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-105 | Input Voltage: 90~260 | Output Voltage: 11~13 | Output Current: 1.36 ~ 1.15 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-106 | Input Voltage: 90~260 | Output Voltage: 13~16 | Output Current: 1.15 ~ 0.93 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-107 | Input Voltage: 90~260 | Output Voltage: 16~21 | Output Current: 0.93 ~ 0.71 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-108 | Input Voltage: 90~260 | Output Voltage: 21~27 | Output Current: 0.71 ~ 0.55 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-109 | Input Voltage: 90~260 | Output Voltage: 27~33 | Output Current: 0.55 ~ 0.45 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16B-110 | Input Voltage: 90~260 | Output Voltage: 33~36 | Output Current: 0.45 ~ 0.41 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-104 | Input Voltage: 90~260 | Output Voltage: 8~11 | Output Current: 1.87 ~ 1.36 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-105 | Input Voltage: 90~260 | Output Voltage: 11~13 | Output Current: 1.36 ~ 1.15 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-106 | Input Voltage: 90~260 | Output Voltage: 13~16 | Output Current: 1.15 ~ 0.93 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-107 | Input Voltage: 90~260 | Output Voltage: 16~21 | Output Current: 0.93 ~ 0.71 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-108 | Input Voltage: 90~260 | Output Voltage: 21~27 | Output Current: 0.71 ~ 0.55 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-109 | Input Voltage: 90~260 | Output Voltage: 27~33 | Output Current: 0.55 ~ 0.45 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| DTMPU16C-110 | Input Voltage: 90~260 | Output Voltage: 33~36 | Output Current: 0.45 ~ 0.41 A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.9" x 1.65" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 80~275 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5~5.99, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~36 |
| Output Current: | 0.45~0.41A, 0.55~0.45A, 0.71~0.55A, 0.93~0.71A, 1.15~0.93A, 1.36~1.15A, 1.87~1.36A, 2.16~1.62A, 2.6~2.16A |
| Output Power (Watts): | 13, 15 |
| Over Voltage Protection: | 112-132% |
| Thermal Protection: | -20 to 125°C |
| General | |
| Efficiency: | 85% Max. |
| Isolation: | 4000VAC |
| Environmental | |
| Operating Temperature: | 0 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 6oz |

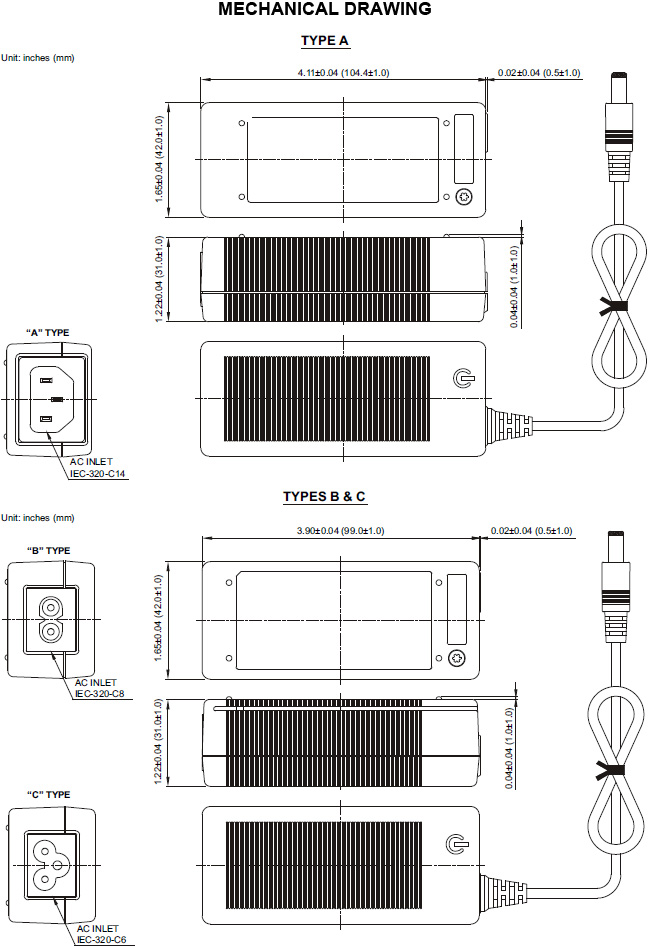

| Dimensions: | A Type: 4.11" x 1.65" x 1.22" (104.4 x 42 x 31 mm) B & C Types: 3.90" x 1.65" x 1.22" (99 x 42 x 31 mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates AC-Inlet option. “X” can be “A” for IEC-320-C14, “B” for IEC-320-C8, or “C” for IEC-320-C6. 2. Line regulation is defined by changing ±10% of input voltage from nominal line at rated load. 3. Load regulation is defined by changing ±40% of measured output load from 60% rated load. 4. Ripple & Noise is measured by using 20MHz bandwidth limited oscilloscope and terminated each output with a 0.47uF capacitor at rated load and nominal line. 5. Hold up time is measured from the end of the last charging pulse to the time which the main output drops down to low limit of main output at rated load and nominal line. 6. DTMPU16X-102~103 required to use AWG #16 4FT output cable. DTMPU16X-105~110 required to use AWG #18/4FT output cable. Regulation and efficiency will be changed by modified output cable. Optional output connectors are available-please contact factory for more information. Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | IEC-60601-1 Edition 3.1, ES60601-1:2005 (R2012), CSAC22.2 NO.60601-1:14, EN60601-1:2006/A1:2013 |
| RoHS Compliance: | Yes |
| TUV Efficiency Level: | EN 60601-1:2006 (TUV/T-mark: 3rd Edition) |
| Energy Star Compliance: | Level V |
