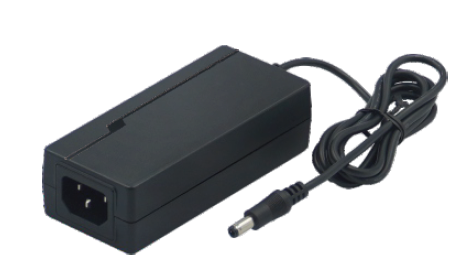

DTMHP65
The DTMHP65 series of AC/DC desktop power supplies provides 65 watts of continuous output power in a 4.35” x 1.97” x 1.22” package. This series consists of single output models ranging from 8VDC to 48VDC with a 70~264VAC input voltage range and an IEC-320-C14 AC inlet connector. Some features include high efficiency, IP22 and IP54 rating, and short circuit, over voltage, over load, and over temperature protection. All units are RoHS and Efficiency Level VI compliant and have IEC 62368-1 Edition 2.0, IEC 62368-1 Edition 3.0, EN 62368-1, UL62368-1, CAN/CSA-C22.2 NO.62368-1-14, IEC 60601-1 Edition 3.2, EN60601-1, ANSI/AAMI ES60601-1: 2005 (R2012), CSA C22.2 NO. 60601-1:14 safety approvals.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMHP65-08S | Input Voltage: 70~264 | Output Voltage: 8 | Output Current: 6.75A | Output Power (W): 54 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-09S | Input Voltage: 70~264 | Output Voltage: 9 | Output Current: 6A | Output Power (W): 54 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-12S | Input Voltage: 70~264 | Output Voltage: 12 | Output Current: 5.42A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-15S | Input Voltage: 70~264 | Output Voltage: 15 | Output Current: 4.33A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-16S | Input Voltage: 70~264 | Output Voltage: 16 | Output Current: 4.06A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-18S | Input Voltage: 70~264 | Output Voltage: 18 | Output Current: 3.61A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-19S | Input Voltage: 70~264 | Output Voltage: 19 | Output Current: 3.43A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-20S | Input Voltage: 70~264 | Output Voltage: 20 | Output Current: 3.25A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-24S | Input Voltage: 70~264 | Output Voltage: 24 | Output Current: 2.7A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-28S | Input Voltage: 70~264 | Output Voltage: 28 | Output Current: 2.32A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-30S | Input Voltage: 70~264 | Output Voltage: 30 | Output Current: 2.16A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| DTMHP65-48S | Input Voltage: 70~264 | Output Voltage: 48 | Output Current: 1.36A | Output Power (W): 65 | No. Outputs: S | Case: Desktop | Size: 4.53" x 1.97" x 1.22" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 70~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 8, 9, 12, 15, 16, 18, 19, 20, 24, 28, 30, 48 |
| Output Current: | 1.36A, 2.17A, 2.33A, 2.7A, 3.25A, 3.43A, 3.62A, 4.07A, 4.34A, 5.44A, 6A, 6.75A |
| Output Power (Watts): | 54, 65 |
| Short Circuit Protection: | Hiccup Mode, Non-Latching, Automatic Recovery |
| Over Voltage Protection: | 105-150% |
| Thermal Protection: | Hiccup Mode, Non-Latching, Automatic Recovery |
| General | |
| Efficiency: | Up to 89% |
| Environmental | |
| Operating Temperature: | -40 to 70°C |
| Storage Temperature: | -40 to 85°C |
| Physical | |
| Weight: | 7.94oz (225g) |
| Dimensions: | 4.53in x 1.97in x 1.22in (115mm x 50mm x 31mm) |
| Notes & safety | |
| Notes: | 1. This product is Listed to applicable standards and requirements by UL. 2. The EMC test requires the integration of the switching power supply with the load of an end system. Consequently, variations in the in the application or assembly of the end system will influence the test results. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | IEC 62368-1 Edition 2.0, IEC 62368-1 Edition 3.0, EN62368-1, UL62368-1,CAN/CSA-C22.2 No. 62368-1-14, IEC 60601-1 Edition 3.2. EN60601-1, ANSI/AAMI ES60601-1:2005 (R2012), CSA C22.2 No. 60601-1:14 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level VI |
