DTMED50

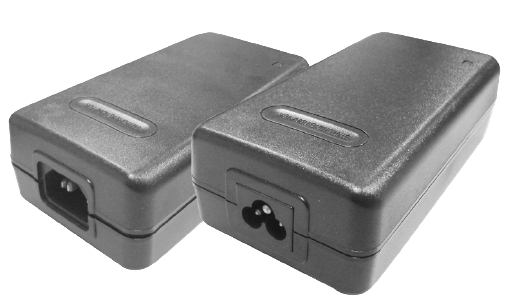

The DTMED50 series of AC/DC medical desktop power supplies offers up to 50 watts of output power in a 5.75” x 2.97” x 1.69” compact package. This series has a universal input voltage range of 100~240VAC and single output models. Each model in this series has over voltage, over current, and over temperature protection as well as risk analysis report. C14 or C6 AC inlets are available as well as optional output connectors. This series has UL: ES60601-1, CSA: C22.2 NO. 60601-1, CB: IEC 60601-1, and EN: EN60601-1 safety approvals.
X: “A” for C14 inlet or “B” for C6 inlet
DTMED50A-0= 3~5VDC Output Model with C14 inlet.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMED50X-0 | Input Voltage: 100~240 | Output Voltage: 3~5 | Output Current: 7.50A | Output Power (W): 37.5 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-1 | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 7.50A | Output Power (W): 37.5 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-1-1 | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 6.66A | Output Power (W): 40 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-2 | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 5.62A | Output Power (W): 45 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-3 | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 4.54A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-4 | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 3.84A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-5 | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 3.12A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-6 | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 2.38A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-7 | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 1.85A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| DTMED50X-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 1.51A | Output Power (W): 50 | No. Outputs: S | Case: Desktop | Size: 5.75" x 2.97" x 1.69" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50 to 60Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48 |
| Output Current: | 1.51A, 1.85A, 2.38A, 3.12A, 3.84A, 4.54A, 5.62A, 6.66A, 7.50A |
| Output Power (Watts): | 37.5, 40, 45, 50 |
| Over Voltage Protection: | 112~132% |
| Thermal Protection: | 130ºC |
| General | |
| Efficiency: | Up to 80% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 18.70~20.46oz (530~580g) |

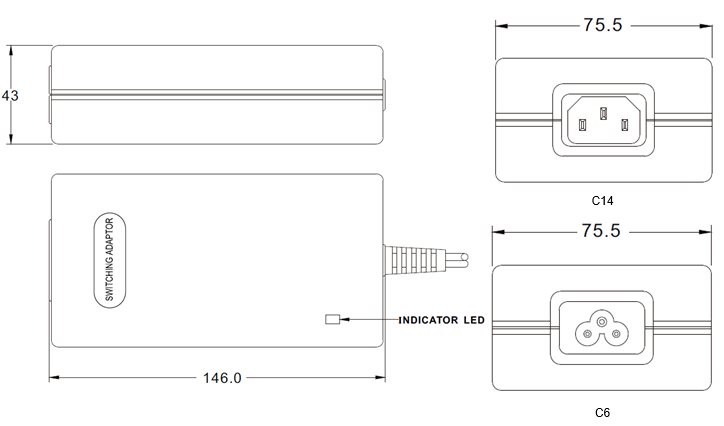

| Dimensions: | 5.75in x 2.97in x 1.69in (146mm x 75.5mm x 43mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates AC inlet. “X” can either be “A” for C14 inlet or “B” for C6 inlet. 2. Optional output connectors are available. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL: ES60601-1, CSA: C22 NO. 60601-1, CB: IEC 60601-1, EN: EN60601-1 |
