DTMED30

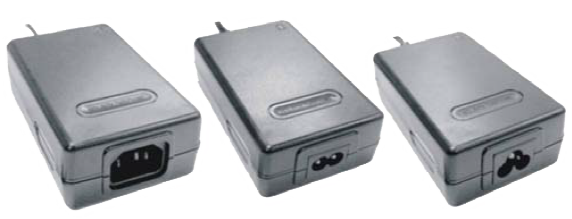

The DTMED30 series of AC/DC medical desktop power supplies offers up to 30 watts of output power in a 4.21” x 2.64” x 1.42” compact package. This series consists of single output models with a universal input voltage of 100~240VAC and different AC inlets to choose from. IEC-320-C14, IEC-320-C8, IEC-320-C6, and US or EU mains cord input are all available options for this series. Each model in this series has over voltage, over current, and over temperature protection as well has 60601-1 3rd edition safety approvals.
X: “A” for IEC-320-C14, “B” for IEC-320-C8, “C” for IEC-320-C6, or “D” for Mains Cord Input.
Y: “U” for American Mains Cord Type, or “E” for European Mains Cord Type. “Y” will only change if “X” is “D”
DTMED30A-0Y= 3~5VDC Output Model with IEC-320-C14 Inlet
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTMED30X-0Y | Input Voltage: 100~240 | Output Voltage: 3~5 | Output Current: 5A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-1Y | Input Voltage: 100~240 | Output Voltage: 5~6 | Output Current: 5.00A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-1-1Y | Input Voltage: 100~240 | Output Voltage: 6~8 | Output Current: 4.17A | Output Power (W): 25 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-2Y | Input Voltage: 100~240 | Output Voltage: 8~11 | Output Current: 3.75A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-3Y | Input Voltage: 100~240 | Output Voltage: 11~13 | Output Current: 2.73A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-4Y | Input Voltage: 100~240 | Output Voltage: 13~16 | Output Current: 2.30A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-5Y | Input Voltage: 100~240 | Output Voltage: 16~21 | Output Current: 1.88A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-6Y | Input Voltage: 100~240 | Output Voltage: 21~27 | Output Current: 1.43A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-7Y | Input Voltage: 100~240 | Output Voltage: 27~33 | Output Current: 1.11A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| DTMED30X-8 | Input Voltage: 100~240 | Output Voltage: 33~48 | Output Current: 0.90A | Output Power (W): 30 | No. Outputs: S | Case: Desktop | Size: 4.21" x 2.64" x 1.42" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 100~240 |
| Input Frequency: | 50 to 60Hz |
| Output | |
| Output Voltage: | 3~5, 5~6, 6~8, 8~11, 11~13, 13~16, 16~21, 21~27, 27~33, 33~48 |
| Output Current: | 0.90A, 1.11A, 1.43A, 1.88A, 2.30A, 2.73A, 3.75A, 4.17A, 5.00A |
| Output Power (Watts): | 25, 30 |
| Over Voltage Protection: | Yes |
| Thermal Protection: | 130ºC |
| General | |
| Efficiency: | Up to 84% |
| Environmental | |
| Operating Temperature: | 0 to 40ºC |
| Storage Temperature: | -40 to 85ºC |
| Physical | |
| Weight: | 10.58~12.35oz (300~350g) |

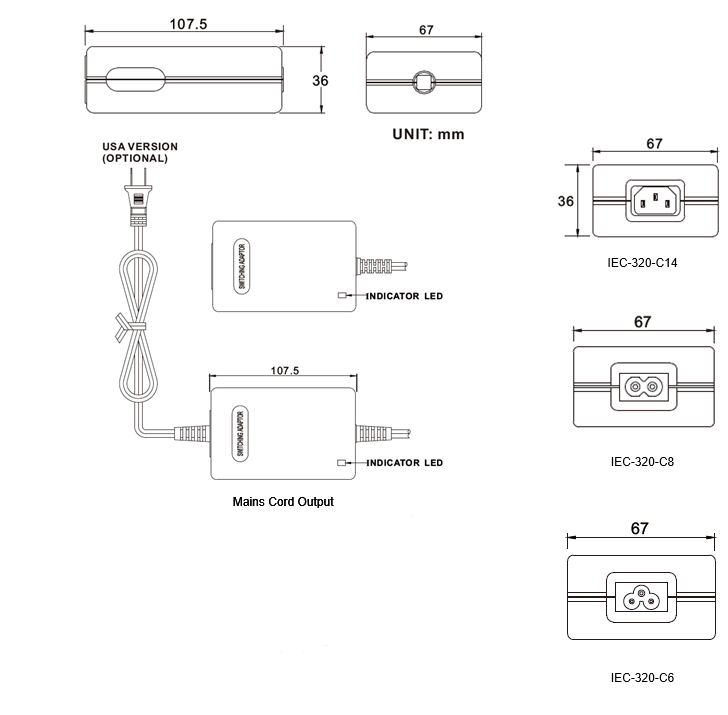

| Dimensions: | 4.21in x 2.64in x 1.42in (107mm x 67mm x 36mm) |
| Notes & safety | |
| Notes: | 1. “X” in model number indicates the AC Inlet. “X” can either be “A” for IEC-320-C14, “B” for IEC-320-C8, “C” for IEc-320-C6, or “D” for Mains Cord Input. “Y” in input model indicates Mains Cord Type. “Y” will either be “U” for American plug type, or “E” for European plug type. “Y” will only change if “X” is “D”. 2. Optional output connectors available. 3. This product is Listed to applicable standards and requirements by UL. *Due to advances in technology, specifications subject to change without notice. |
| Safety Approvals: | UL: ES60601-1, CSA: C22.2 NO. 60601-1, CB: IEC 60601-1, EN: EN60601-1 |
