DTM24
The DTM24 series offers up to 24 watts of output power in a single output desktop power supply. This series has UL60601-1, EN60601-1, and IEC 60601-1 medical safety approvals. All units are short circuit, over voltage, and over load protected. All models have an IEC-320-C8 AC inlet and output voltages range from 5 to 48VDC. All units meet CEC, ERP, EISA, and Energy Star Level V requirements as well as UL 1310 NEC Class 2 requirements. These supplies are RoHS compliant and have been 100% burn-in and Hi-pot tested.
| Model Number |
Input Voltage |
Output Voltage |
Output Current |
Output Power (W) |
No. Outputs |
Case | Size | |
|---|---|---|---|---|---|---|---|---|
| DTM15A1Y05K0 | Input Voltage: 90~264 | Output Voltage: 5 | Output Current: 3A | Output Power (W): 15 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| DTM24A1Y09K0 | Input Voltage: 90~264 | Output Voltage: 9 | Output Current: 2.67A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| DTM24A1Y12K0 | Input Voltage: 90~264 | Output Voltage: 12 | Output Current: 2A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| DTM24A1Y16K0 | Input Voltage: 90~264 | Output Voltage: 16 | Output Current: 1.5A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| DTM24A1Y18K0 | Input Voltage: 90~264 | Output Voltage: 18 | Output Current: 1.34A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| DTM24A1Y24K0 | Input Voltage: 90~264 | Output Voltage: 24 | Output Current: 1A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| DTM24A1Y36K0 | Input Voltage: 90~264 | Output Voltage: 36 | Output Current: 0.67A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| DTM24A1Y48K0 | Input Voltage: 90~264 | Output Voltage: 48 | Output Current: 0.5A | Output Power (W): 24 | No. Outputs: S | Case: Desktop | Size: 3.07" x 1.97" x 1.38" | Get a Quote |
| Specification | Value |
|---|---|
| Input | |
| Input Voltage (Nominal): | 115/230 |
| Input Voltage Range: | 90~264 |
| Input Frequency: | 47-63Hz |
| Output | |
| Output Voltage: | 5, 9, 12, 16, 18, 24, 36, 48 |
| Output Current: | 3A, 2.67A, 2A, 1.5A, 1.34A, 1A, 0.67A, 0.5A |
| Output Power (Watts): | 15, 24 |
| Short Circuit Protection: | Automatic Recovery |
| Over Voltage Protection: | Latch, AC Recycle |
| General | |
| Environmental | |
| Operating Temperature: | -20 to 40°C |
| Storage Temperature: | -20 to 85°C |
| Physical | |
| Weight: | 4.62oz (131g) |

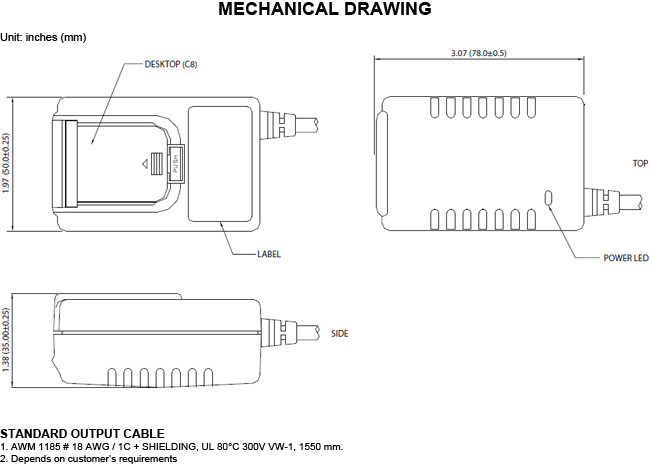

| Dimensions: | 3.07" x 1.97" x 1.38" (78.0 x 50.0 x 35.0 mm) |
| Notes & safety | |
| Notes: | 1. All models have an IEC-320-C8 AC inlet. 2. Ripple and Noise is measured at 20MHz bandwidth with a tantalum 10µF in parallel with a 0.1µF ceramic capacitor. 3. This product is Listed to applicable standards and requirements by UL. Due to advances in technology, specifications are subject to change without notice. |
| Safety Approvals: | UL 60601-1, CSA-C22.2 NO.601.1-M90, NEMKO EN60601-1, CB IEC60601-1 |
| RoHS Compliance: | Yes |
| Energy Star Compliance: | Level V |
